Cigarette Lighter: Service and Repair

WM 906219 Removing and installing cigarette lighter

Information

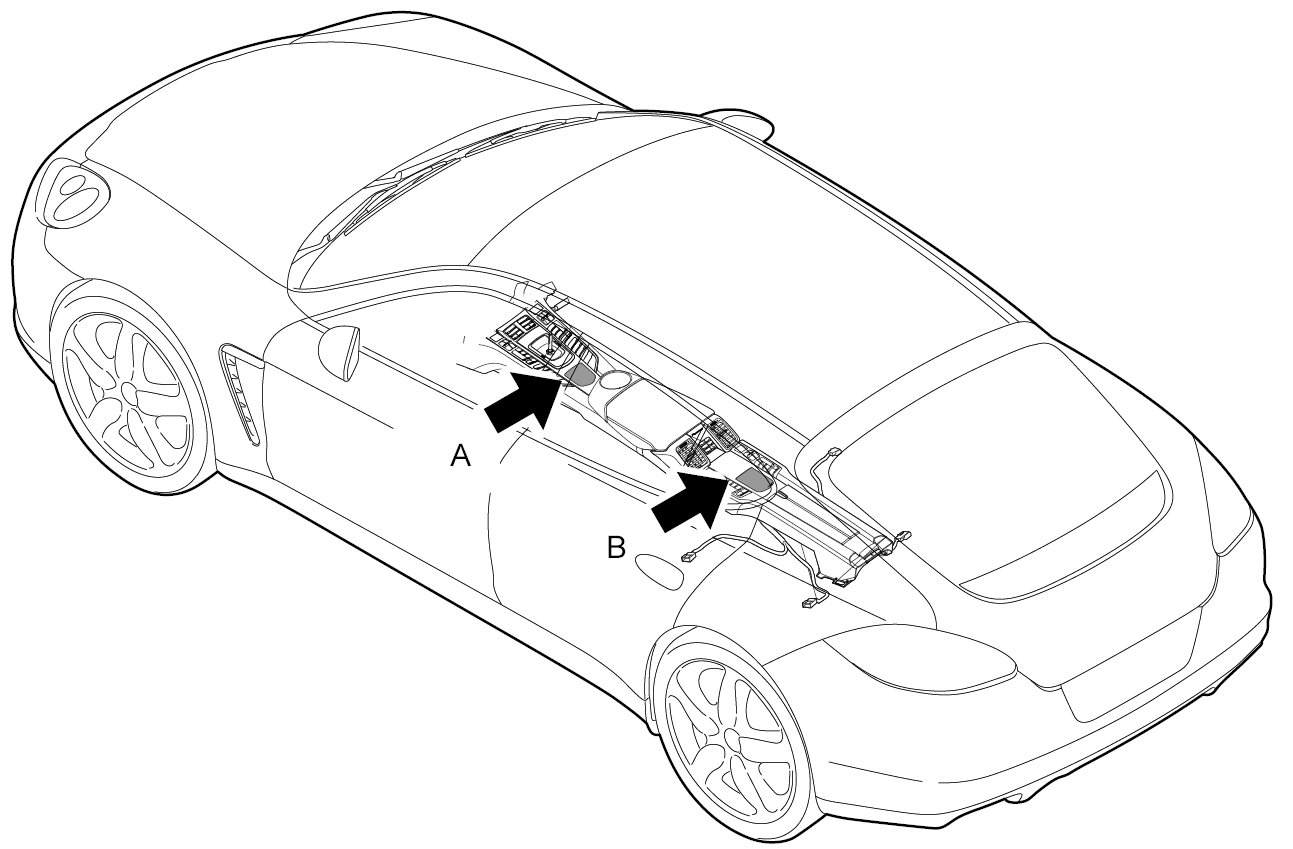

Installation position of cigarette lighter





Installation position of cigarette lighter





Preliminary work

Preliminary work for front cigarette lighter

1. Remove cover on lower part of front centre console. -> 681919 Removing and installing centre console cover - section on "Removing" Service and Repair

Preliminary work for rear cigarette lighter

1. Remove rear centre console. -> 682519 Removing and installing rear centre console - section on "Removing" 682519 Removing and installing rear centre console

Removing cigarette lighter

Removing front cigarette lighter

1. Remove ashtray insert.





Removing ashtray insert

2. Disengage the cigarette lighter -1- from the two catches using a screwdriver.





Disengaging cigarette lighter

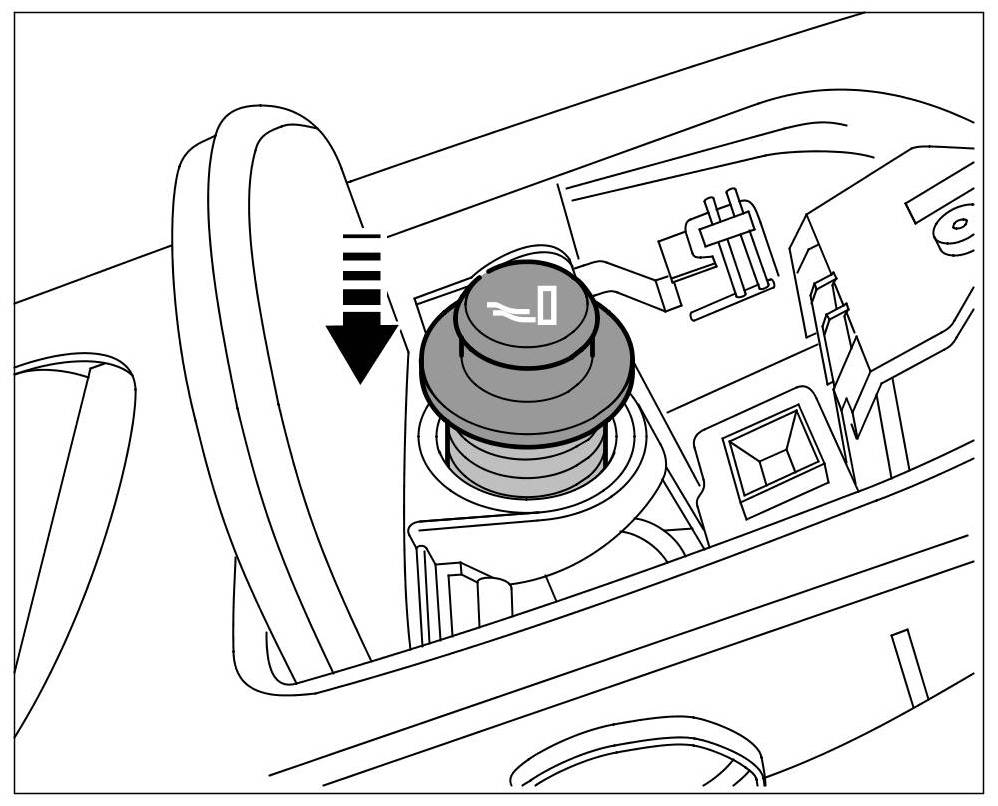

3. Press on the cigarette lighter to remove it from the holder.





Removing cigarette lighter

Removing rear cigarette lighter

1. Pull connector off the cigarette lighter.





Disconnecting connector

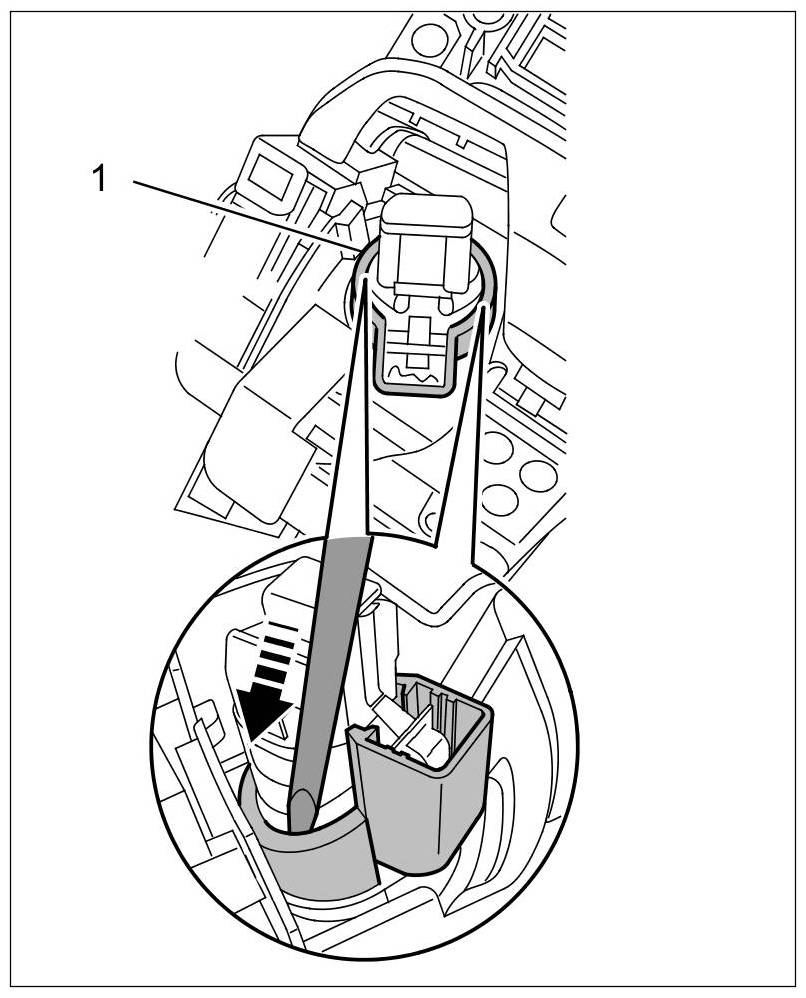

2. Disengage the cigarette lighter -1- from the two catches using a screwdriver.





Disengaging cigarette lighter

3. Press on the cigarette lighter to remove it from the holder.





Removing cigarette lighter

Installing cigarette lighter

Installing front cigarette lighter

1. Push cigarette lighter into the holder until it engages securely.





Inserting cigarette lighter

2. Fit ashtray insert.





Fitting ashtray insert

Installing rear cigarette lighter

1. Push cigarette lighter into the holder until it engages securely.





Inserting cigarette lighter

2. Plug in connector. Check that it is seated securely.





Plugging in connector

Subsequent work

Subsequent work for front cigarette lighter

1. Install cover on lower part of front centre console. -> 681919 Removing and installing centre console cover - section on "Installing" Service and Repair

Subsequent work for rear cigarette lighter

1. Install rear centre console. -> 682519 Removing and installing rear centre console - section on "Installing" 682519 Removing and installing rear centre console
