856519 Removing and Installing Ventilation Cover

WM 856519 Removing and installing ventilation cover

Preliminary work

Remove rear apron. -> 635519 Removing and installing rear apron - section on "Removing"

Removing ventilation cover

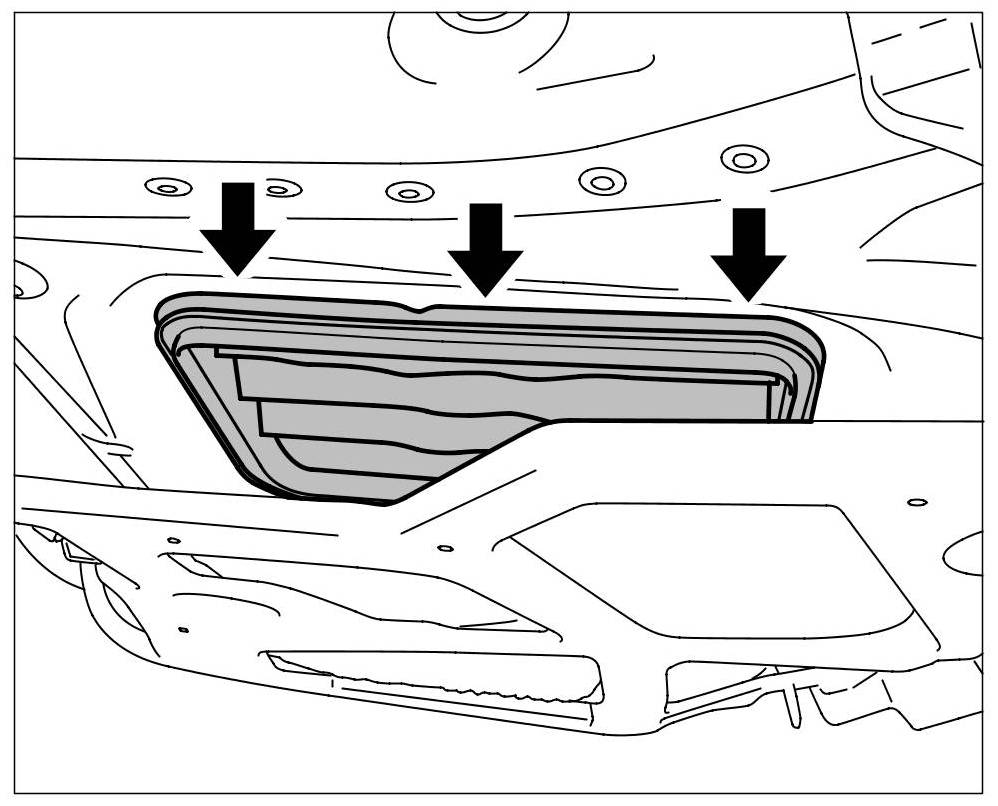

Installation position of ventilation cover

1. Insert a plastic wedge between the vehicle body and the ventilation cover.





Inserting plastic wedge

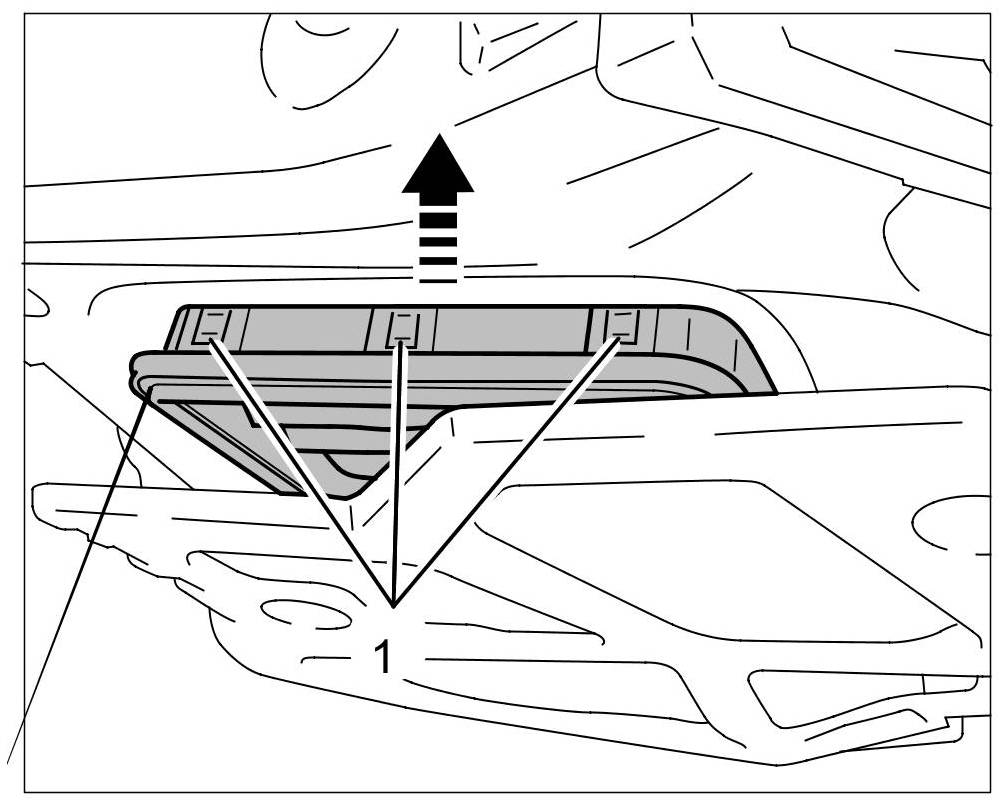

2. Press down the top three locking lugs -1- and press the top edge of the ventilation cover outwards.





Pressing ventilation cover outwards

3. Lift ventilation cover up and out.

Installing ventilation cover

1. Insert ventilation cover from above -arrow A- and position it.





Positioning ventilation cover

2. Press in the ventilation cover -arrow B- until the locking lugs engage securely.

Subsequent work

Install the rear apron. -> 635519 Removing and installing rear apron - section on "Installing"
