856019 Air vent at B-pillar

WM 856019 Air vent at B-pillar

Removing air vent at B-pillar

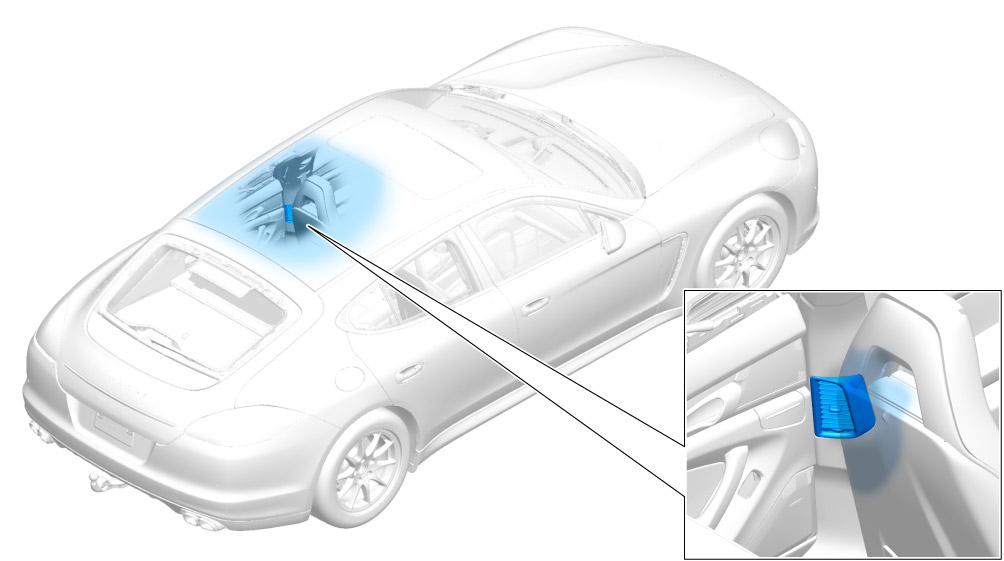

Installation position of air vent at B-pillar

1. Unclip air vent -A- and remove it -B-.

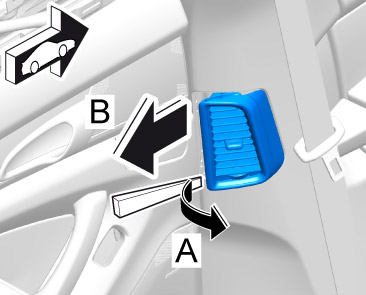

Unclipping air vent

2. Disconnect plug connection.

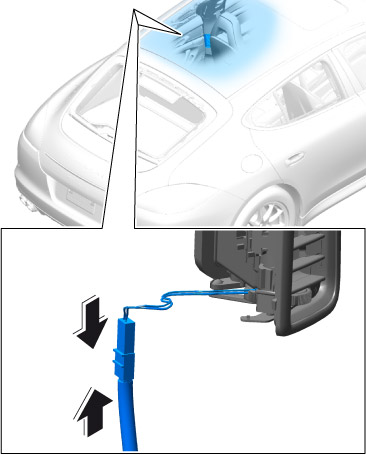

Disconnecting plug connection

Installing air vent at B-pillar

1. Connect plug connection.

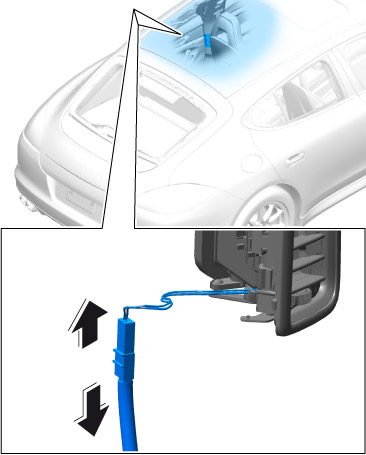

Connecting plug connection

2. Check that the plug connection is seated securely.
3. Fit air vent at the ventilation duct and clip it in.

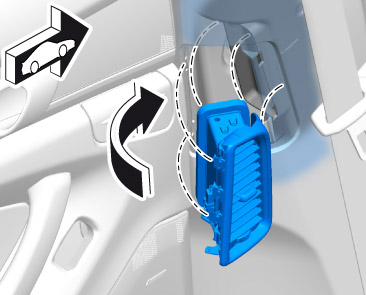

Clipping in air vent
