Removing and Installing Suction Fan For Backrest Surface

Removing And Installing Suction Fan For Backrest Surface

Information

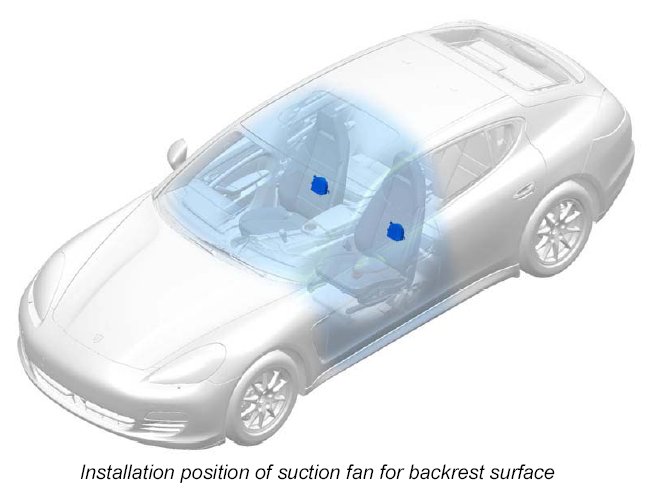

Installation position of suction fan for backrest surface







Preliminary work

1. Remove padding for front middle backrest.

Removing suction fan for backrest surface







1. Cut tie-wrap -1- using side cutters and remove insulation -2- around the plug connection for the suction fan.







2. Unplug plug connection for suction fan -1- ( -arrow- ).

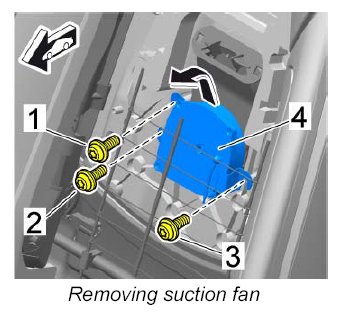

3. Remove the three fastening screws -1, 2, 3- , guide the suction fan -4- upwards -arrow- and remove it.

Installing suction fan for backrest surface







1. Guide the suction fan -4- in from above -arrow- and fit the three fastening screws -1, 2, 3- .

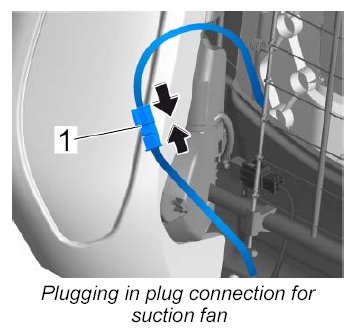

2. Plug in plug connection for suction fan -1- ( -arrows- ).

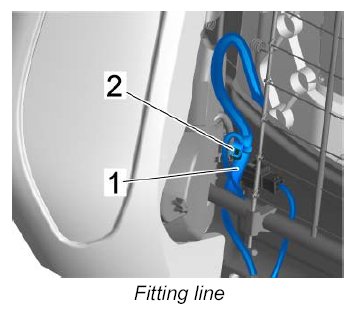

3. Fit insulation -1- around the plug connection for the suction fan and secure the line with -2- tie-wraps.

Subsequent work

1. Fit padding for front middle backrest.
