Rear Shelf: Service and Repair

Removing And Installing Rear Panel

Preliminary work

1. Remove rear apron,

Removing rear panel

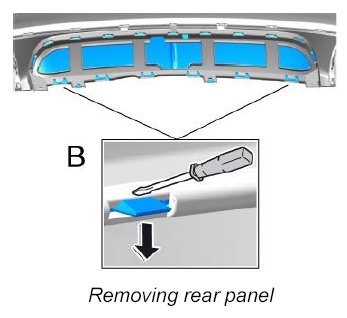

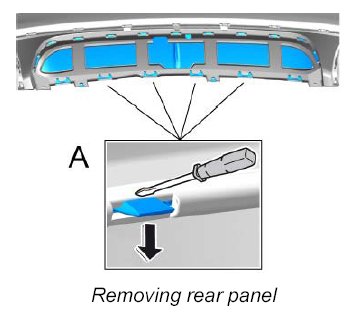

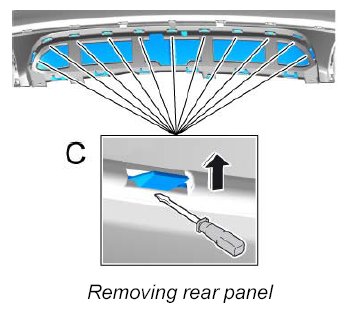

1. Release locking lugs on the rear panel in the sequence -A- , -B- and -C- .
2. Remove rear panel.

Installing rear panel

1. Fit the rear panel.










2. Insert guide tabs.
3. Press rear panel on until you feel the locking lugs engage.

Subsequent work

1. Install rear apron.
