Removing and Installing Control Unit For Garage Door Opener

Removing And Installing Control Unit For Garage Door Opener

Preliminary work
1. Remove front apron.

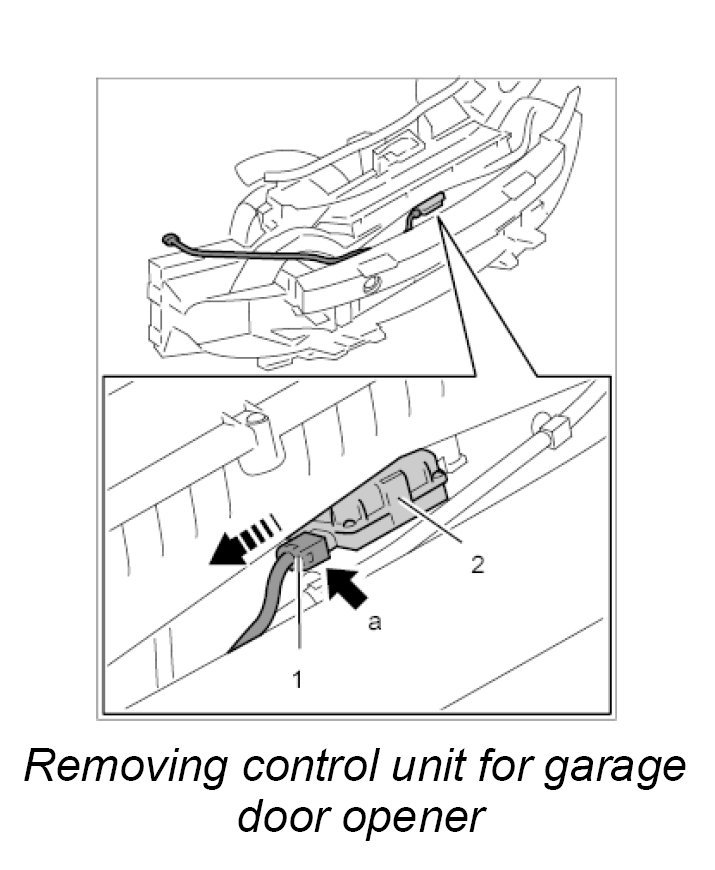

Removing control unit for garage door opener

1. Release and pull off electric plug connection -1- ( -a- ).







2. Open clip -2- and remove control unit for garage door opener out of the support.

Installing control unit for garage door opener

1. Insert control unit for garage door opener into the support and press the clip -2- together to secure it.







2. Push in the electric plug connection -1- until the connector engages securely.

Subsequent work
1. Install front apron.

INFORMATION: If the garage door opener was replaced, the remote controls (for the customer s garage door drives, for example) must be re-taught.
