Headlamp Washer Motor Relay: Service and Repair

WM 927519 Removing and installing relay for headlight washing system

Preliminary work

Remove trim under instrument panel. -> 701919 Removing and installing trim under instrument panel - section on "removing" 701919 Removing and installing trim under dashboard

Removing relay for headlight washing system

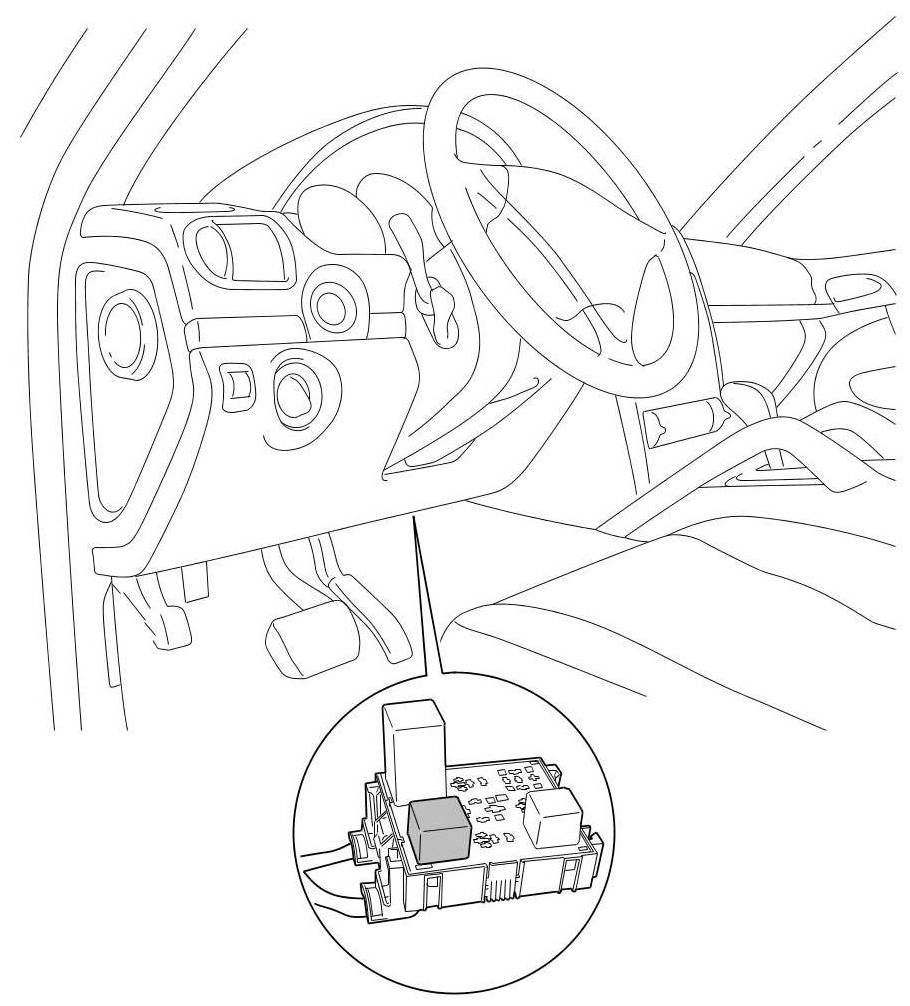

Overview of relay for headlight washer system

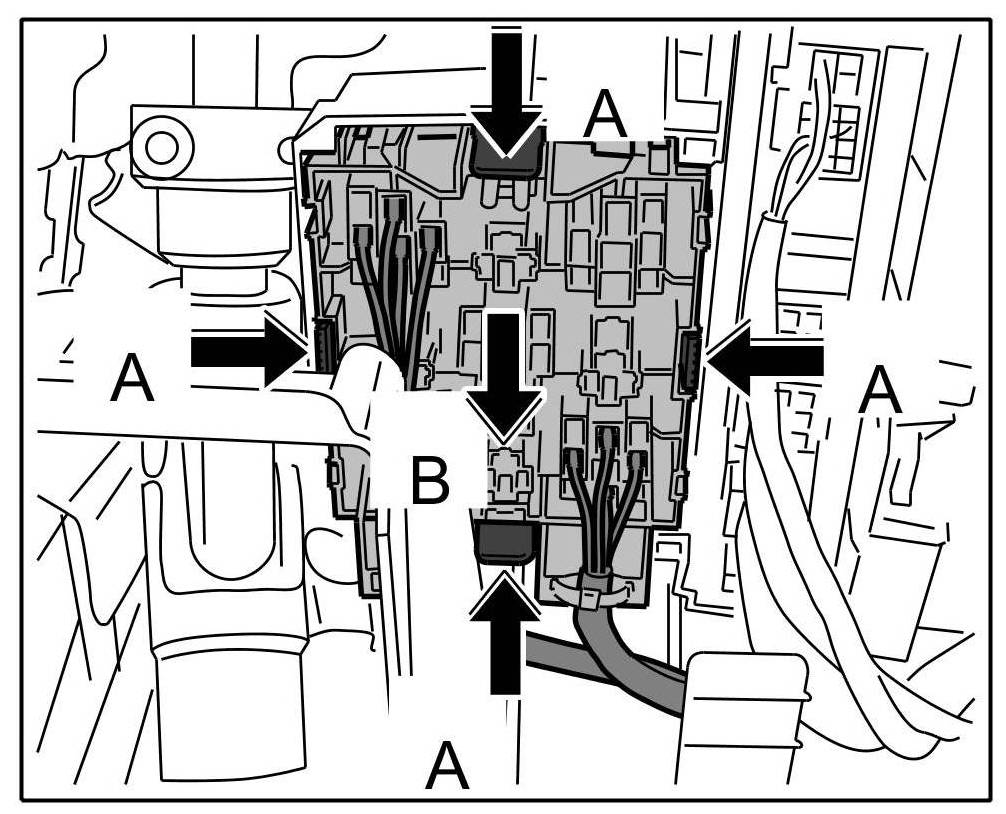

1. Release the relay carrier -arrows A- and pull it down and out -arrow B-.





Releasing relay carrier

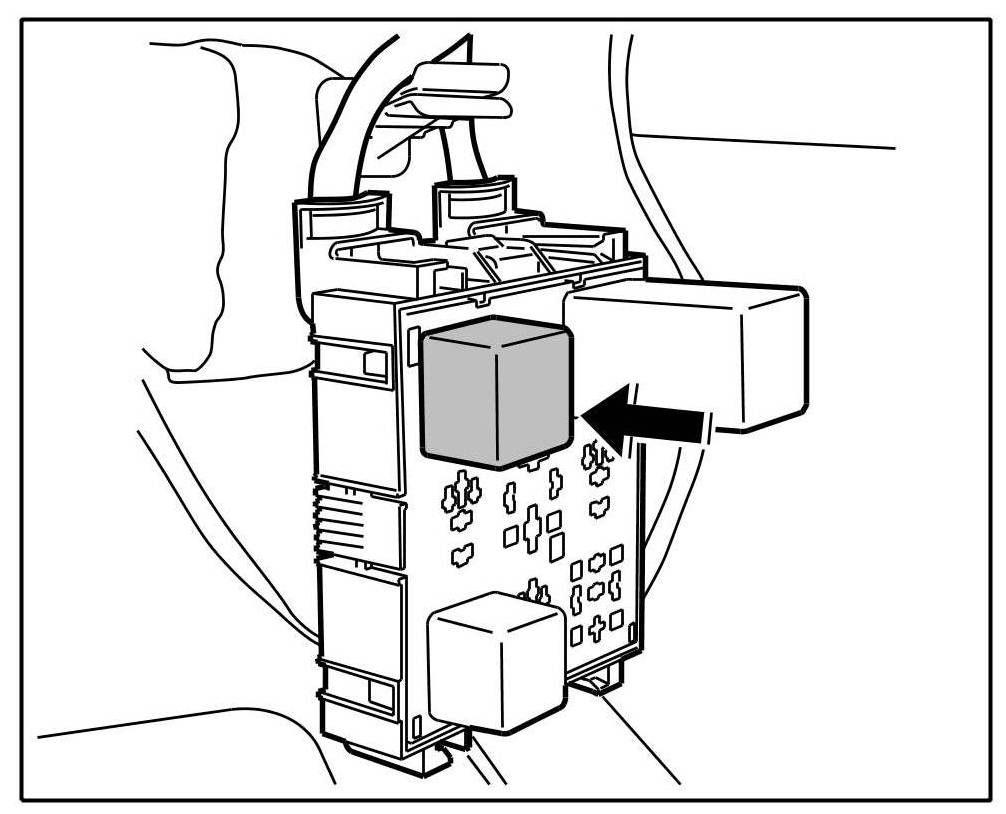

2. Pull the relay out of the relay carrier -arrow-.





Pulling relay out of relay carrier

Installing relay for headlight washing system

1. Place relay on relay carrier -arrow-.





Placing relay on relay carrier

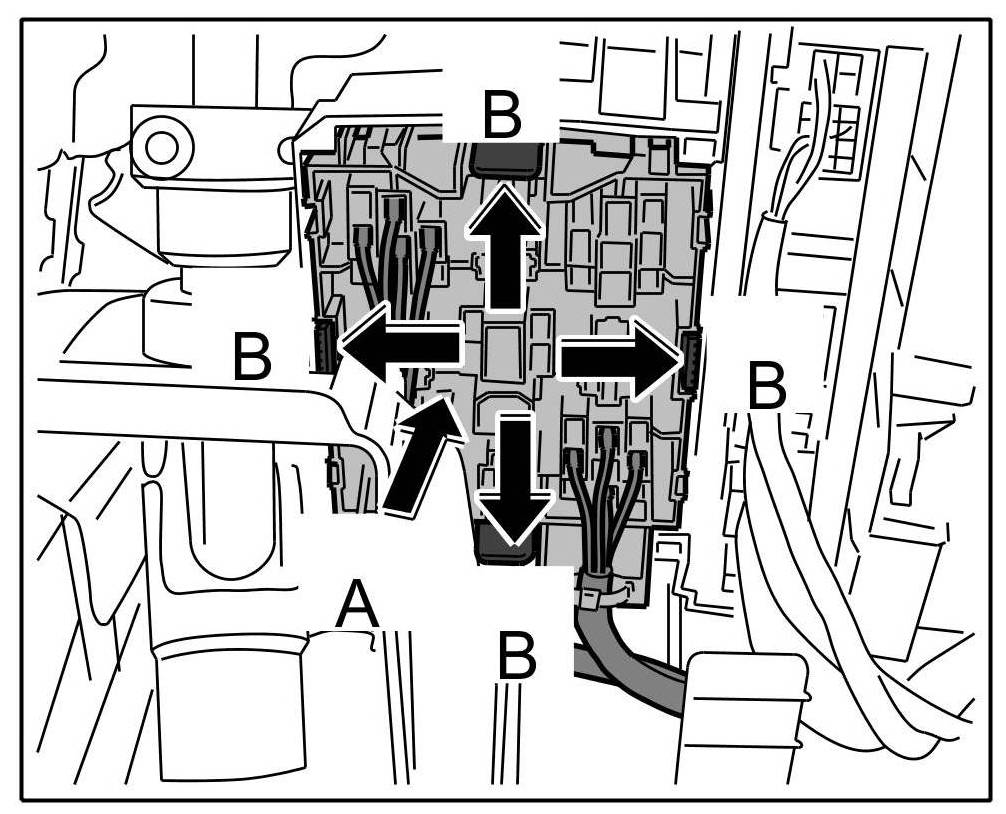

2. Press relay carrier into the holder -arrow A- until the locking lugs are felt to engage -arrows B-.





Pressing relay carrier into the holder

Subsequent work

Install trim under instrument panel. -> 701919 Removing and installing trim under instrument panel - section on "installing" 701919 Removing and installing trim under dashboard
