Relay Support/ Fuses Box - Sheet 26

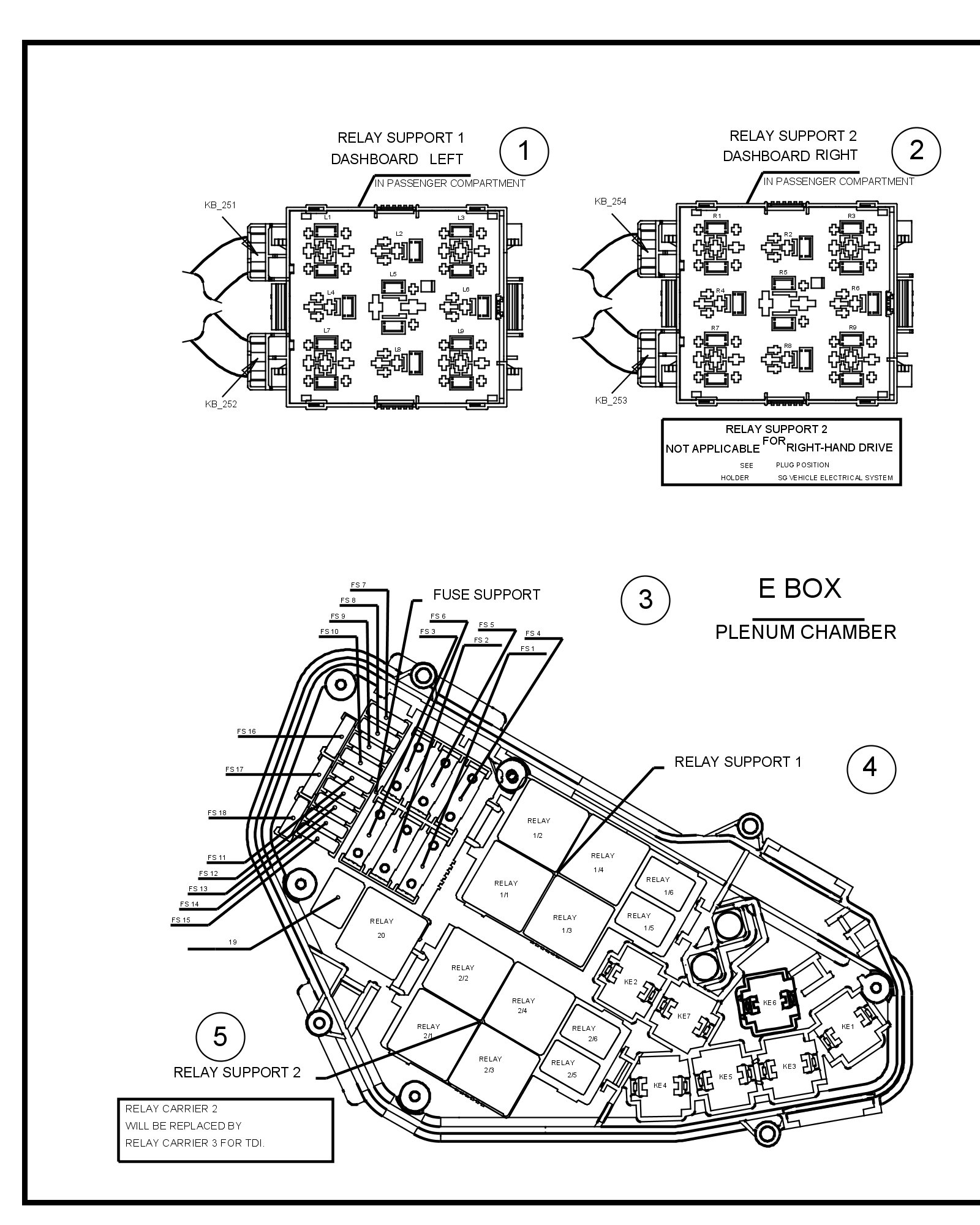

Relay Support/Fuse Box - Sheet 26 (Part 1):

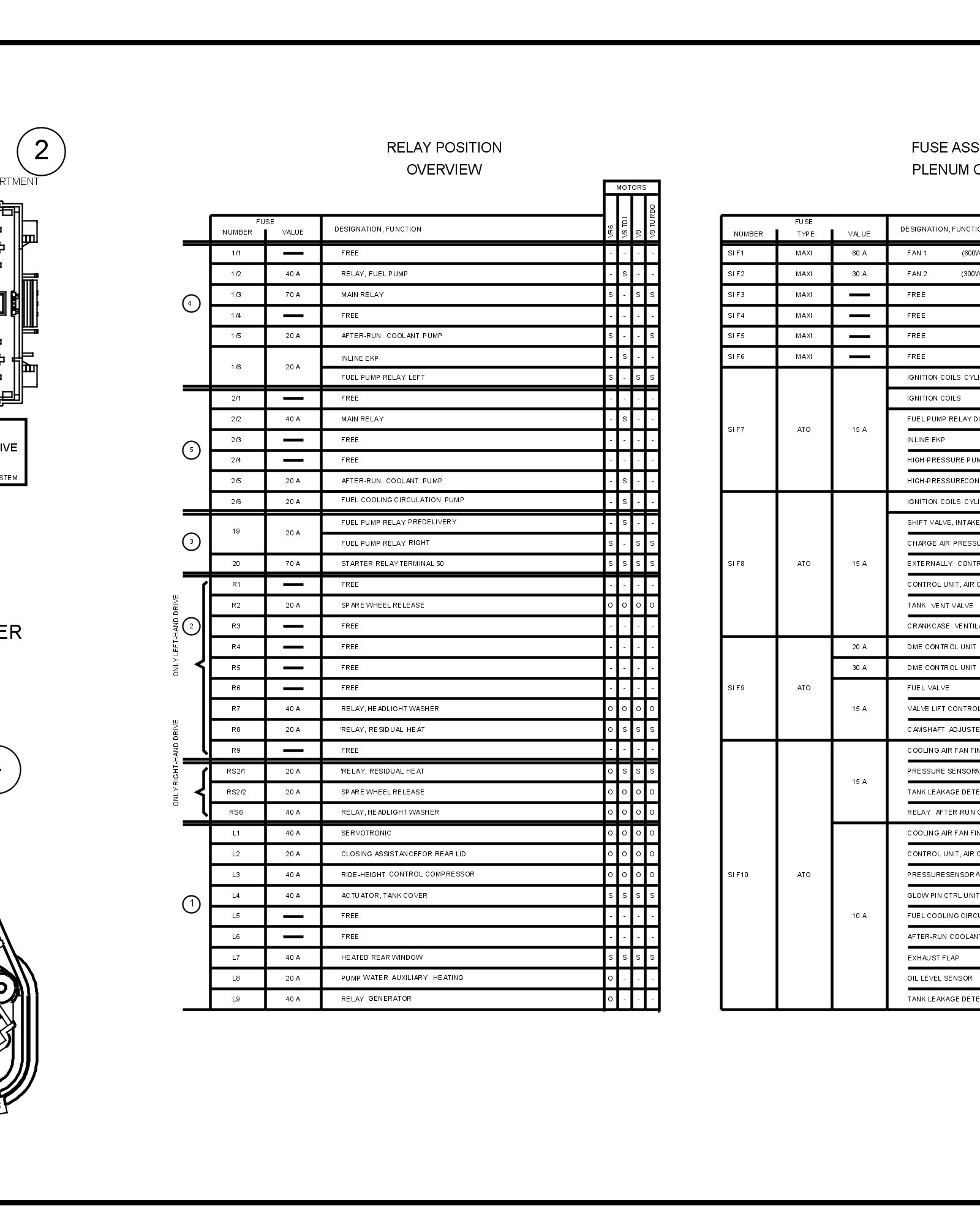

Relay Support/Fuse Box - Sheet 26 (Part 2):

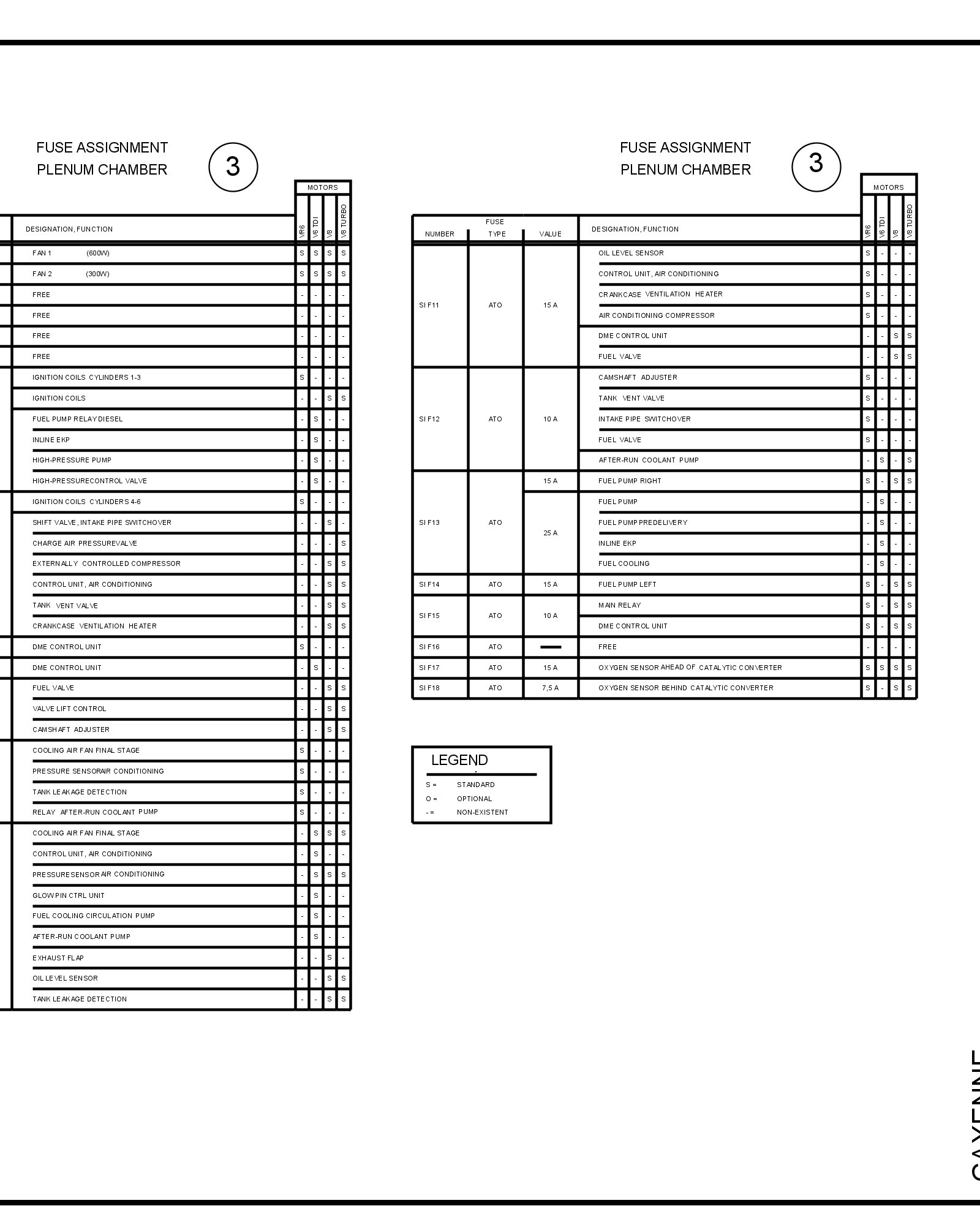

Relay Support/Fuse Box - Sheet 26 (Part 3):



Relay Support/Fuse Box - Sheet 26 (Part 4):
