Clutch Disc: Testing and Inspection

WM 305601 Checking clutch for wear

Tools






Preliminary work

Preliminary work for clutch wear

1. Remove transmission. -> 343519 Removing and installing transmission - section on "removing" 343519 Removing and installing transmission

Checking clutch for wear

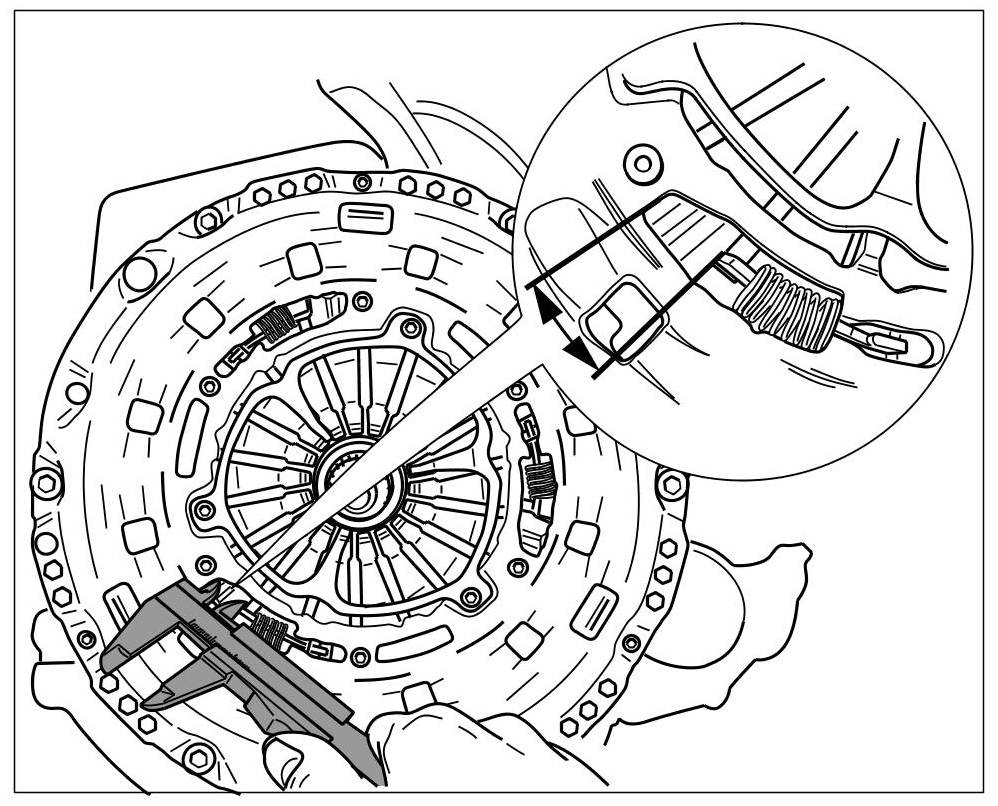

1. Measure clutch wear at one of the three clutch adjusters. To do this, measure using material 00000 between adjuster and clutch pressure plate -arrow, inset-.





Measuring clutch wear

- Measurement when new: approximately 16 mm.
- Replace the clutch if the measured value is less than or equal to 8 mm.

Clutch is OK:
2. Install transmission. -> 343519 Removing and installing transmission - section on "Installing" 343519 Removing and installing transmission

Clutch is defective:
3. Replace clutch. -> 305019 Removing and installing clutch Service and Repair
