877819 Removing and installing blower regulator

WM 877819 Removing and installing blower regulator

Preliminary work

Remove glove compartment. -> 681519 Removing and installing glove compartment - section on "removing" Service and Repair

Removing blower regulator

CAUTION

Danger of damage and injury.

-> Remove ignition key.
-> First pull off the plug contacts on the switch before the fan control is removed.

Information

- The fan control is located in the air-conditioning unit beside the fan.

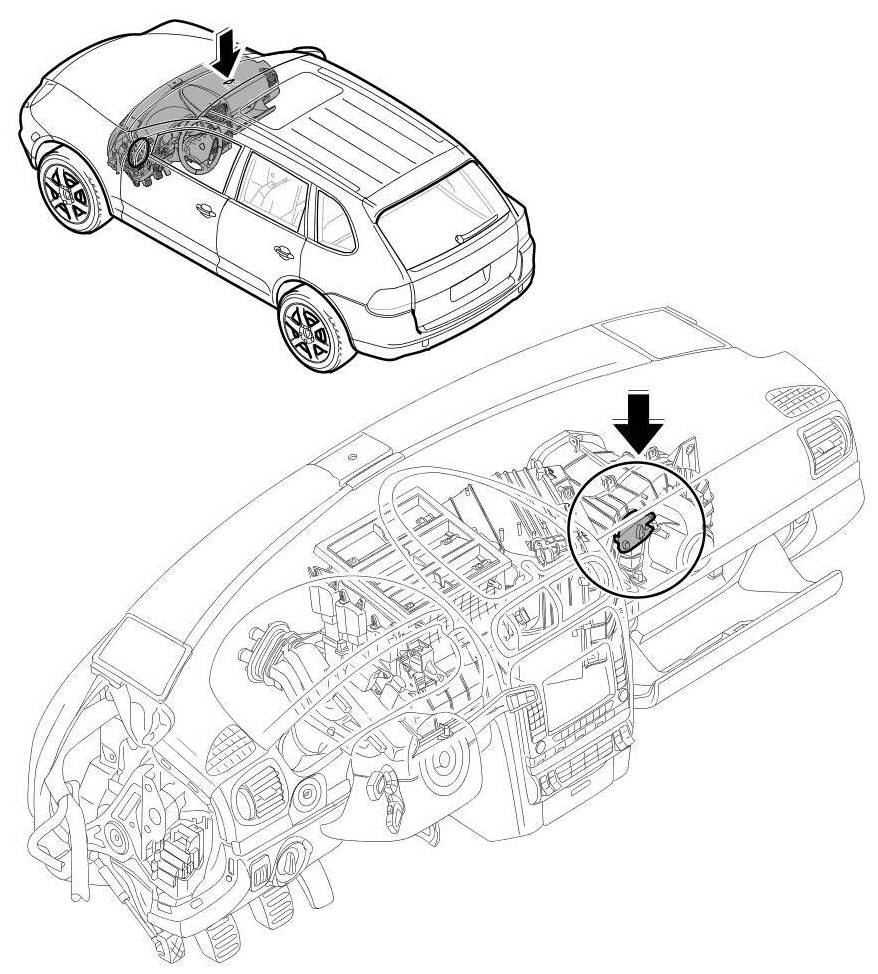

Overview of fan control

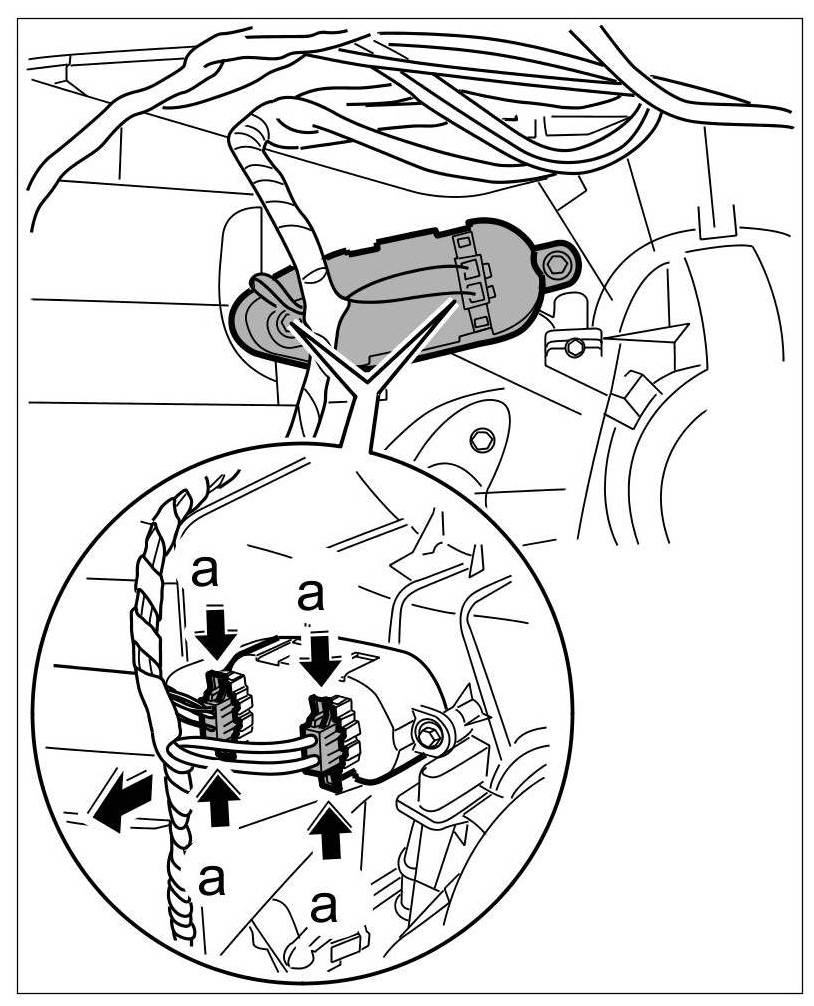

1. Press the latch of both connectors -Arrows a- and remove the connectors from fan control.

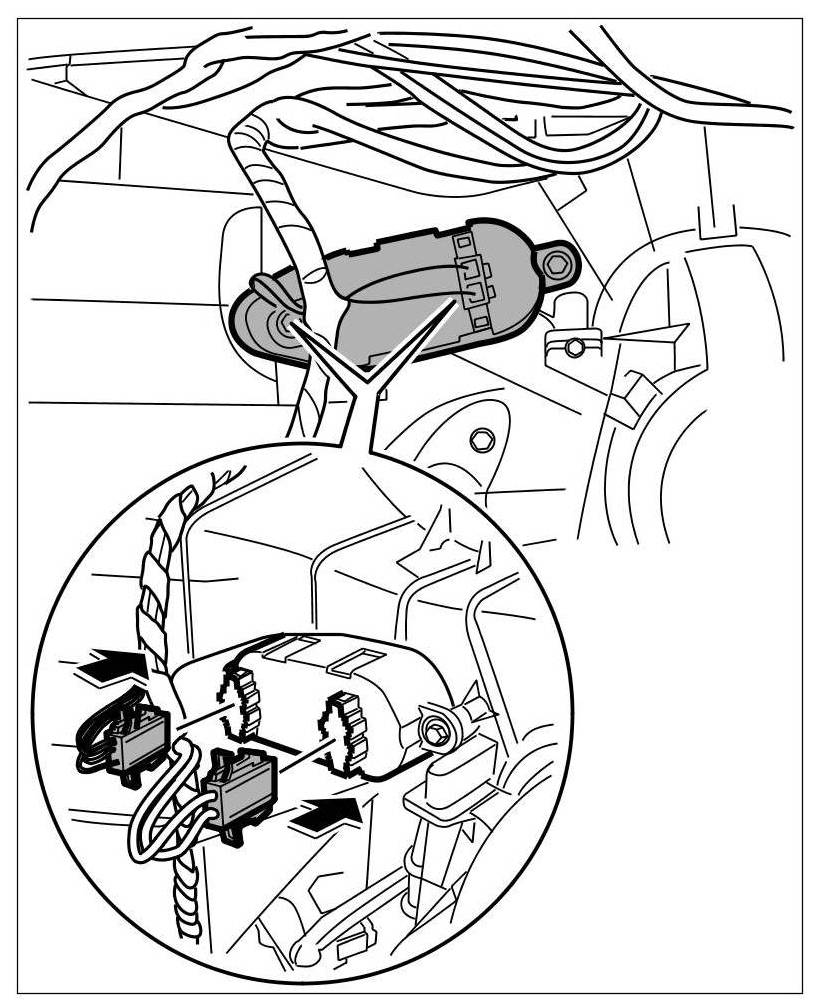

Compressing and pulling off connectors

2. Unscrew the two fastening screws -2- and remove the fan control -1-.

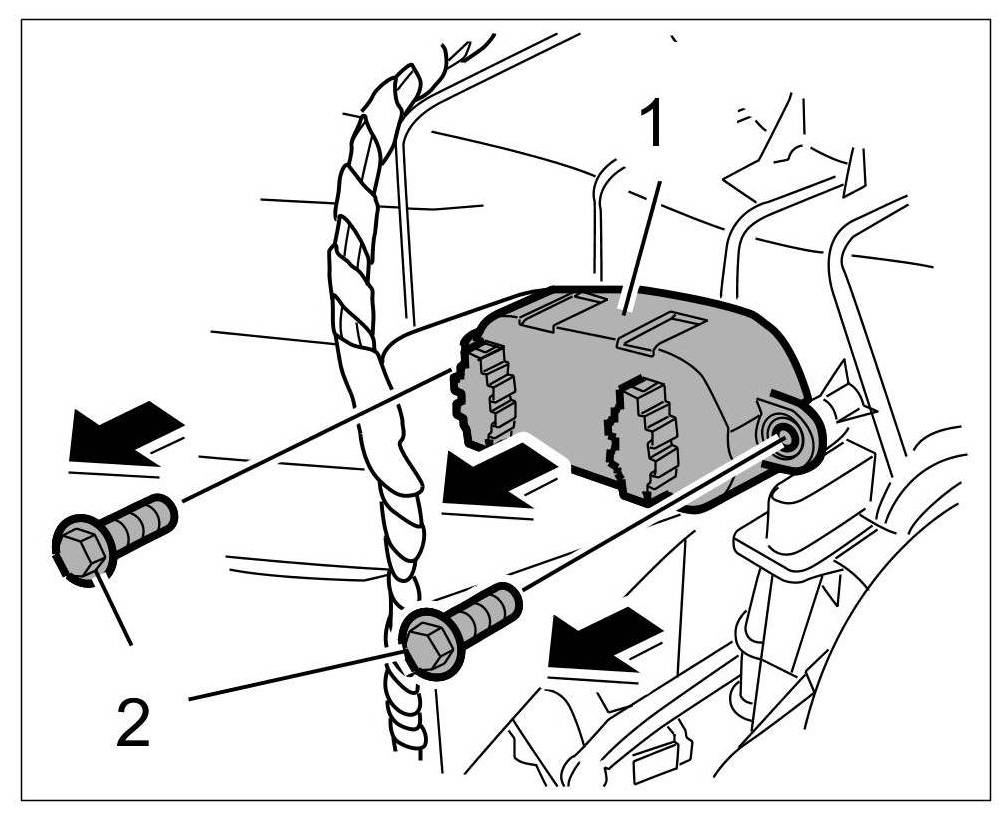

Removing fan control

Installing blower regulator

1. Insert fan control -1- into the air-conditioning unit and screw down with the two fastening screw -2-.

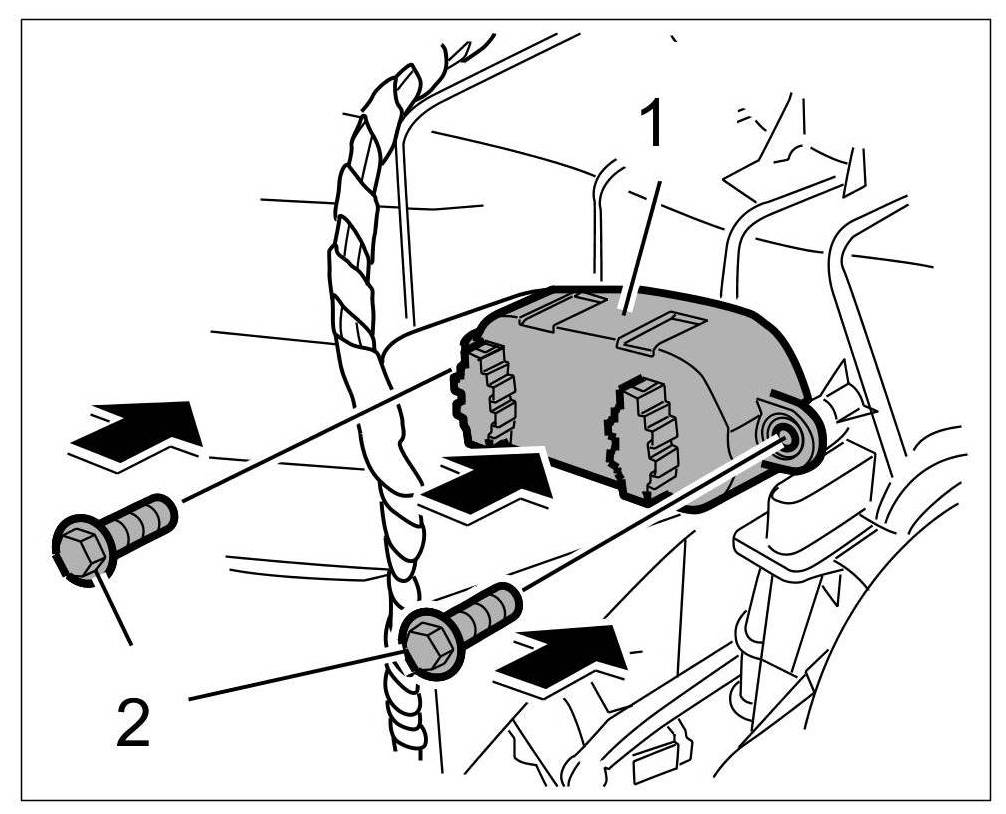

Installing fan control

2. Insert both electrical connectors into the fan control until they are felt to engage.





Inserting the connectors

3. Switch on ignition and check fan control.

Subsequent work

Install glove compartment. -> 681519 Removing and installing glove compartment - section on "installing" Service and Repair
