883419 Removing and Installing Auxiliary Air-Conditioning Air Guide

WM 883419 Removing and installing auxiliary air-conditioning air guide

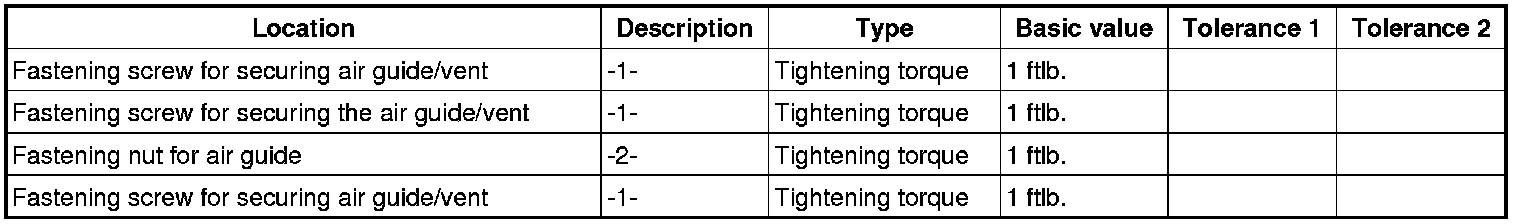

Technical values





Removing auxiliary air-conditioning air guide

Information

- Depending on vehicle equipment and on the required air guide, all interior components must be removed.

- The removal and installation described provides information about routing and the connection or fastening points.

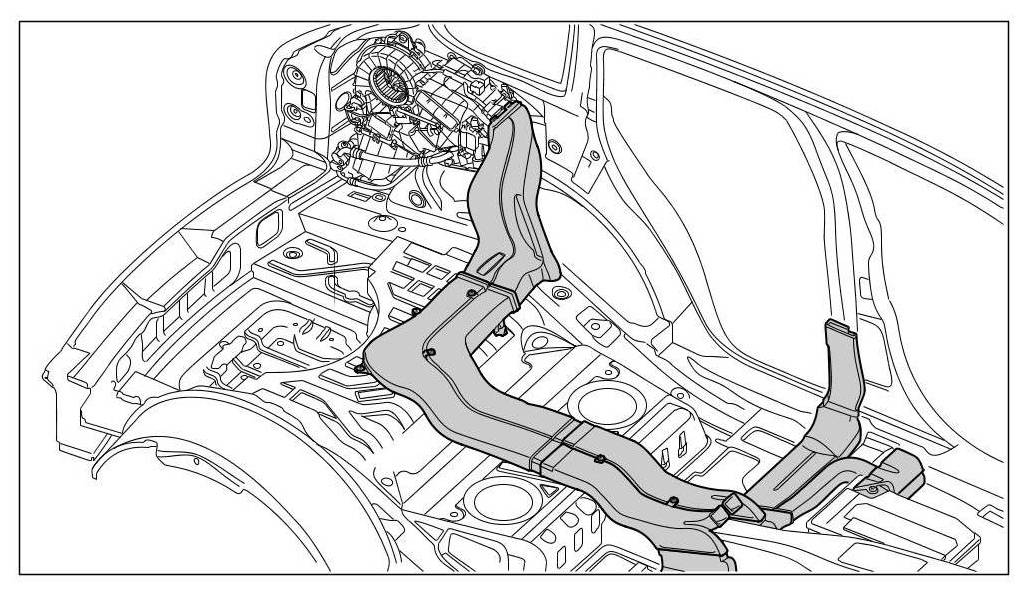

Overview of air guide for auxiliary air-conditioning

1. Press together the air duct from above and pull out of the air-conditioning unit.





Pulling out the air duct from the air-conditioning unit

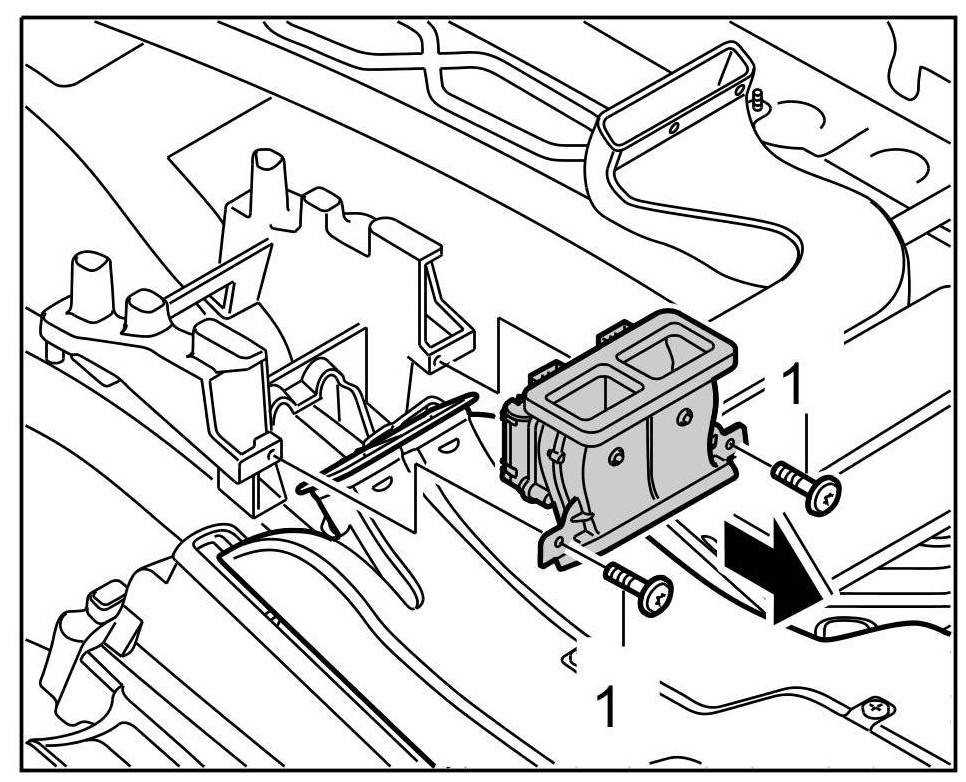

2. Unscrew fastening screws -1- and remove the vents -arrow-.





Removing vent

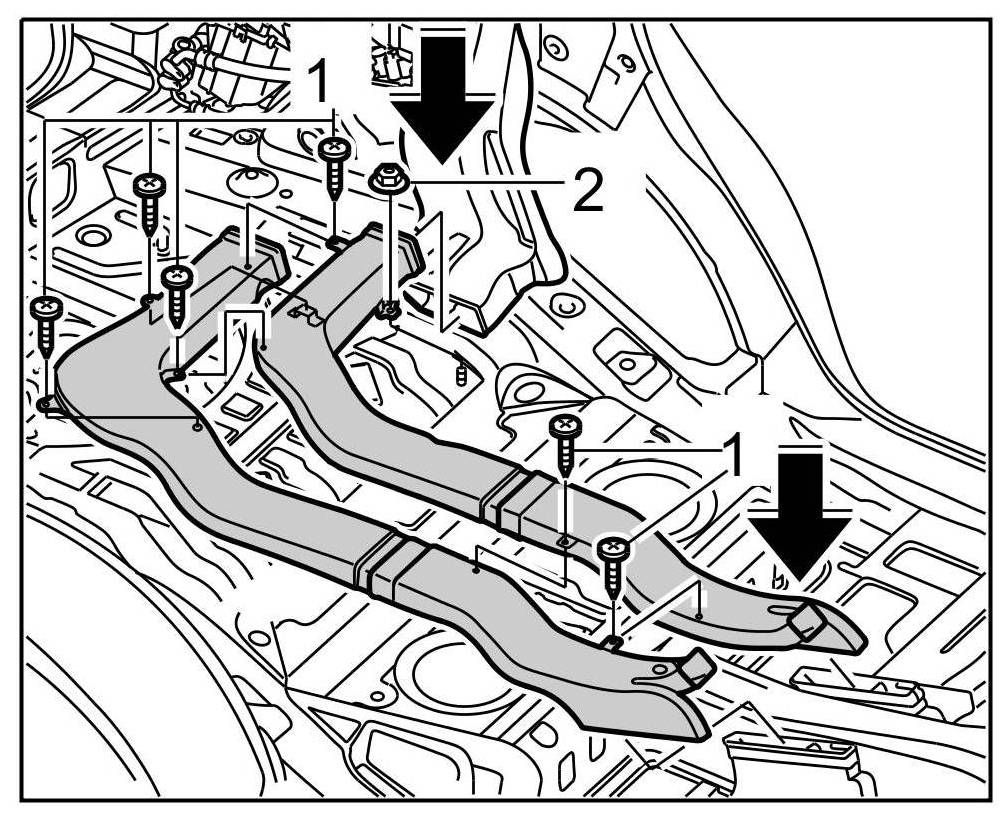

3. Unscrew the fastening screws -1- and the fastening nuts -2-.





Unscrewing fastening elements

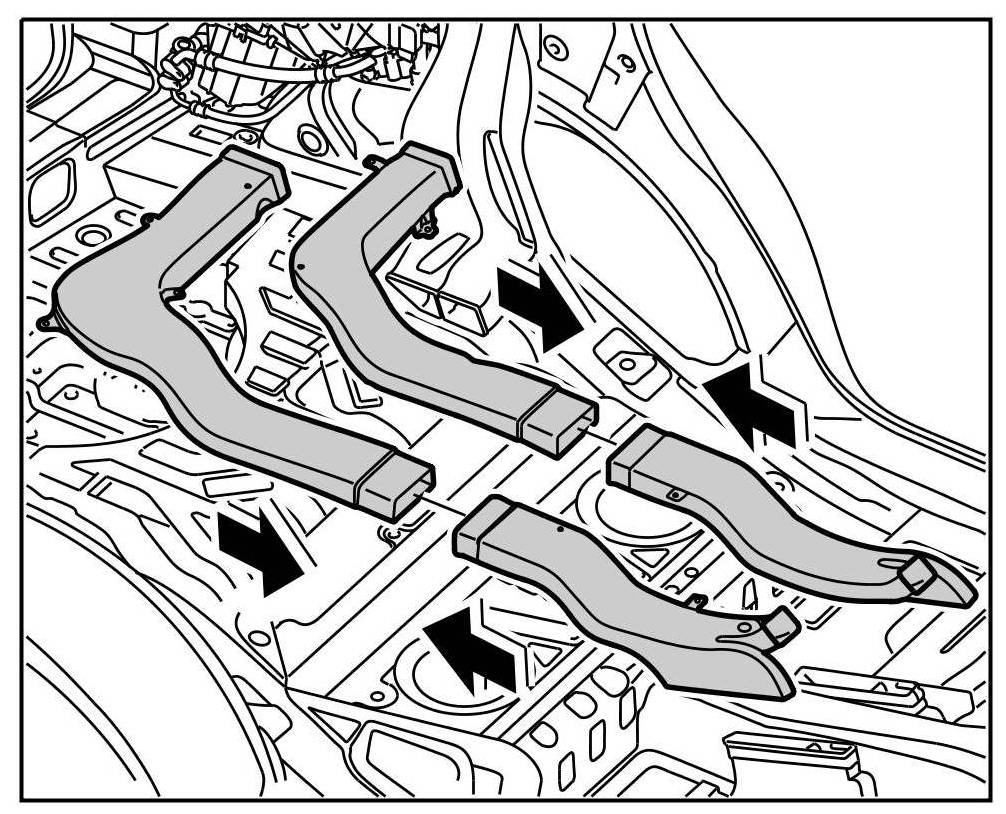

4. The air guides are plugged into each other and can simply be pulled apart.





Disconnecting air guides

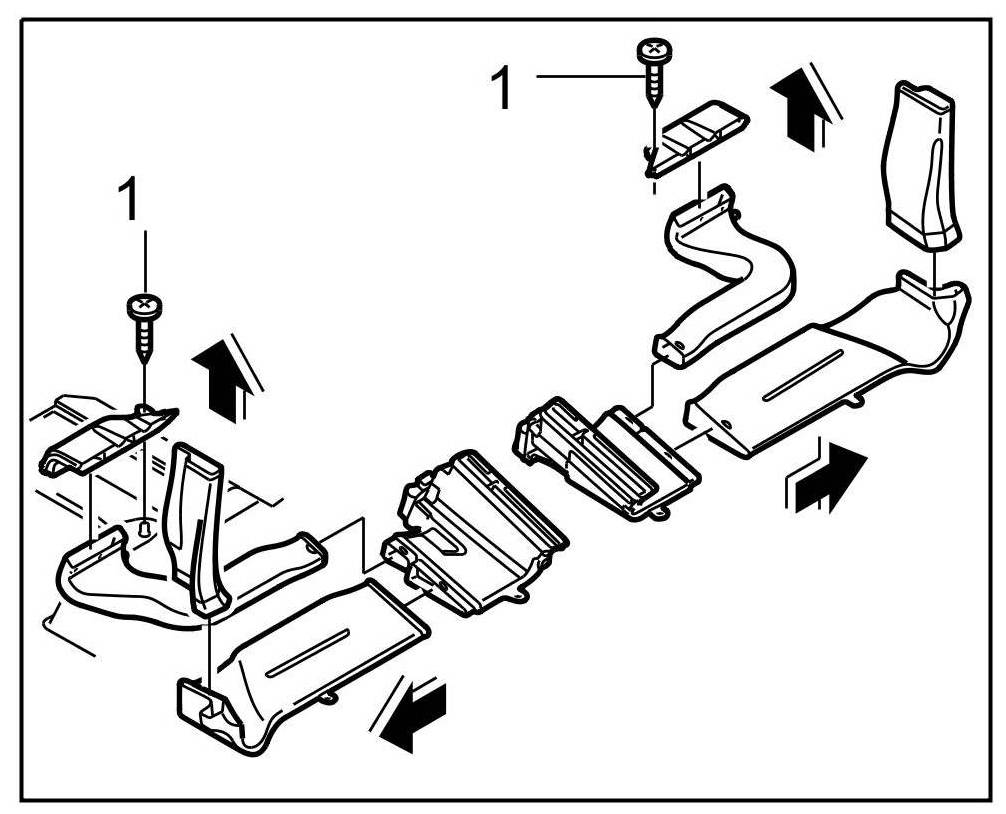

5. Unscrew the fastening screws -1- and pull apart the rear footwell vent air guides and the B-pillar.





Disconnecting rear footwell vent air guides and B-pillar

Installing auxiliary air-conditioning air guide

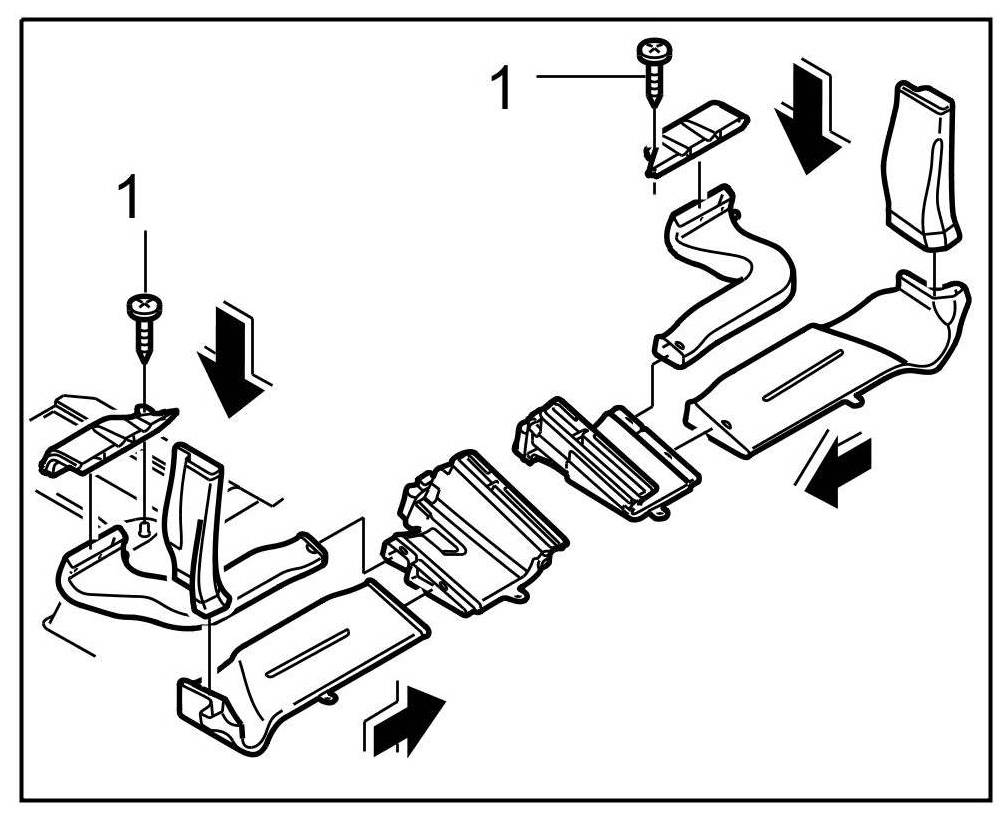

1. Plug together the rear footwell vent air guides and the B-pillar and screw down with the fastening screws -1-. => Tightening torque: 1 ftlb.





Plugging together the rear footwell vent air guides and B-pillar

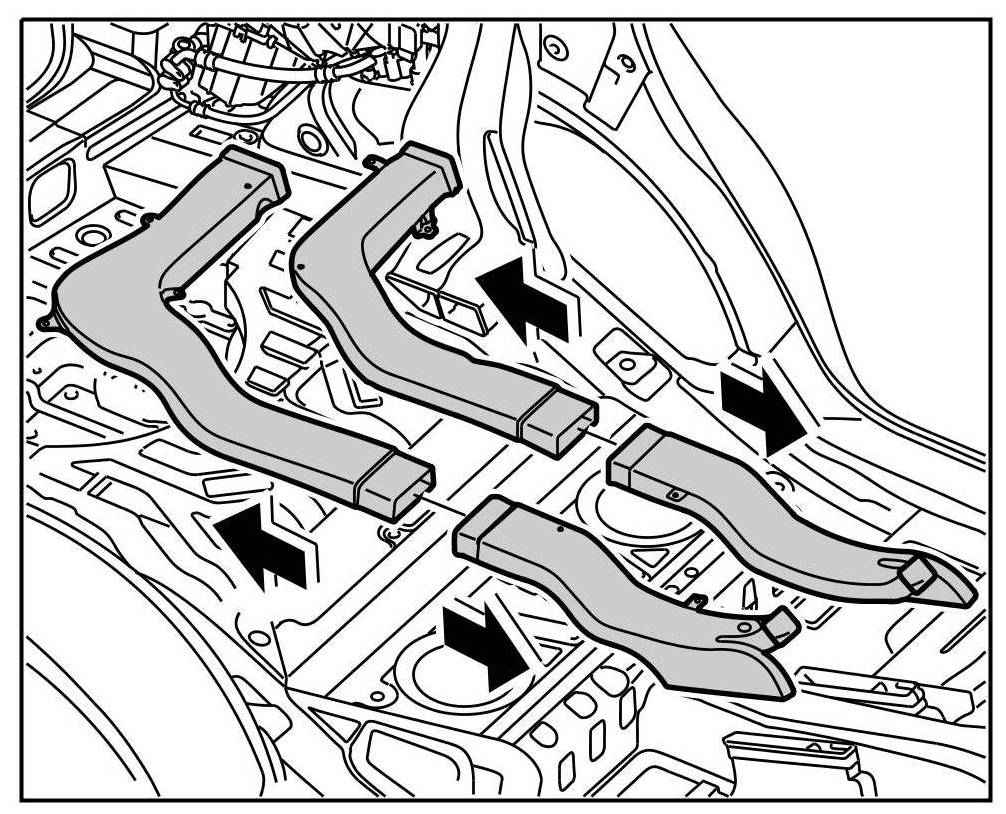

2. Plug the air guides together.





Plugging the air guides together

3. Screw down the air guides using the fastening screws -1- and the fastening nuts -2-. => Tightening torque: 1 ftlb. => Tightening torque: 1 ftlb.





Screwing down air guides

4. Push the air duct into the auxiliary air-conditioning unit until the air duct engages.





Sliding air duct into the auxiliary air-conditioning unit

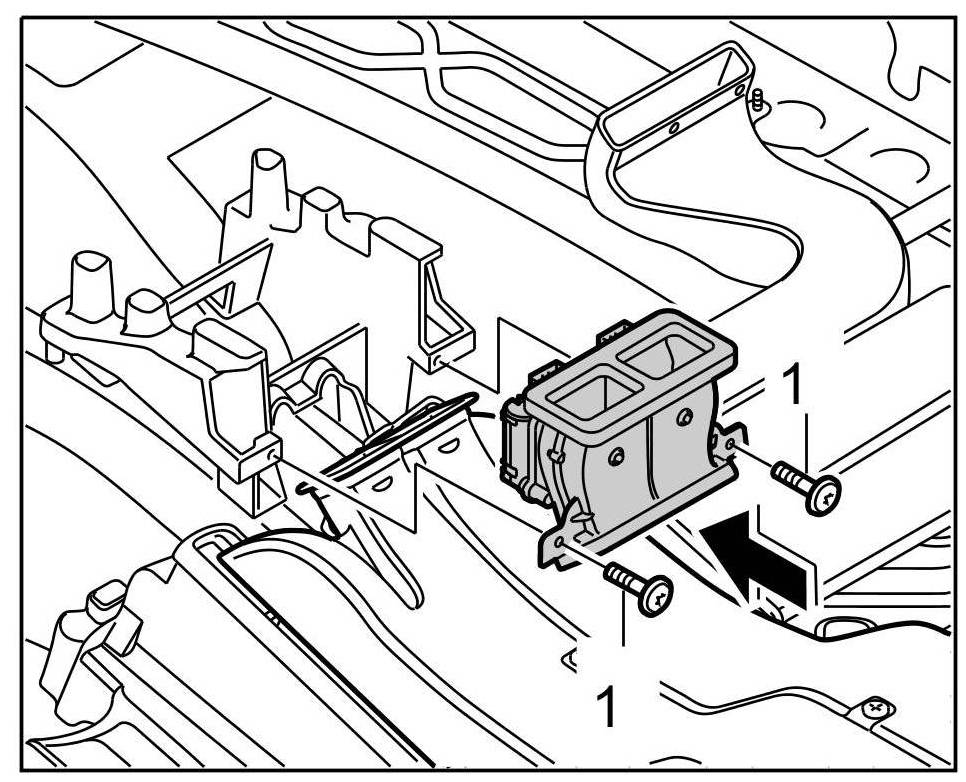

5. Place on the centre console vent and screw down with the fastening screws -1-. => Tightening torque: 1 ftlb.





Positioning and screwing down the centre console
