856519 Removing and Installing Ventilation Cover

WM 856519 Removing and installing ventilation cover

Preliminary work

1. Remove rear spoiler. -> 635519 Removing and installing rear apron - section on "Removing"
2. Remove warning triangle (right side only).
3. Remove rear luggage compartment side-panel lining. -> 700319 Removing and installing side-panel lining for rear luggage compartment - section on "Removing" 700319 Removing and installing rear luggage compartment side-trim panel

Removing ventilation cover

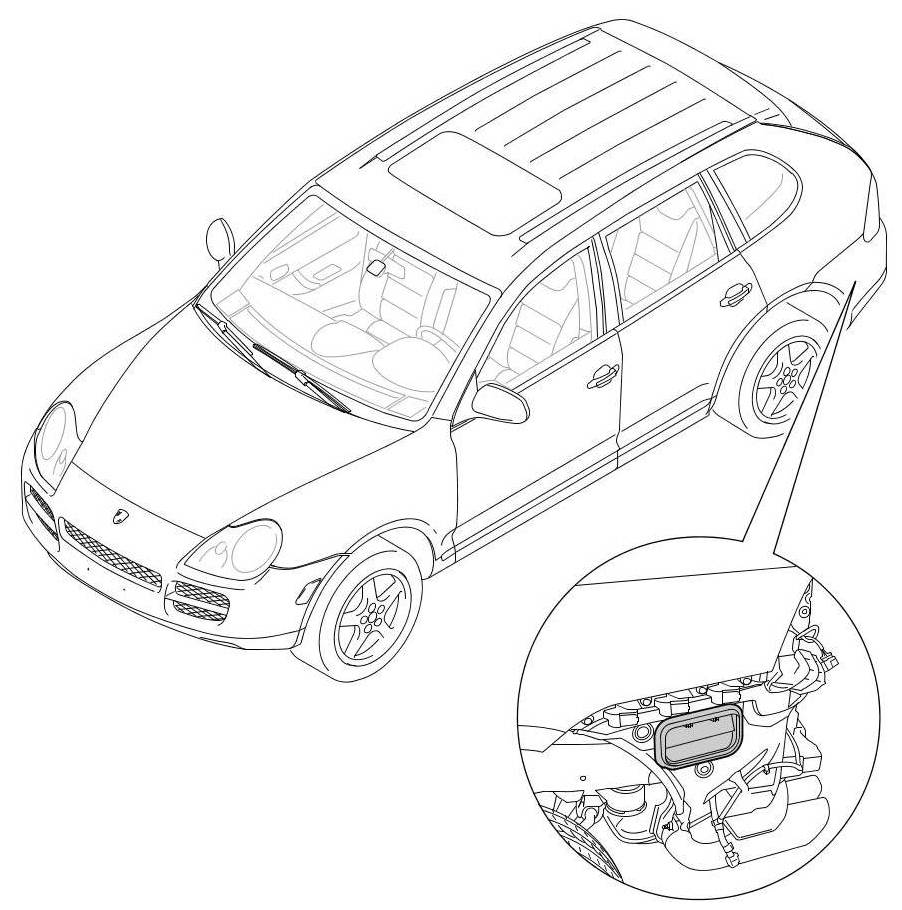

Overview of ventilation cover

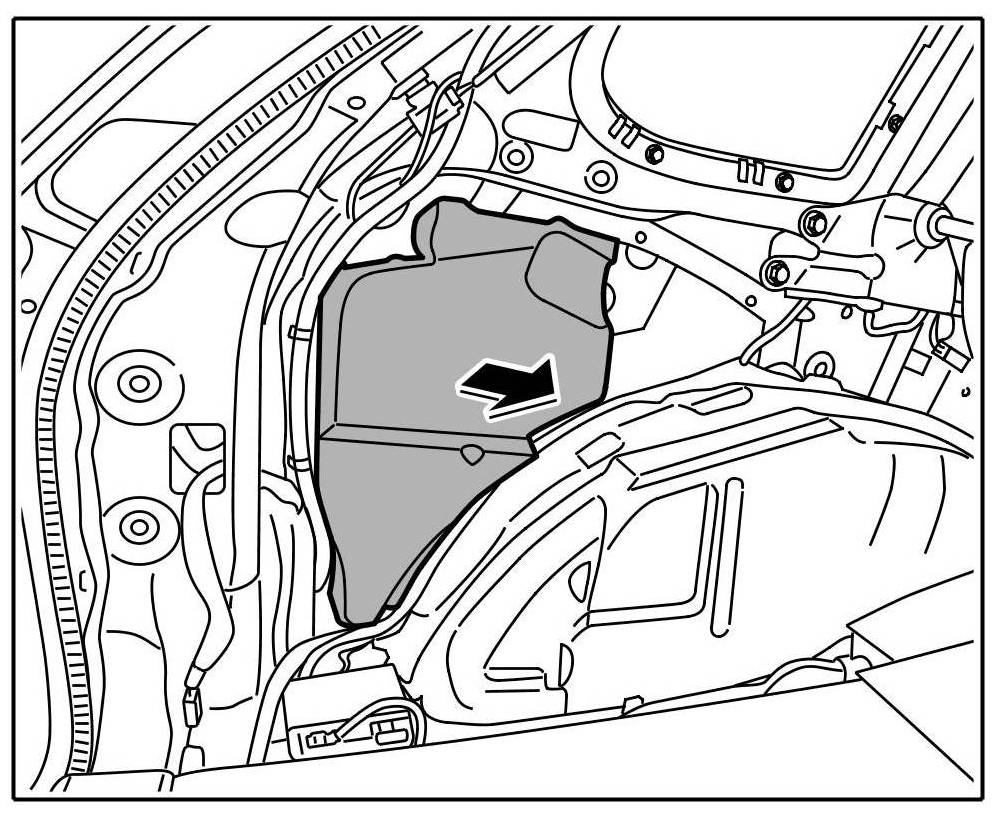

1. Remove styrofoam element (left side only) -arrow-.





Removing styrofoam element

Information

- Simply push the styrofoam element aside when removing the right ventilation cover.

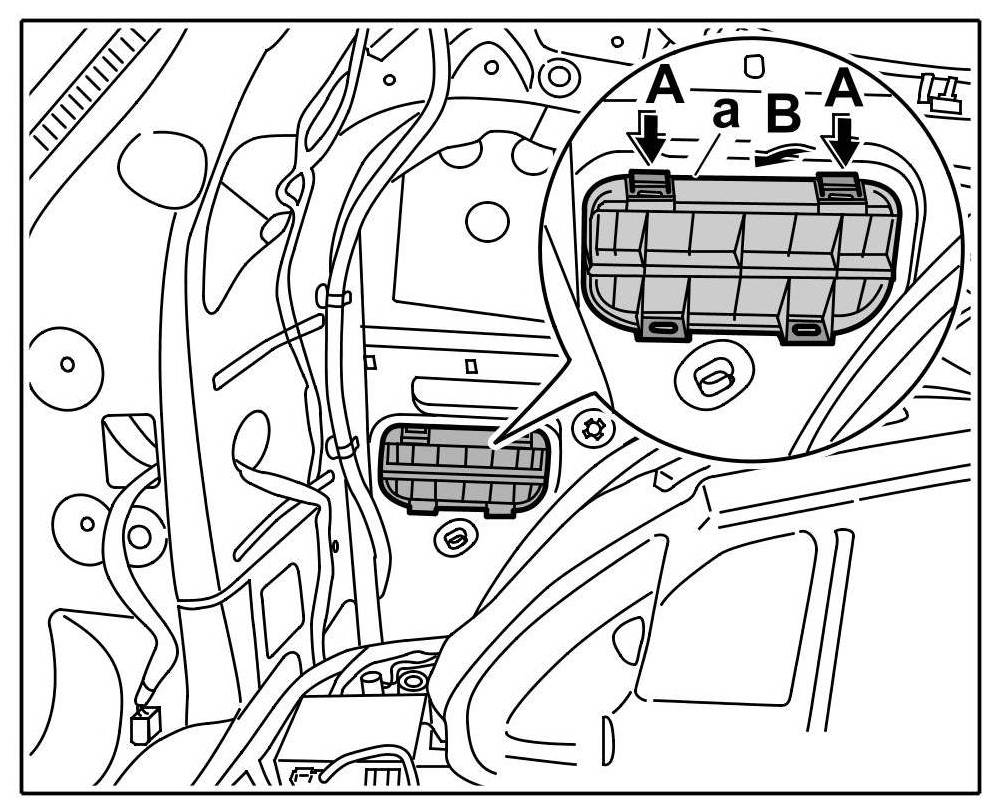

2. Press the upper locking tabs down -arrows A- , press the upper edge of the ventilation cover -a- outwards -arrow B- and remove it.





Removing ventilation cover

Installing ventilation cover

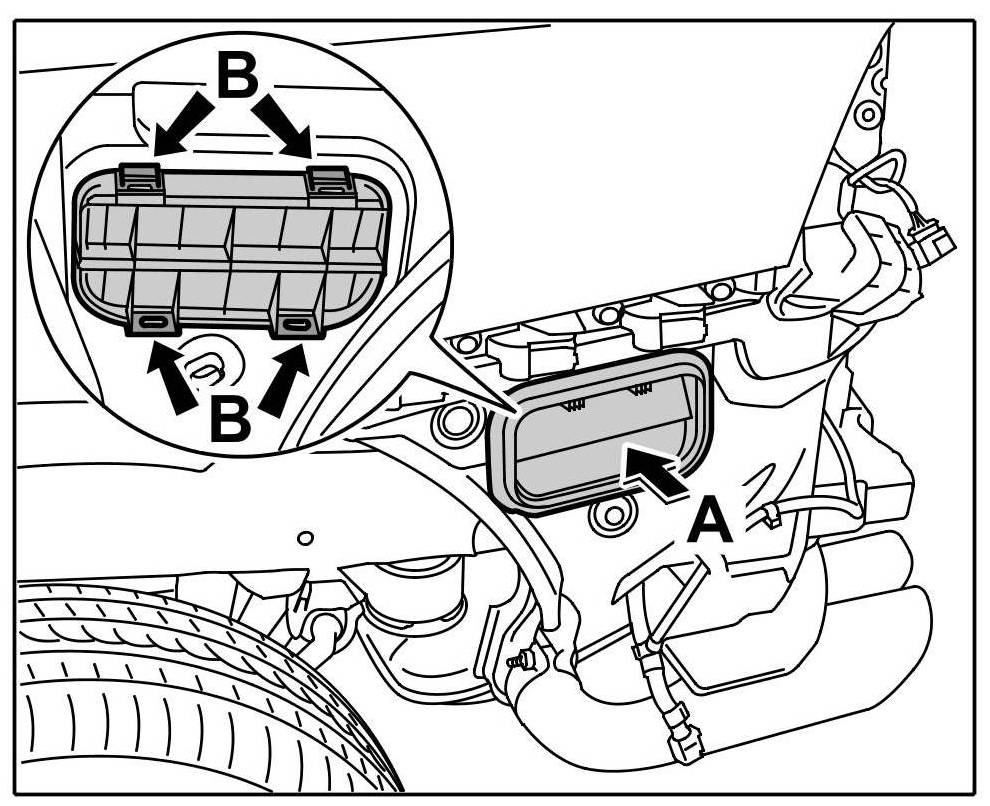

1. Push in the ventilation cover -arrow A- until you feel the locking tabs -arrows B- engage.





Installing ventilation cover

2. Insert styrofoam element -arrow-.





Installing styrofoam element

Subsequent work

1. Install rear luggage compartment side-panel lining. -> 700319 Removing and installing side-panel lining for rear luggage compartment - section on "Installing" 700319 Removing and installing rear luggage compartment side-trim panel
2. Insert warning triangle (right side only).
3. Install rear spoiler. -> 635519 Removing and installing rear apron - section on "Installing"
