Hydraulic Schematics
Hydraulic Schematics
Hydraulic Operating Schematics

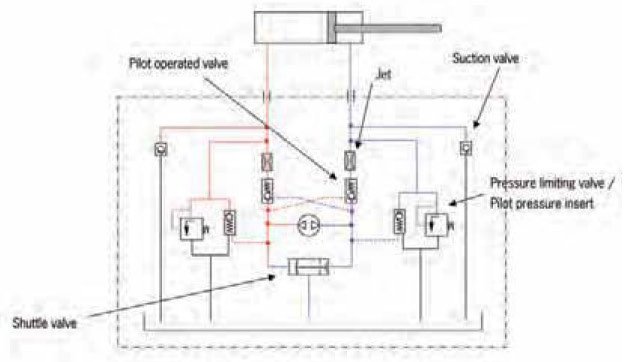

Rear lid opening.

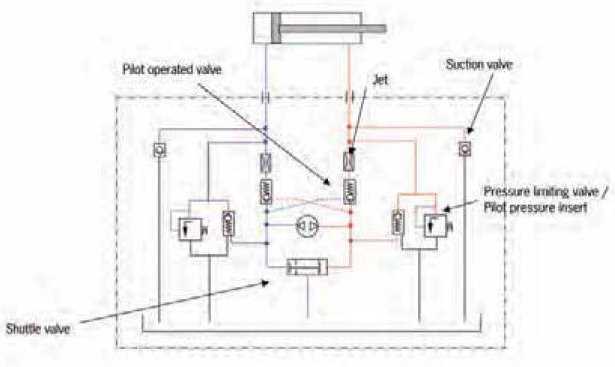

Rear lid closing.
