Fluid Pan: Service and Repair

WM 375519 Removing and installing ATF pan

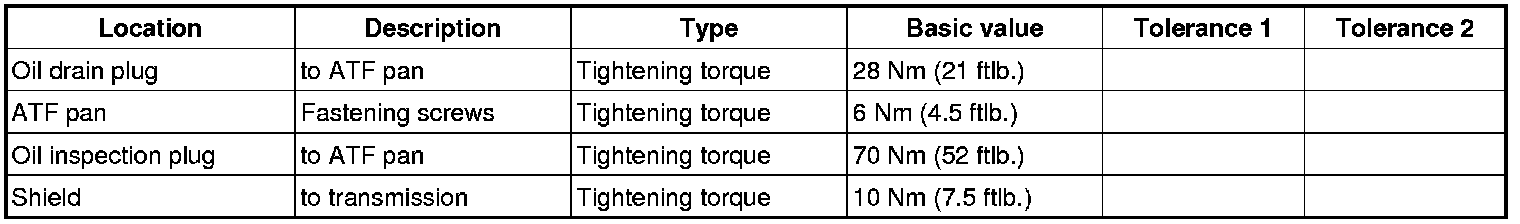

Technical values





Preliminary work

Preliminary work for ATF pan

1. Remove engine guard. -> 108019 Removing and installing engine guard - section on "removing" 108019 Removing and installing engine guard (underbody panelling)

Removing ATF pan

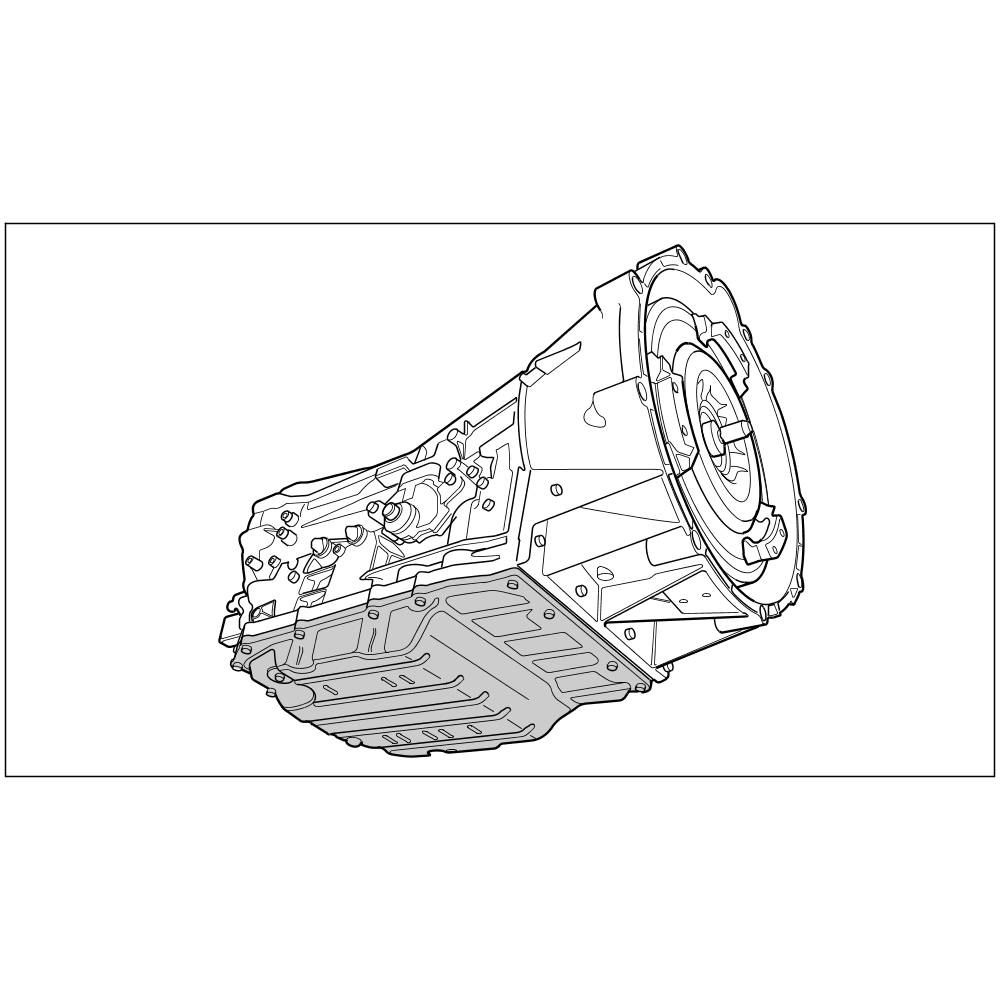

Overview of ATF pan

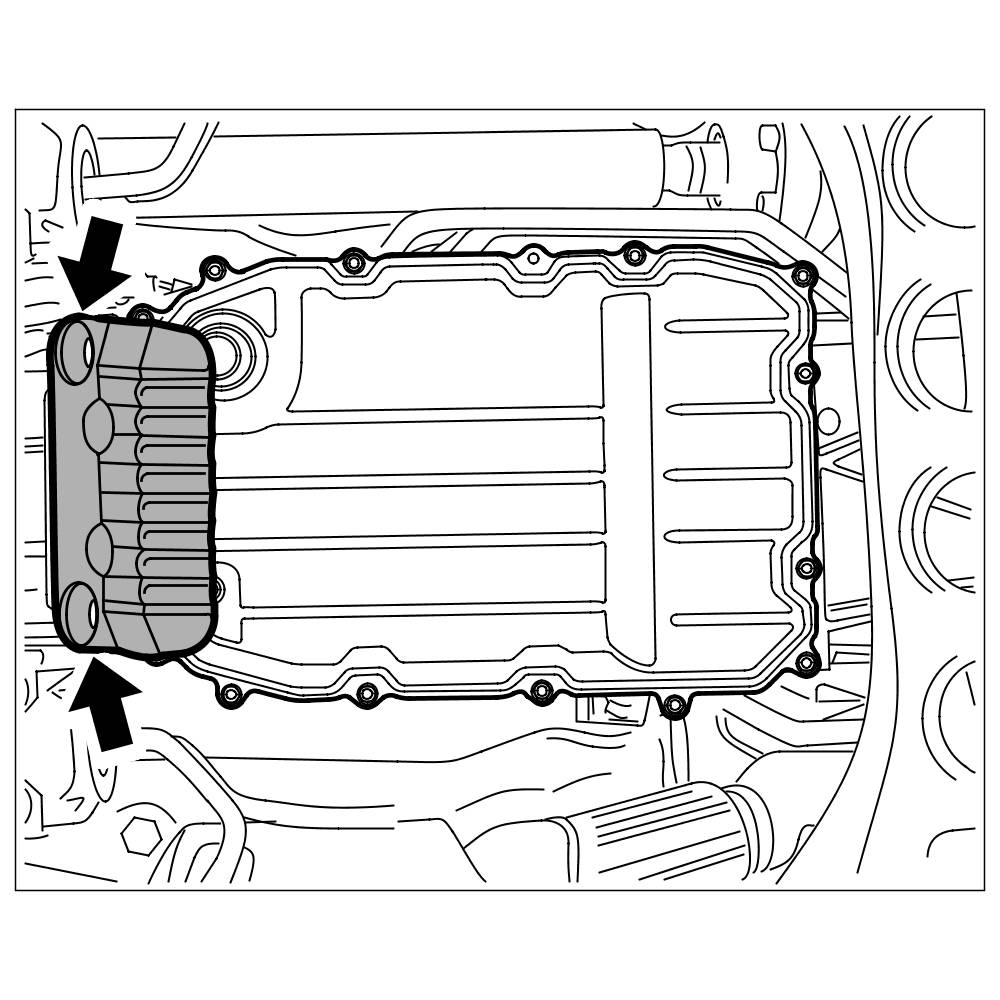

1. Remove cover of ATF pan. To do this, loosen the two fastening screws -arrows-.





Shield on transmission

2. Place collection pan under the transmission. Unscrew oil drain plug -1- and drain ATF.





Oil drain plug and oil inspection plug

3. Screw in oil drain plug -1- with a new sealing ring. => Tightening torque: 28 Nm (21 ftlb.)

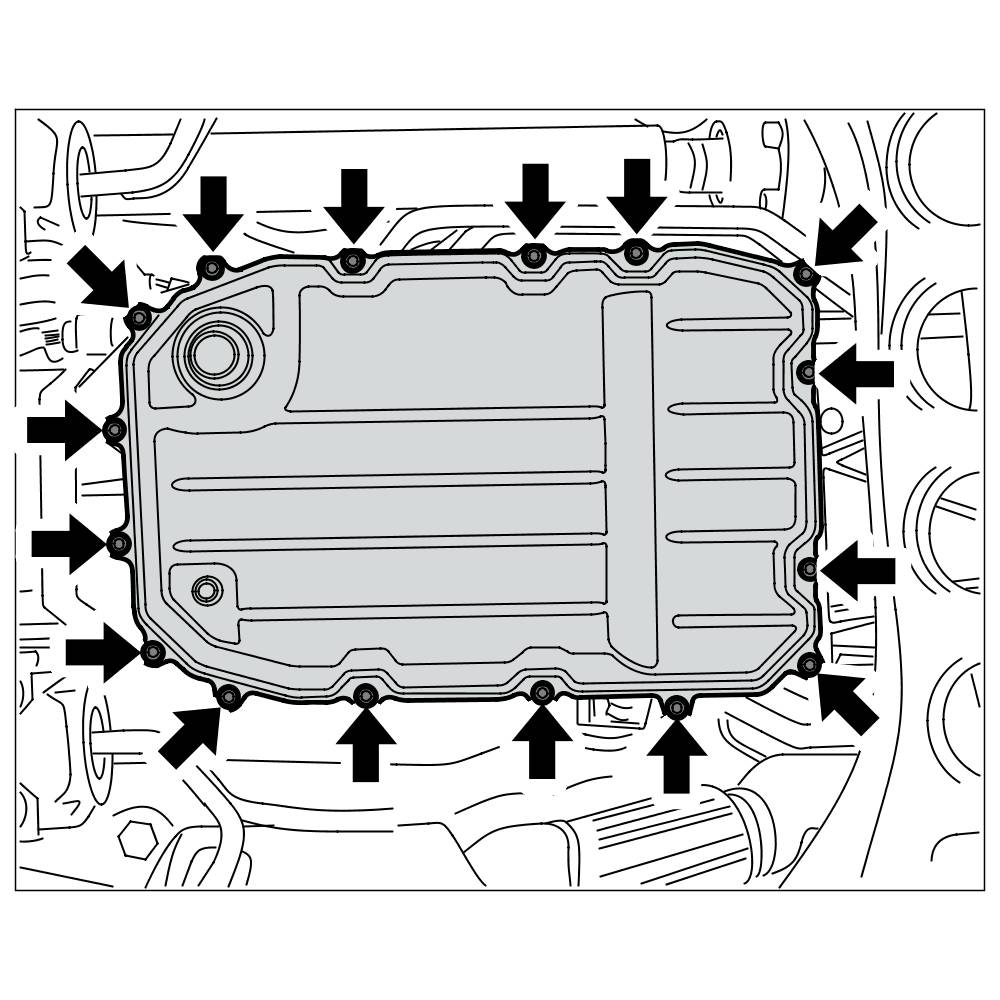

4. Unscrew screws -arrows- on the ATF pan and remove pan.





ATF pan

Installing ATF pan





Overview of ATF pan

Information

- Make sure that the gasket has been positioned correctly on the bulb of the oil pan edge.

1. Place new gasket on the ATF pan.

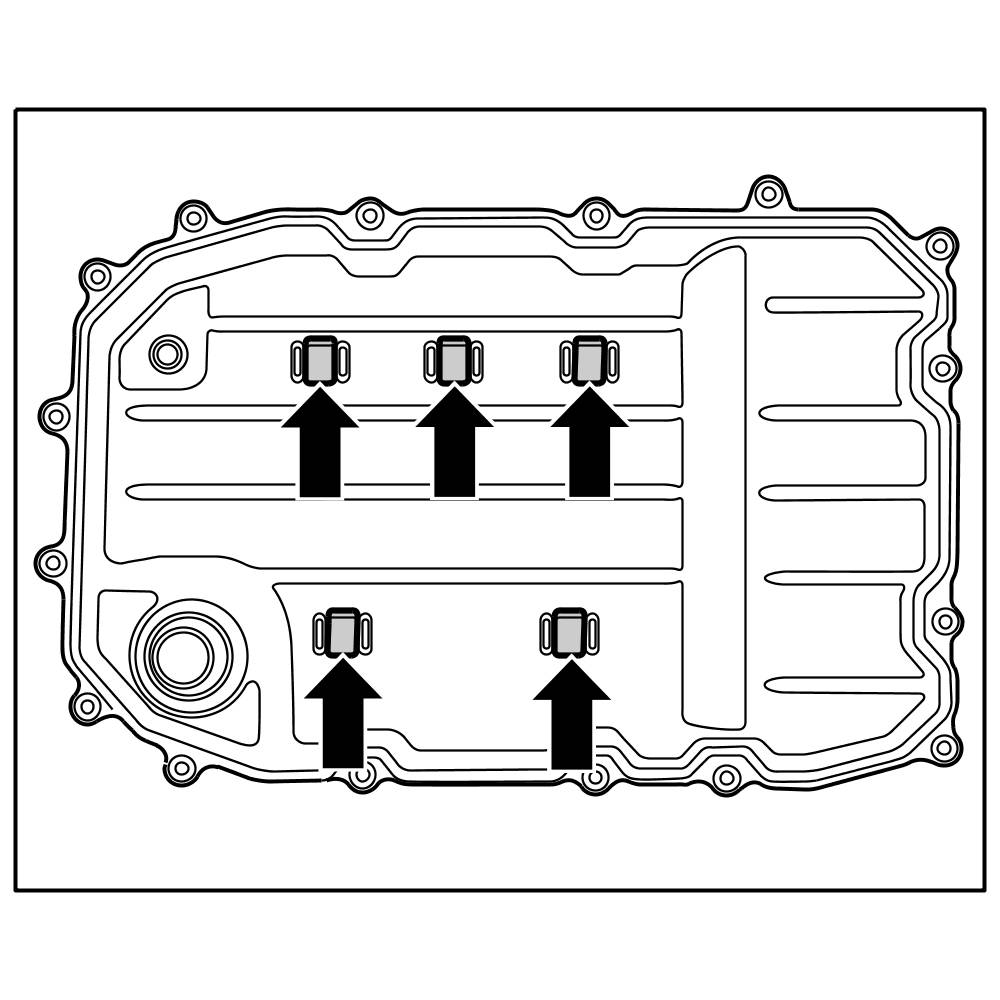

2. Check position of the magnets -arrows- in the oil pan.





Magnets in ATF pan

3. Insert ATF pan and screw in screws -arrows-. => Tightening torque: 6 Nm (4.5 ftlb.)





ATF pan

WARNING

Hot fluid

- Danger of scalding

-> Let the fluid cool down.
-> Wear personal protective gear.

WARNING

Hot fluid

- Danger of scalding

-> Let the fluid cool down.
-> Wear personal protective gear.

4. Unscrew oil inspection plug -2- and fill in ATF until a constant discharge is visible.





Oil drain plug and oil inspection plug

5. Screw in oil inspection plug -2- again with a new sealing ring. => Tightening torque: 70 Nm (52 ftlb.)

Subsequent work

Reworking ATF pan

Information

- Modified ATF filling capacities in the transmission in combination with new control units.

- Observe => "Technical Information 01/04 Group 3" and numbers on transmission and control unit.

1. Check and if necessary, top up the ATF. -> 370235 Checking and topping up ATF
2. Install shield on ATF pan. To do this, tighten the two fastening screws -arrows-. => Tightening torque: 10 Nm (7.5 ftlb.)





Shield on transmission

3. Fit engine guard. -> 108019 Removing and installing engine guard - section on "Installing" 108019 Removing and installing engine guard (underbody panelling)
