Power Steering Fluid Reservoir: Service and Repair
WM 489719 Removing and installing reservoir for hydraulic pump
Technical values
Information
Overview of reservoir for hydraulic pump
Preliminary work
DANGER
Vehicle raised incorrectly
- Danger of fatal injury and material damage should the vehicle fall down
-> Jack the vehicle at the prescribed jacking points.
1. Raise the vehicle.
-> 4X00IN01 Lifting the vehicle Service and Repair
2. Place protective covers on the vehicle to avoid damaging the body and passenger compartment.
3. Disconnect the battery. => 2706IN Work instructions after disconnecting the battery.
4. Remove rear wall cover.
Rear wall cover
-> 555919 Removing and installing rear wall cover Service and Repair
5. Remove engine compartment cover.
Engine compartment cover
-> 108319 Removing and installing engine cover
6. Remove resonance tube.
-> 247419 Removing and installing resonance tube - section on "Removing" Service and Repair
7. Remove right intake-air distributor.
-> 244619 Removing and installing intake-air distributor - section on "Removing" Service and Repair
8. Remove hydraulic pump.
-> 489819 Removing and installing hydraulic pump - section on "Removing" Service and Repair
Removing reservoir for hydraulic pump
Information
Ensure absolute cleanliness!
Ensure absolute cleanliness if the reservoir is disconnected from the hydraulic pump.
If dirt gets into the reservoir, this can cause the hydraulic pump to stop working.
Information
Driving out straight pins
If the straight pins are driven out in the wrong direction, this will widen the axial stops.
The straight pins must only be driven out towards the pulley side.
1. Remove reservoir from the hydraulic pump.
1.1. Remove holder -1- on the hydraulic pump -2-.

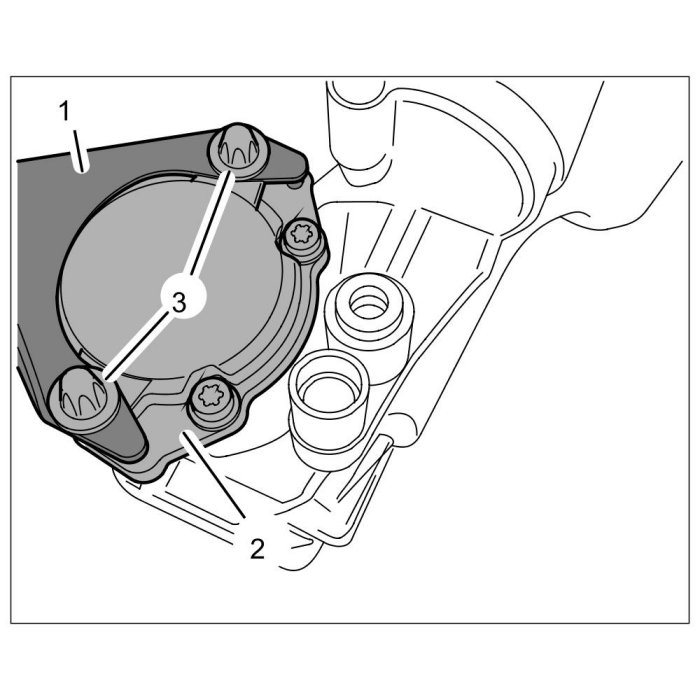

Holder for hydraulic pump
Loosen and unscrew screws -3- and remove the holder -1-.

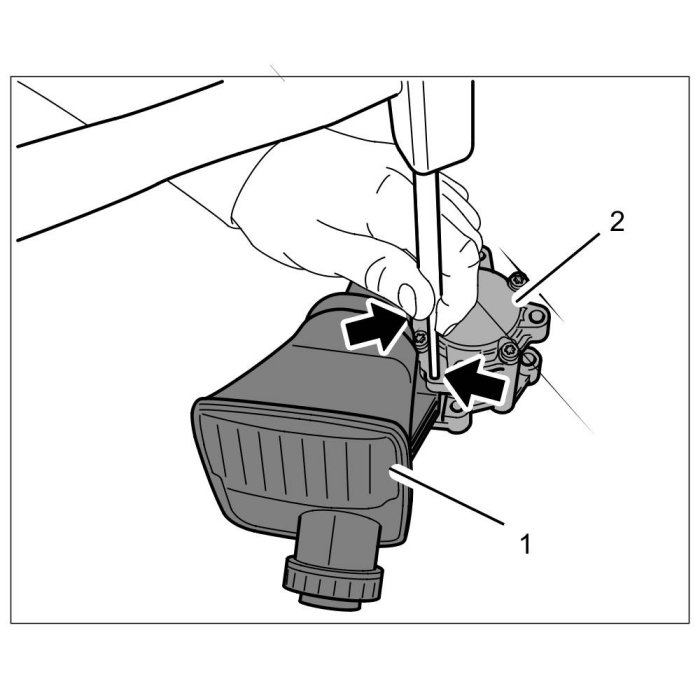

1.2. Drive out straight pins -arrows-.
Straight pins on reservoir
Drive out straight pins -arrows- towards the pulley side. Use a suitable mandrel that will not widen the bore hole.
1.3. Pull reservoir -1- off the hydraulic pump -2-.
Installing reservoir for hydraulic pump
Information
Ensure absolute cleanliness!
Ensure absolute cleanliness if the reservoir is disconnected from the hydraulic pump.
If dirt gets into the reservoir, this can cause the hydraulic pump to stop working.
Information
Driving in and securing straight pins
If the straight pins are driven in the wrong direction, this will widen the axial stops.
The straight pins must only be driven in towards the back of the hydraulic pump.
Always use new straight pins. Use a drop of Loctite in the bores to secure the straight pins.

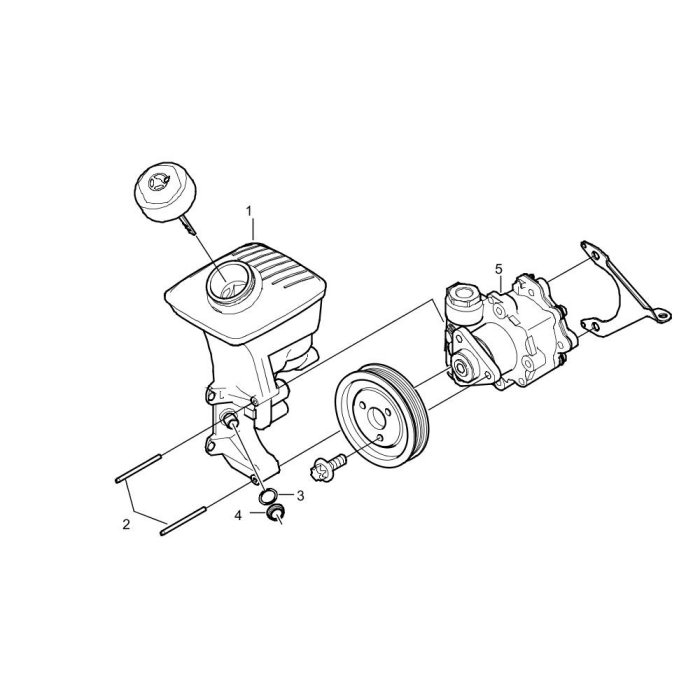

Overview of reservoir for hydraulic pump
1. Replace sealing ring and retaining ring.
Information
Installing O-ring
Always replace the O-ring -3- between the reservoir -1- and hydraulic pump -5-.
Make sure that the reservoir -1- is fitted without tension on the hydraulic pump -5-.
Leaks can occur if the O-ring -3- becomes jammed.
Sealing ring on reservoir
2. Fit the reservoir on the hydraulic pump.
2.1. Fit the reservoir on the hydraulic pump without tension.
2.2. Drive in straight pins.

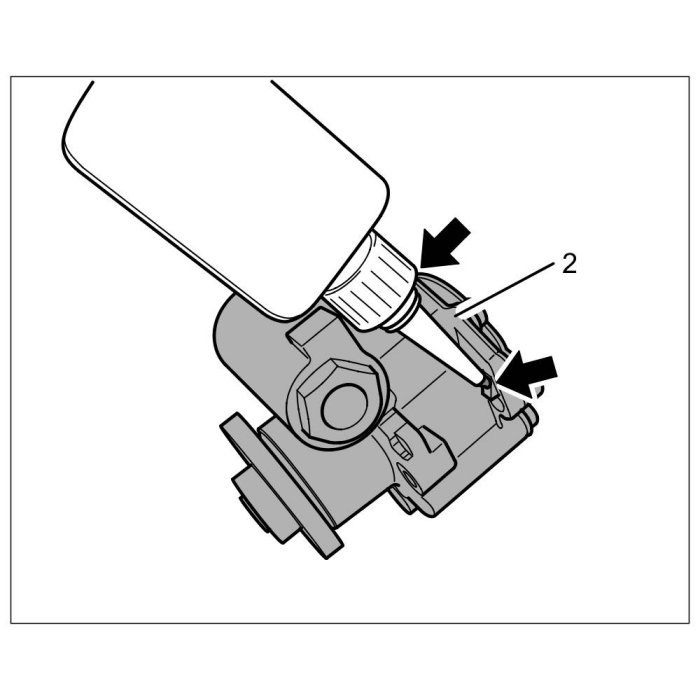

Reservoir for hydraulic pump
Secure the straight pins by putting a drop of Loctite in the bores of the hydraulic pump -2- ( -arrows- ).
Drive in the straight pins towards the back of the hydraulic pump -2- using a suitable mandrel that will not widen the bore hole.
2.3. Fit holder -1- for hydraulic pump -2-.
Holder for hydraulic pump
Fit holder -1- and screw in and tighten screws -3-.
=> Tightening torque: 23 Nm (17 ftlb.)
Subsequent work
1. Install hydraulic pump.
-> 489819 Removing and installing hydraulic pump - section on "Installing" Service and Repair
2. Install right intake-air distributor.
-> 244619 Removing and installing intake-air distributor - section on "Installing" Service and Repair
3. Install resonance tube.
Tighten screw-type clamps at the correct position.
-> 247419 Removing and installing resonance tube - section on "Installing" Service and Repair
4. Connect the battery.
-> 2706IN00 Work instructions after disconnecting the battery
5. Fill in hydraulic fluid, bleed the power-steering system and check for leaks. Then check the power-steering fluid level again.
-> 48020150 Checking power-steering fluid level Testing and Inspection.
6. Install engine compartment cover.
Cayman engine compartment cover
-> 108319 Removing and installing engine cover
7. Install rear wall cover.
Rear wall cover
-> 555919 Removing and installing rear wall cover Service and Repair
