858219 Removing and installing air guide in luggage compartment
WM 858219 Removing and installing air guide in luggage compartment
Preliminary work

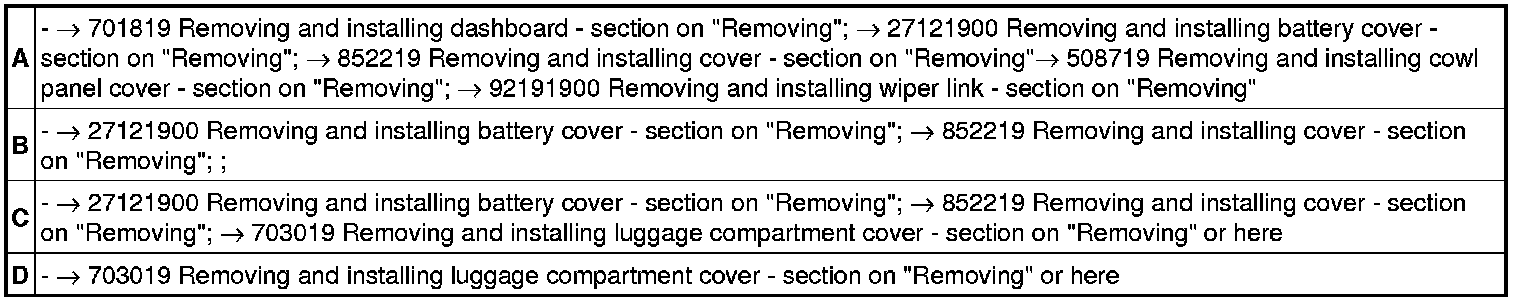

Preliminary work for air guide in luggage compartment
Information
Depending on which part of the air guide is to be removed, the following preliminary work must be carried out.
The air guide is only installed in connection with I No. 575.

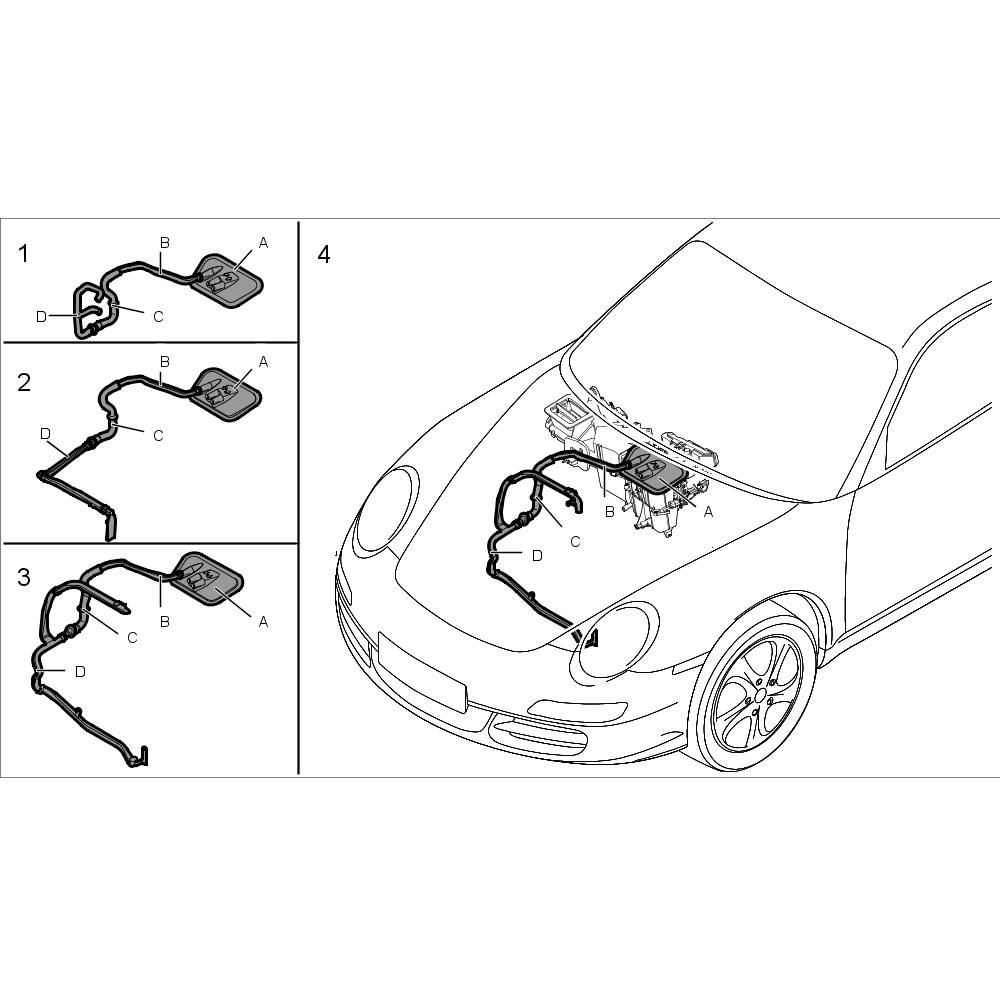

Installation position shown for the 911
Removing air guide in luggage compartment
Air guide A

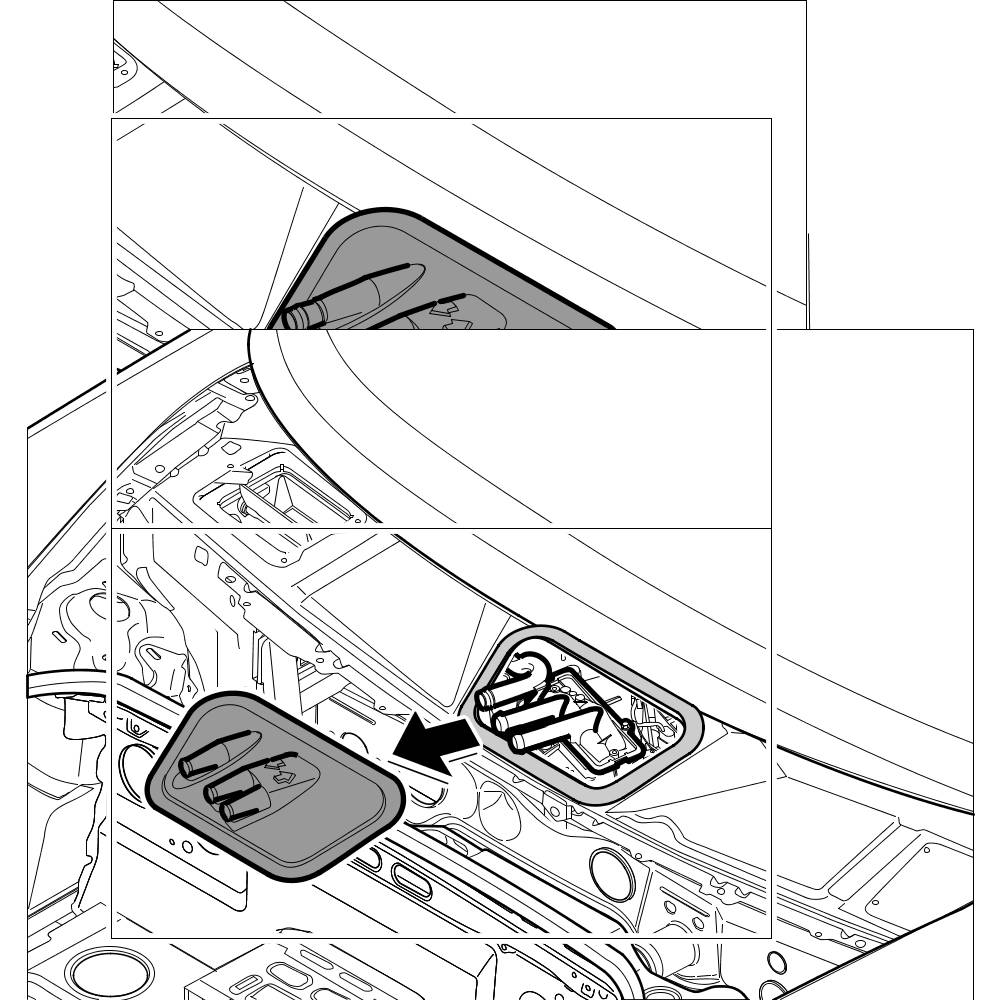

1. Pull off port plate from the body.

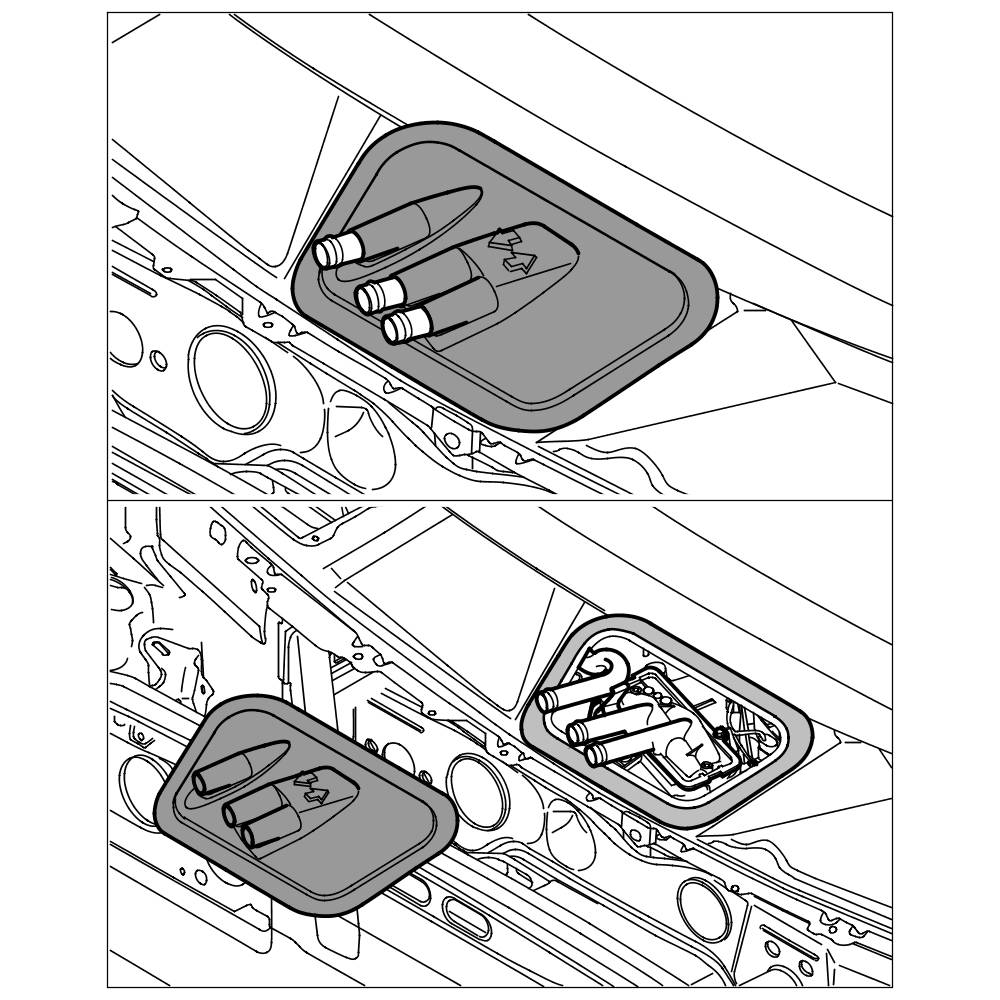

Removing port plate

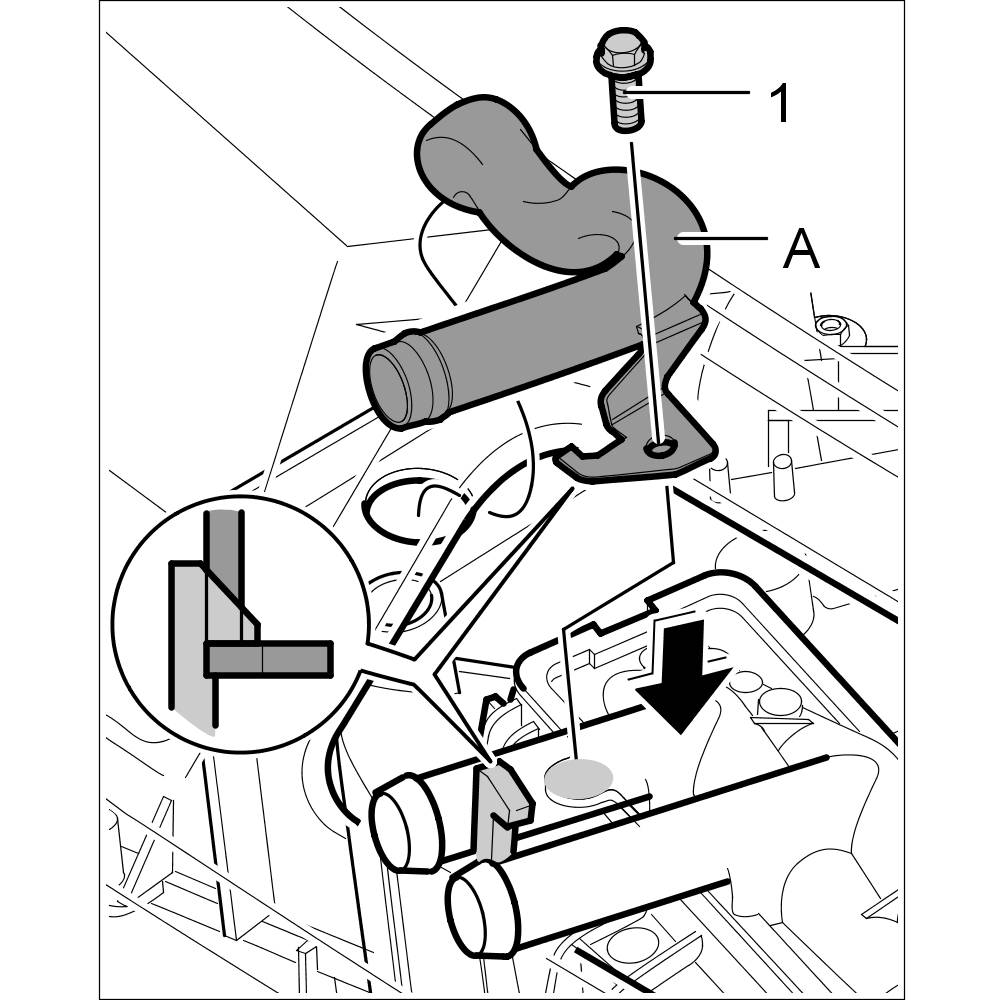

2. Unscrew fastening screw -1- for the air guide -A- and pull the air guide out of the heater/air-conditioning unit.
Removing air guide from heater/air-conditioning unit

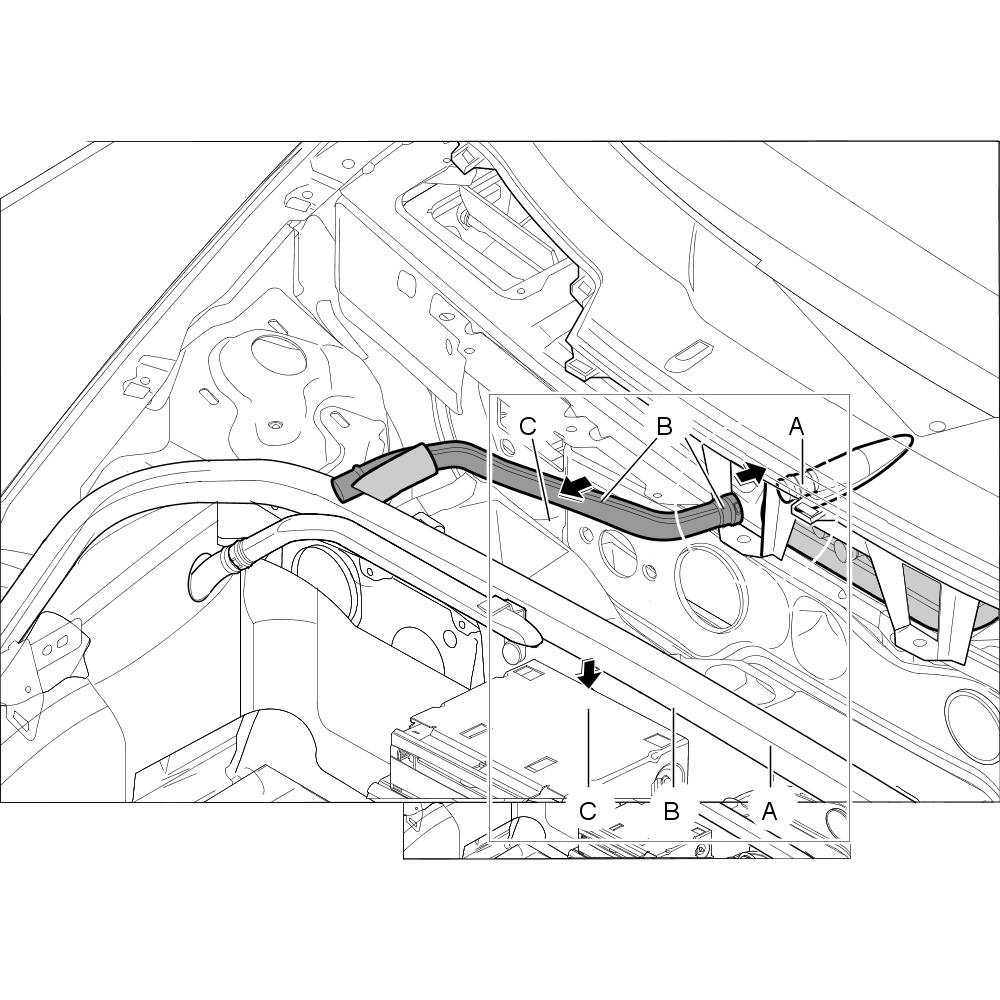

Air guide B, plenum panel air guide
1. Unclip cable holder from the air guide.
Pulling air guide out of connection points
2. Pull air guide -B- out of air guide -A- and then out of air guide -C-.

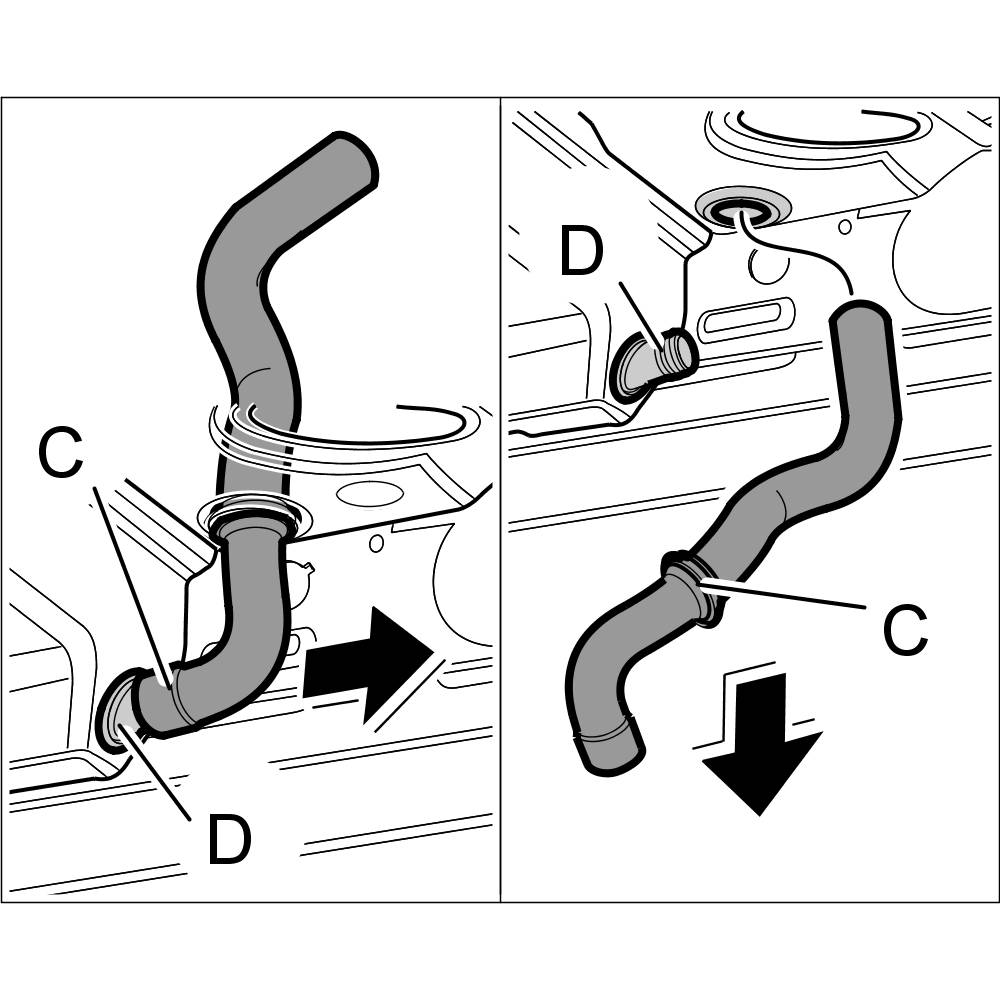

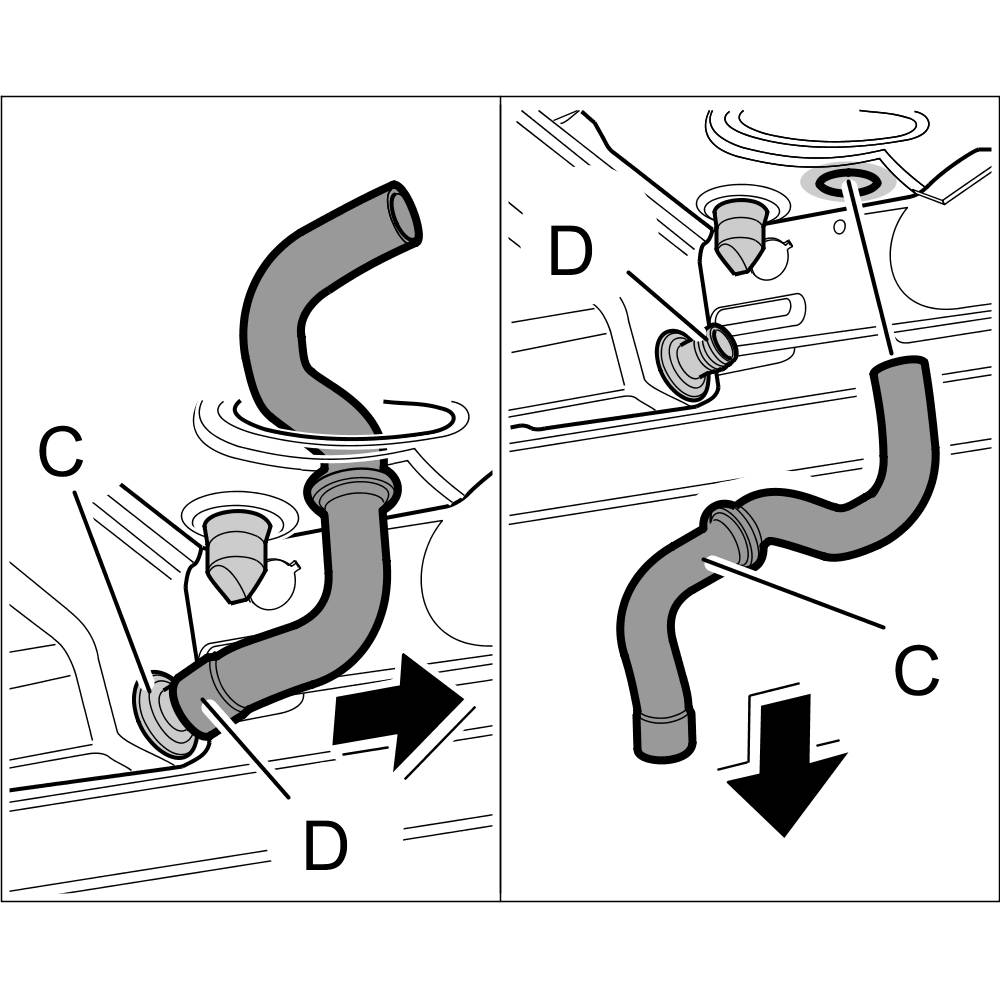

Air guide C, bulkhead air guide
1. Pull air guide -C- out of connection -D-.
Pulling air guide out of transverse bulkhead
4. Twist air guide -C- and pull down and out of the body.

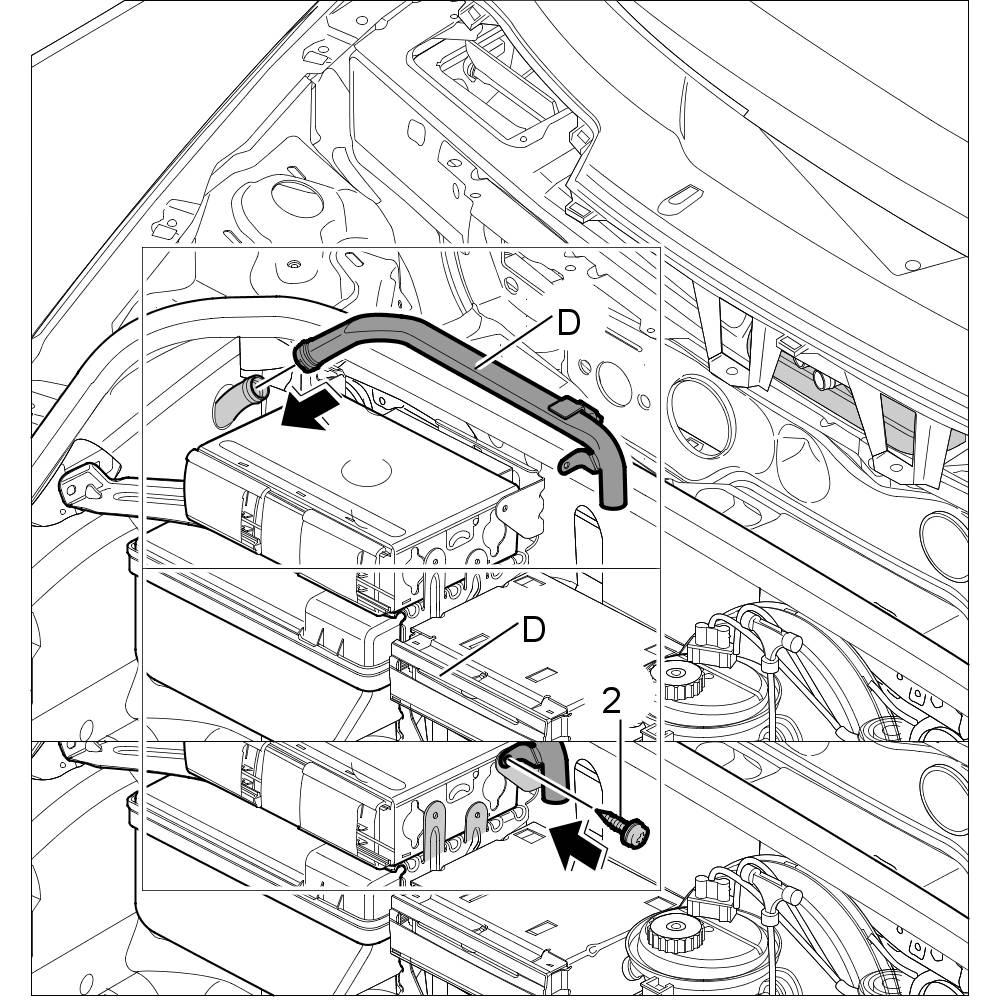

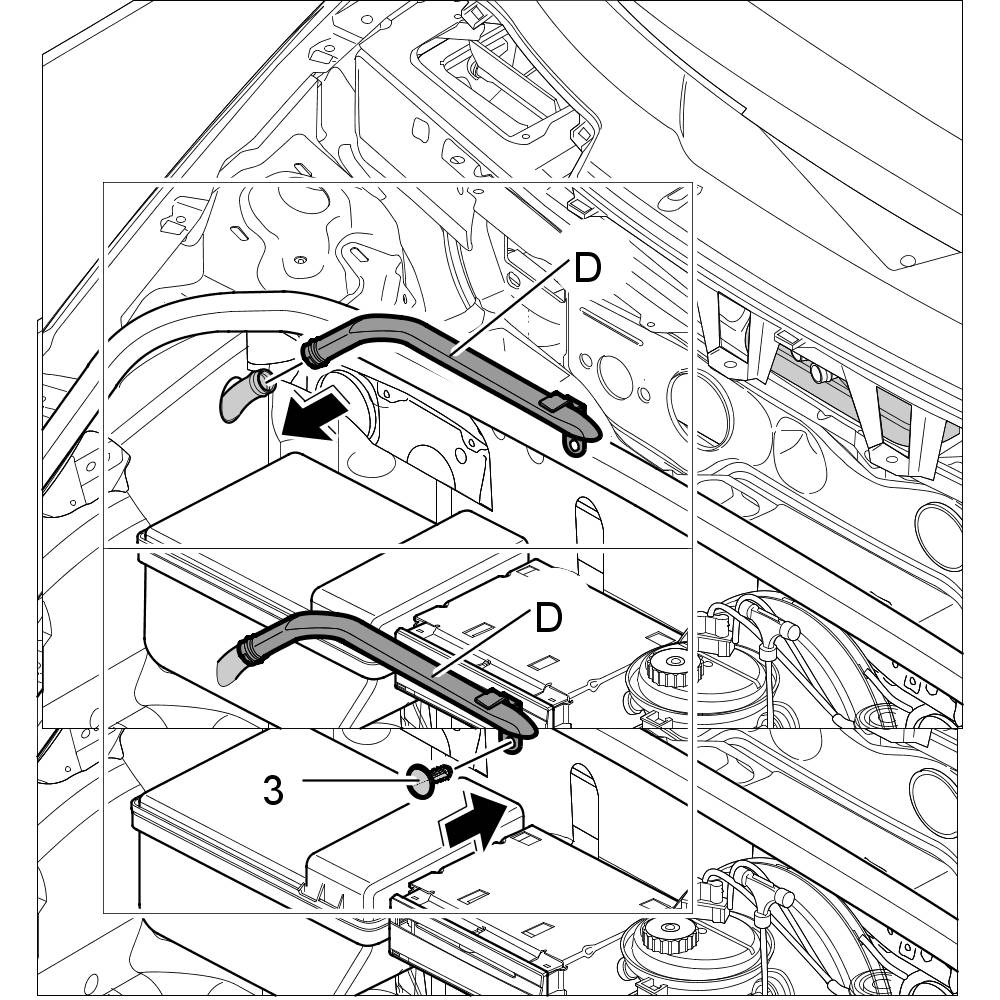

Air guide D, luggage compartment air guide for DVD navigation with carbon canister and with CD autochanger
1. Unscrew fastening screw -2- for the air guide at the CD autochanger support.
Air guide for DVD navigation
6. Pull air guide -D- out of the connection.

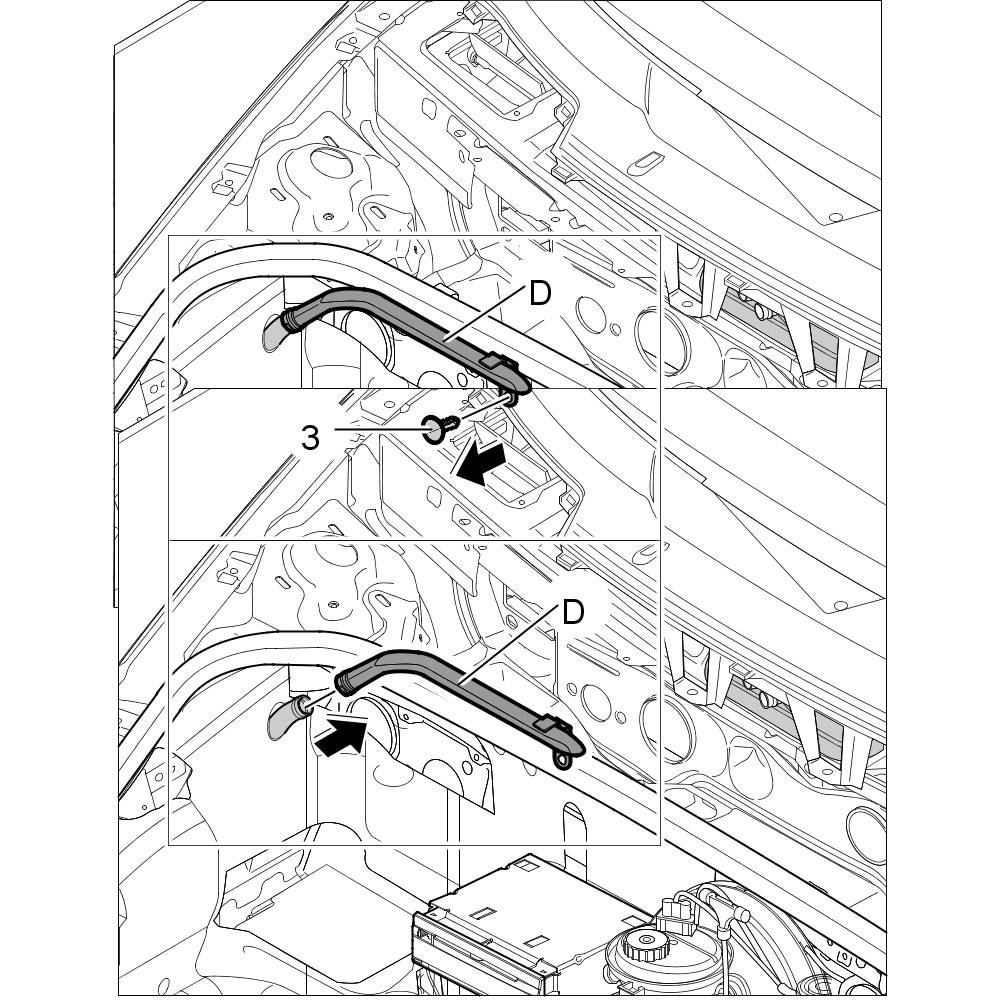

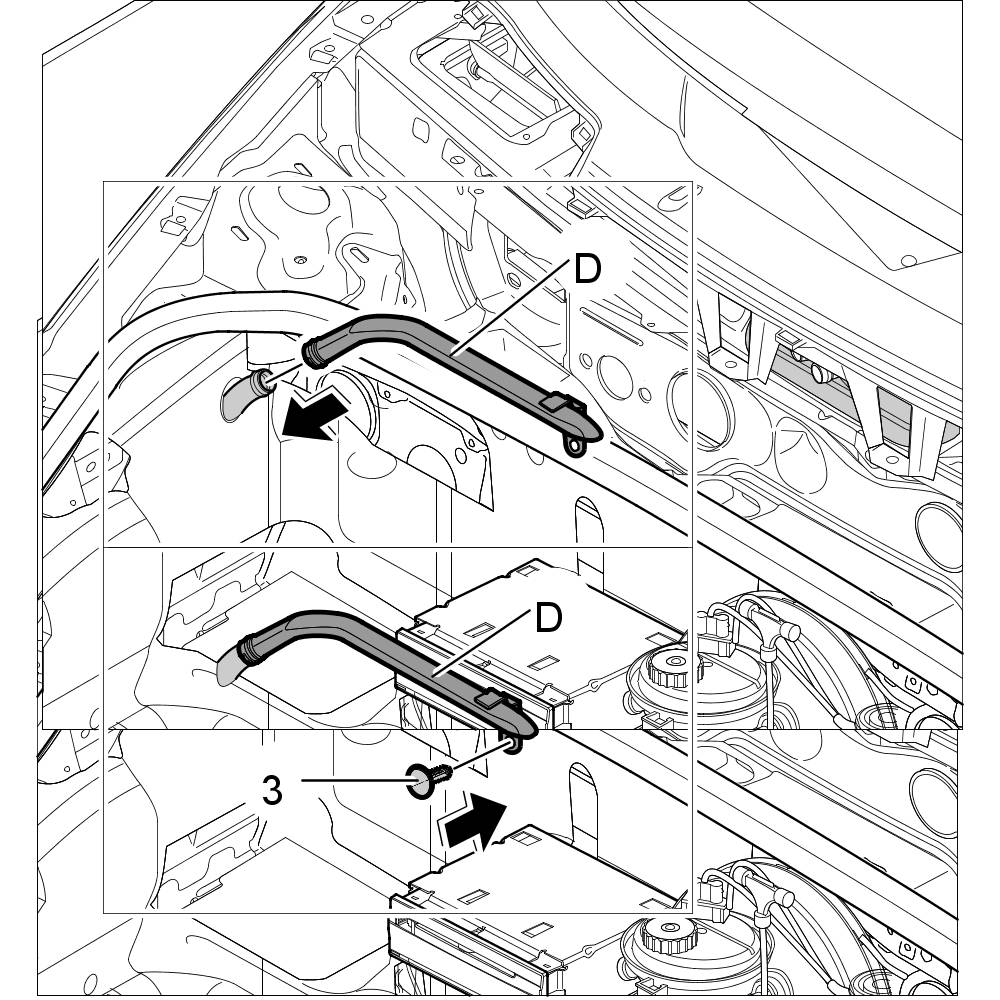

Air guide D, luggage compartment air guide for DVD navigation without carbon canister and with CD autochanger
1. Pull fastening plug -3- out of the luggage compartment.
Air guide for DVD navigation
8. Pull air guide -D- out of the connection.

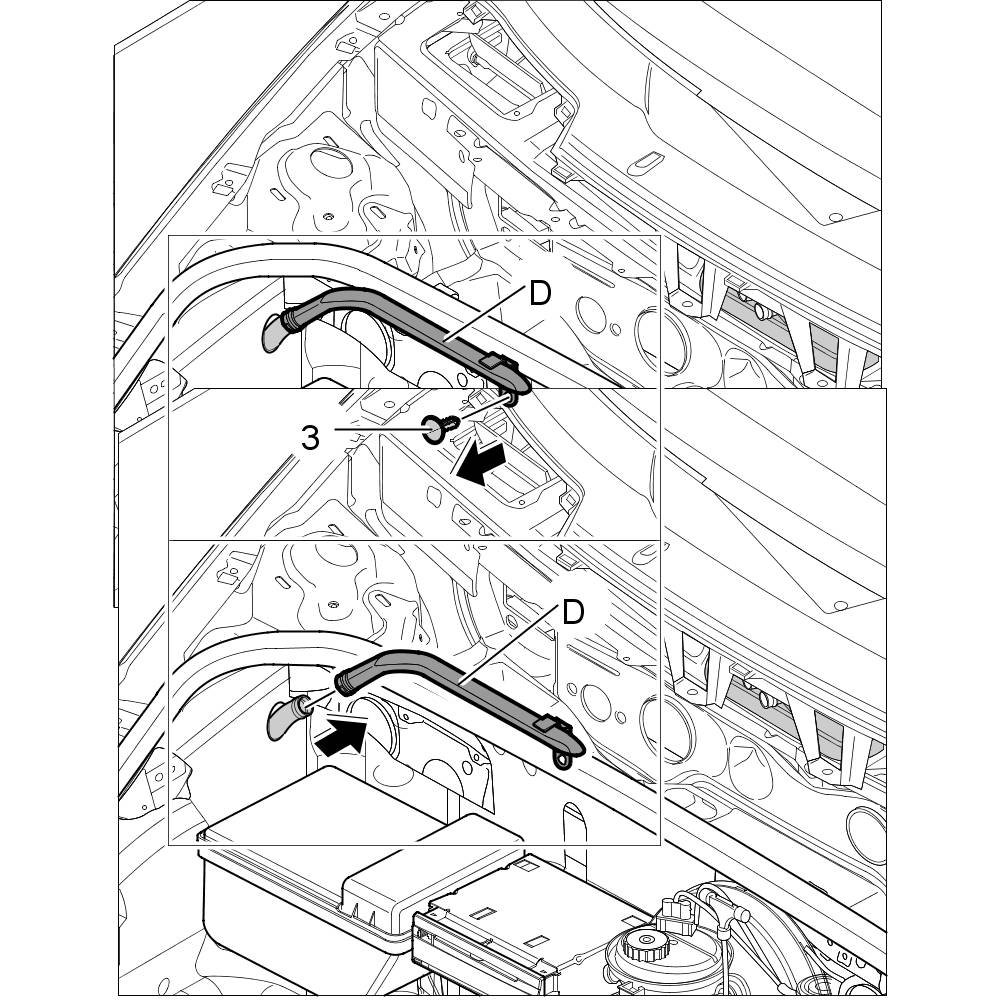

Air guide D, luggage compartment air guide for DVD navigation without carbon canister and without CD autochanger
1. Pull fastening plug -3- out of the luggage compartment.
Air guide for DVD navigation
10. Pull air guide -D- out of the connection.

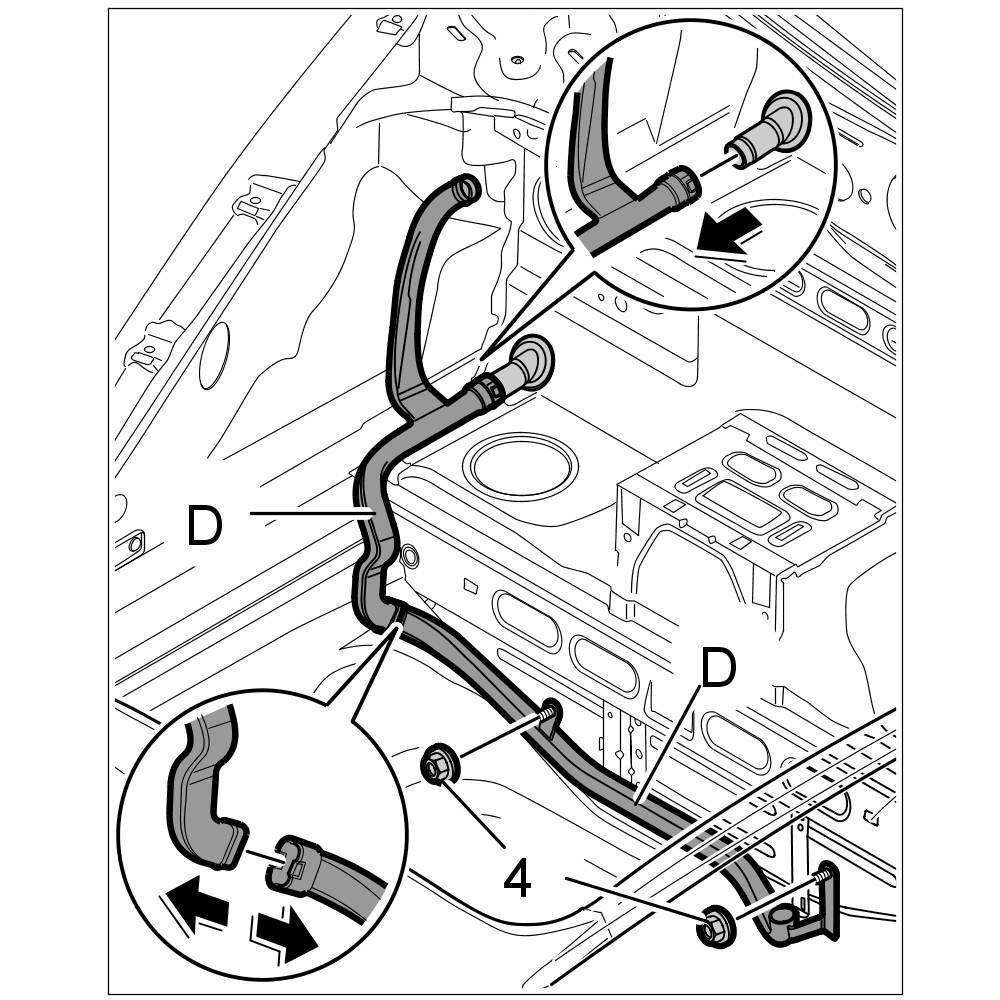

Air guide D, luggage compartment air guide for booster
1. Unscrew the fastening nuts -4- securing the air guide for the booster.
Booster air guide
12. Remove booster air guide -D- from the body and pull out of the upper air guide.
13. Pull upper part of booster air guide -D- out of the connection to the plenum panel.
Removing air guide in luggage compartment
Air guide A for heater/air-conditioning unit
1. Pull off port plate from the body.
Removing port plate
2. Unscrew fastening screw -1- for the air guide -A- and pull the air guide out of the heater/air-conditioning unit.
Removing air guide from heater/air-conditioning unit
Air guide B, plenum panel air guide
1. Unclip cable holder from the air guide.
Pulling air guide out of connection points
5. Pull air guide -B- out of air guide -A- and then out of air guide -C-.
Air guide C, bulkhead air guide
1. Pull air guide -C- out of connection -D-.
Bulkhead air guide
7. Twist air guide -C- and pull down and out of the body.
Air guide D, luggage compartment air guide for DVD navigation with carbon canister and with CD autochanger
1. Unscrew fastening screw -2- for the air guide at the CD autochanger support.
Air guide for DVD navigation
9. Pull air guide -D- out of the connection.
Air guide D, luggage compartment air guide for DVD navigation without carbon canister and with CD autochanger
1. Pull fastening plug -3- out of the luggage compartment.
Air guide for DVD navigation
11. Pull air guide -D- out of the connection.
Air guide D, luggage compartment air guide for DVD navigation without carbon canister and without CD autochanger
1. Pull fastening plug -3- out of the luggage compartment.
Air guide for DVD navigation
13. Pull air guide -D- out of the connection.
Air guide D, luggage compartment air guide for booster
1. Unscrew the fastening nuts -4- securing the air guide for the booster.
Booster air guide
15. Remove booster air guide -D- from the body and pull out of the upper air guide.
16. Pull upper part of booster air guide -D- out of the connection to the plenum panel.

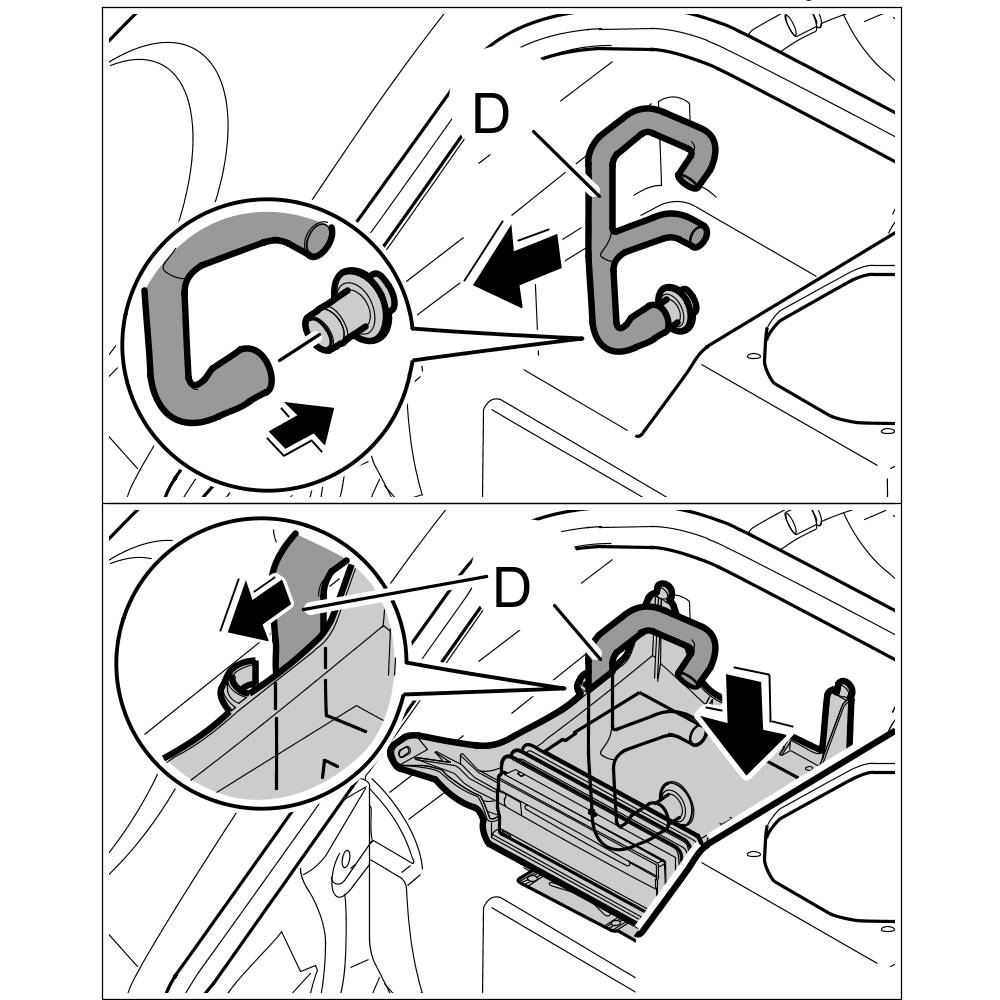

Air guide D, luggage compartment air guide for booster for RoW version
17. Unhook component holder and remove.
Booster air guide
18. Pull air guide -D- out of connection piece and remove.
Installing air guide in luggage compartment
Air guide D, luggage compartment air guide for booster
1. Insert upper part of booster air guide -D- into the connection to the plenum panel.
Booster air guide
2. Route booster air guide -D- around the body and insert into the upper air guide.
3. Screw down the air guide -D- for the booster using the two fastening screws -4-.
Air guide D, luggage compartment air guide for DVD navigation without carbon canister and without CD autochanger
1. Connect the air guide -D- to the connection.
Air guide for DVD navigation
6. Secure air guide to the body with the fastening plug -3-.
Air guide D, luggage compartment air guide for DVD navigation without carbon canister and with CD autochanger
1. Connect the air guide -D- to the connection.
Air guide for DVD navigation
8. Secure air guide -D- to the body with the fastening plug -3-.
Air guide D, luggage compartment air guide for DVD navigation with carbon canister and with CD autochanger
1. Connect the air guide -D- to the connection.
Air guide for DVD navigation
10. Screw down the air guide to the CD autochanger support with the fastening screw -2-.

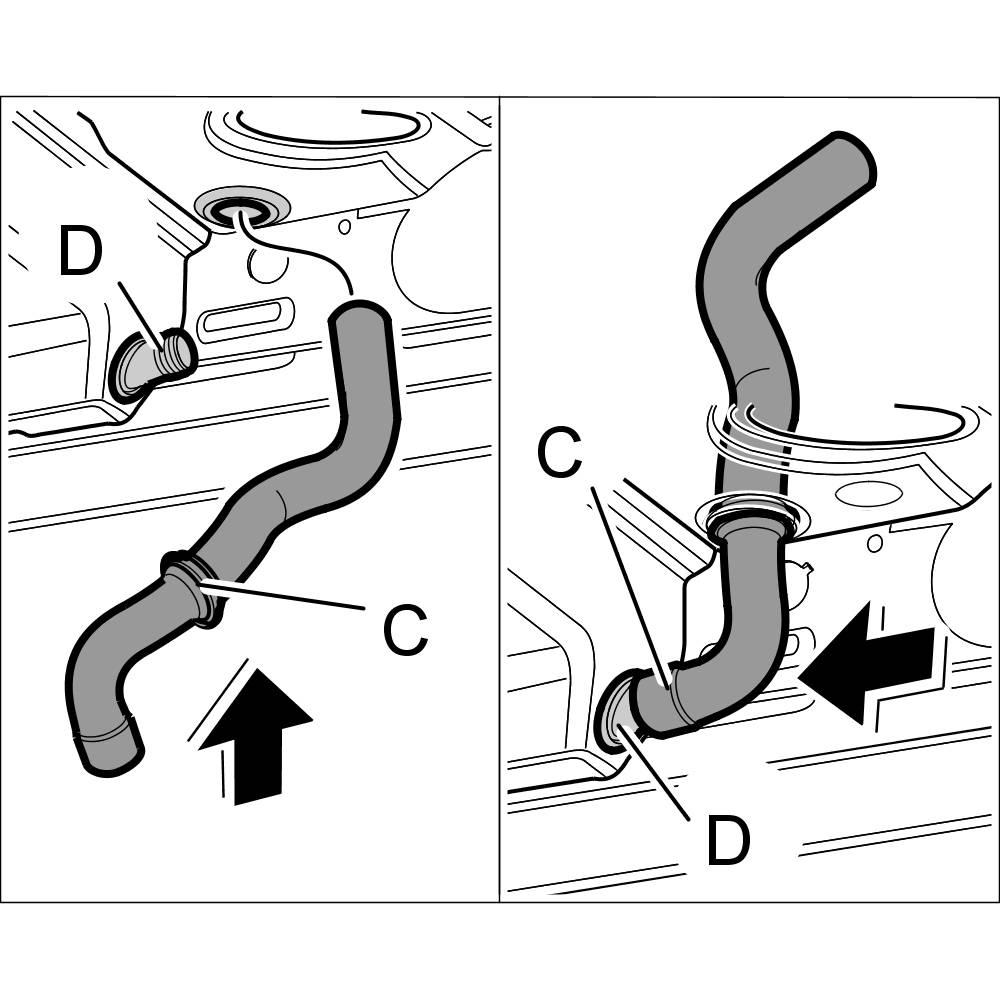

Air guide C, bulkhead air guide
1. Slide air guide -C- into the opening in the body from below and position correctly by turning.
Bulkhead air guide
12. Insert air guide -C- into the connection -D-.

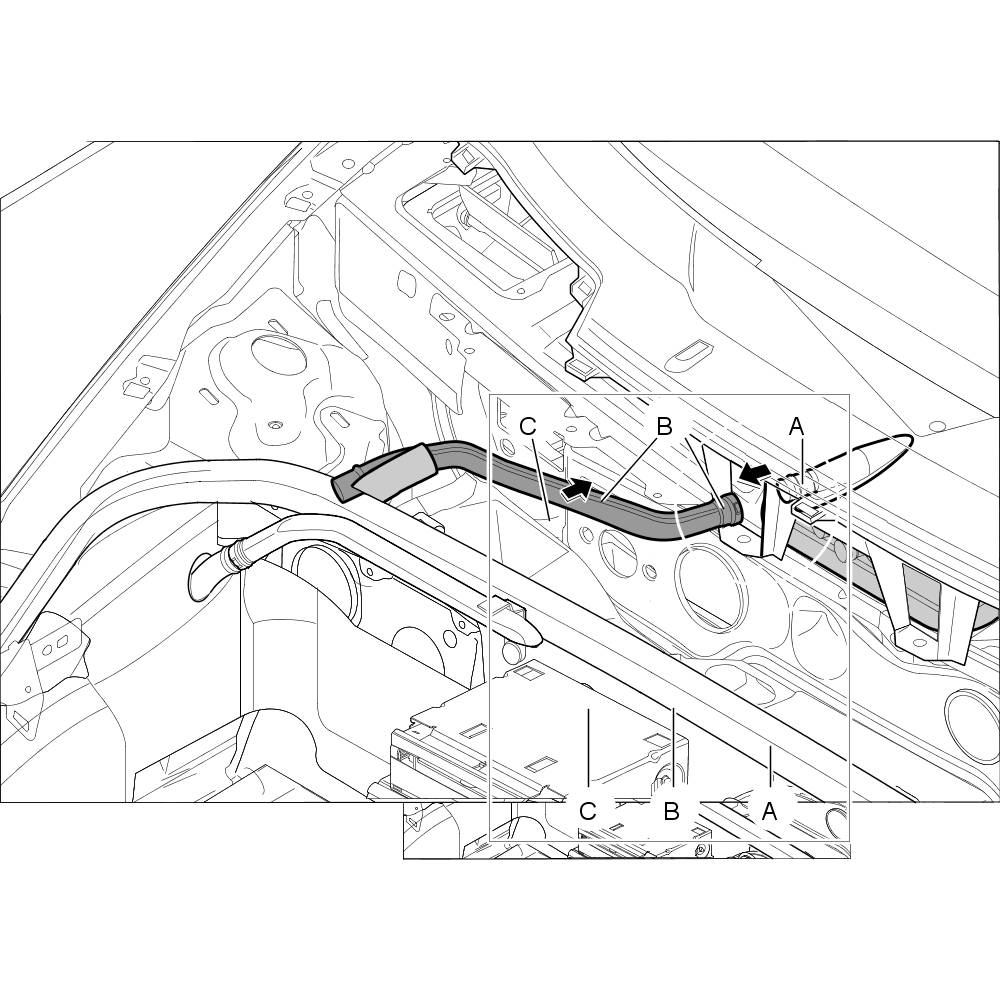

Air guide B, plenum panel air guide
1. Position air guide -B- and insert into the air guide -A- and -C-.
Plenum panel air guide
14. Clip cable holder into the air guide.
Air guide A, heater/air-conditioning unit
1. Press air guide -A- into the heater/air-conditioning unit, clip in place and screw down using the fastening screw -1-.
Air guide on heater/air-conditioning unit
16. Press down seal for port plate firmly and evenly all round.
Installing air guide in luggage compartment

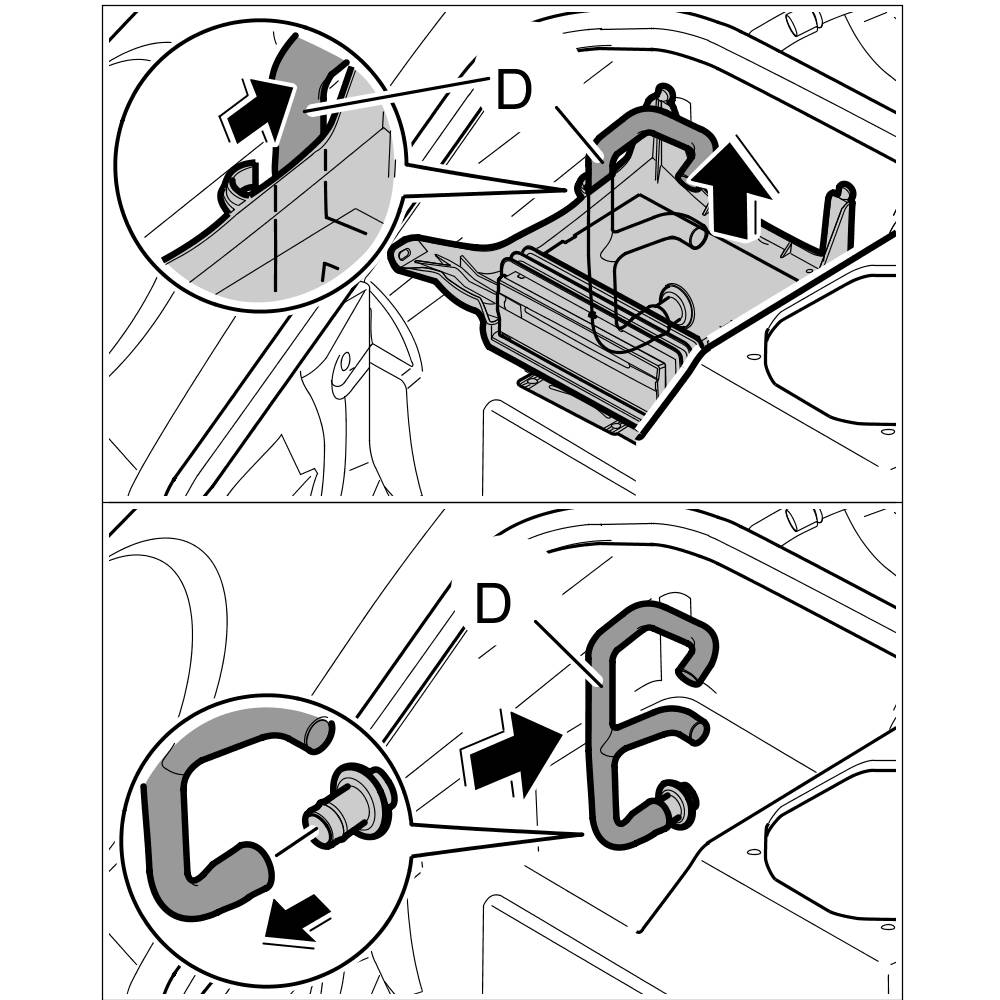

Air guide D, luggage compartment air guide for booster for RoW version
1. Connect air guide -D- to the adapter.
Booster air guide
2. Insert component holder and hook in air guide -D-.
Air guide D, luggage compartment air guide for booster
3. Insert upper part of booster air guide -D- into the connection to the plenum panel.
Booster air guide
4. Route booster air guide -D- around the body and insert into the upper air guide.
5. Screw down the air guide -D- for the booster using the two fastening screws -4-.
Air guide D, luggage compartment air guide for DVD navigation without carbon canister and without CD autochanger
1. Connect the air guide -D- to the connection.
Air guide for DVD navigation
8. Secure air guide -D- to the body with the fastening plug -3-.
Air guide D, luggage compartment air guide for DVD navigation without carbon canister and with CD autochanger
1. Connect the air guide -D- to the connection.
Air guide for DVD navigation
10. Secure air guide -D- to the body with the fastening plug -3-.
Air guide D, luggage compartment air guide for DVD navigation with carbon canister and with CD autochanger
1. Connect the air guide -D- to the connection.
Air guide for DVD navigation
12. Screw down air guide -D- to the CD autochanger support with the fastening screw -2-.
Air guide C, bulkhead air guide
1. Slide air guide -C- into the opening in the body from below and position correctly by turning.
Bulkhead air guide
14. Insert air guide -C- into the connection -D-.
Air guide B, plenum panel air guide
1. Position air guide -B- and insert into the air guide -A- and -C-.
Plenum panel air guide
16. Clip cable holder into the air guide.
Air guide A, heater/air-conditioning unit
1. Press air guide -A- into the heater/air-conditioning unit, clip in place and screw down using the fastening screw -1-.
Air guide on heater/air-conditioning unit
18. Press down seal for port plate firmly and evenly all round.
Subsequent work

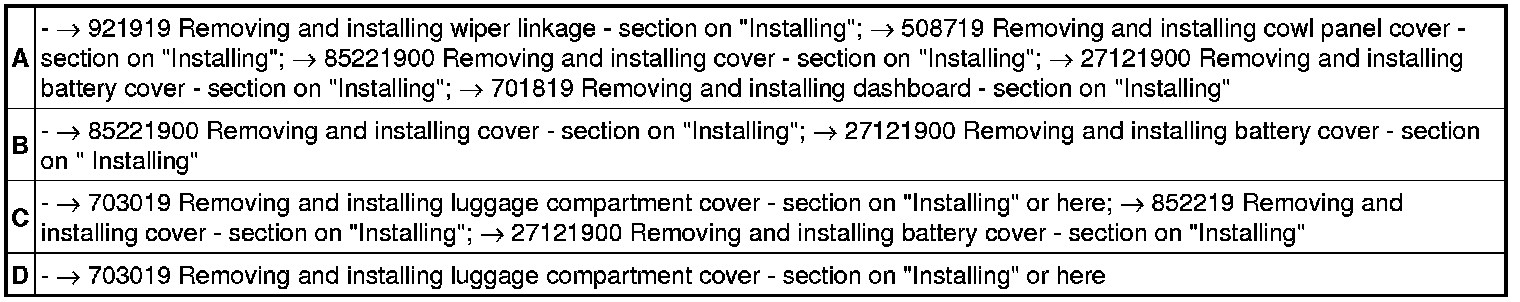

Subsequent work for air guide in luggage compartment
Installation position, shown for the 911
