Glove Compartment Lock: Service and Repair

WM 681119 Removing and installing glove compartment lock

Removing glove compartment lock

Removing and installing support for glove compartment lid

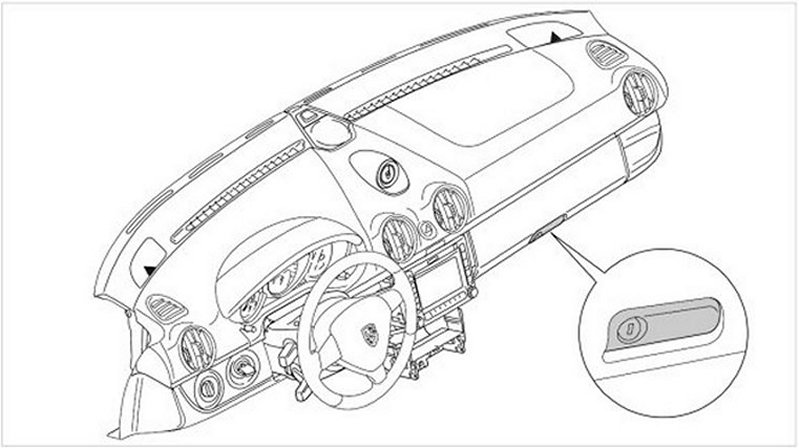

Installation position of glove compartment lock

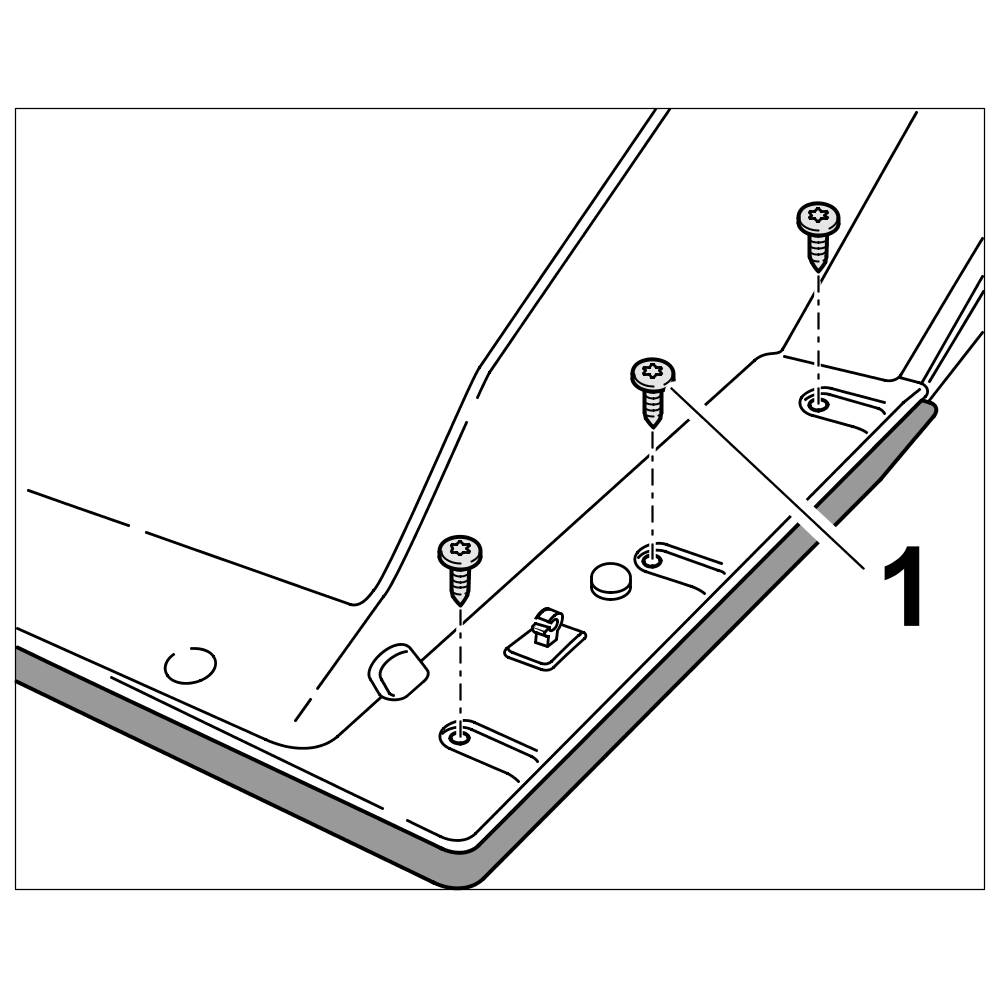

1. Unscrew fastening screws at the side -1-.





Releasing support for glove compartment

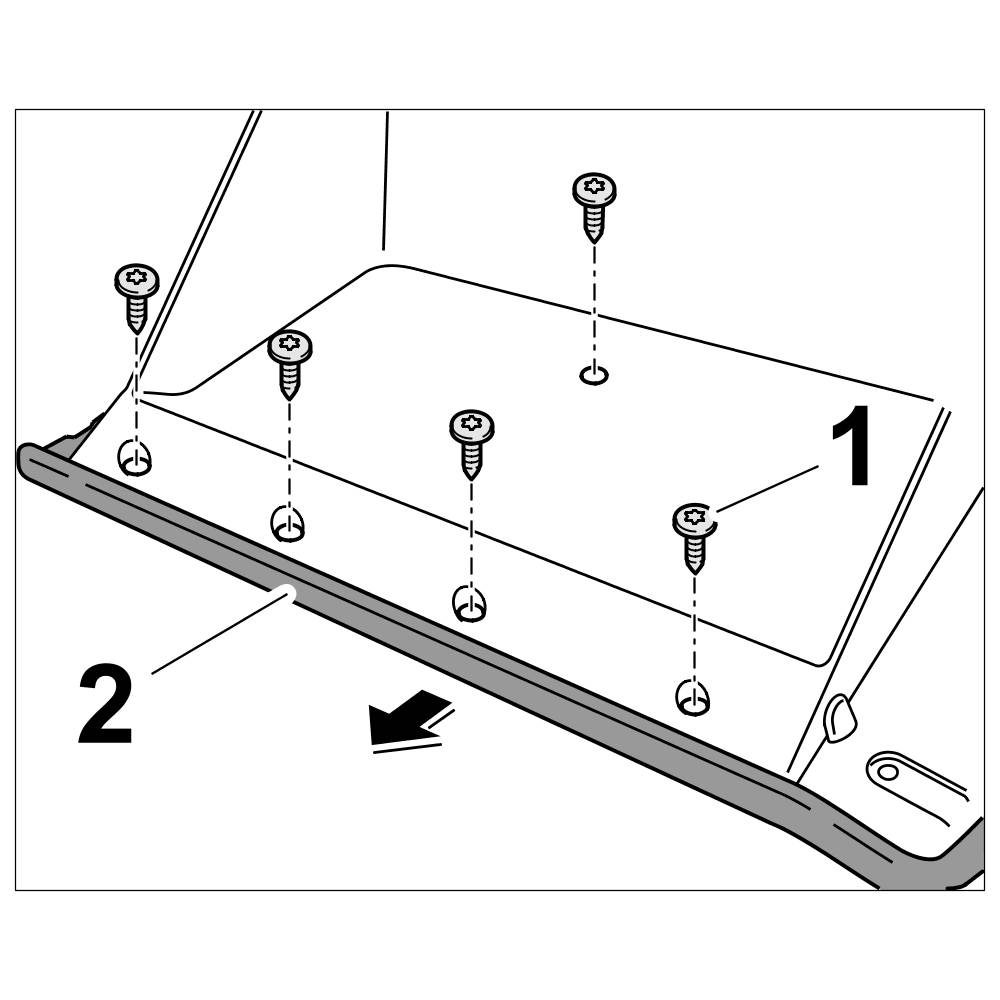

2. Unscrew fastening screws at the front -1- and remove support for glove compartment lid -2-.





Removing support for glove compartment

Removing glove compartment lid lock





Installation position of glove compartment lock

Information

- The lock barrel for the glove compartment can only be removed when replacing the handle.

- Removing the lock barrel can damage the handle.

1. Unscrew fastening screws -1-.





Removing glove compartment lock

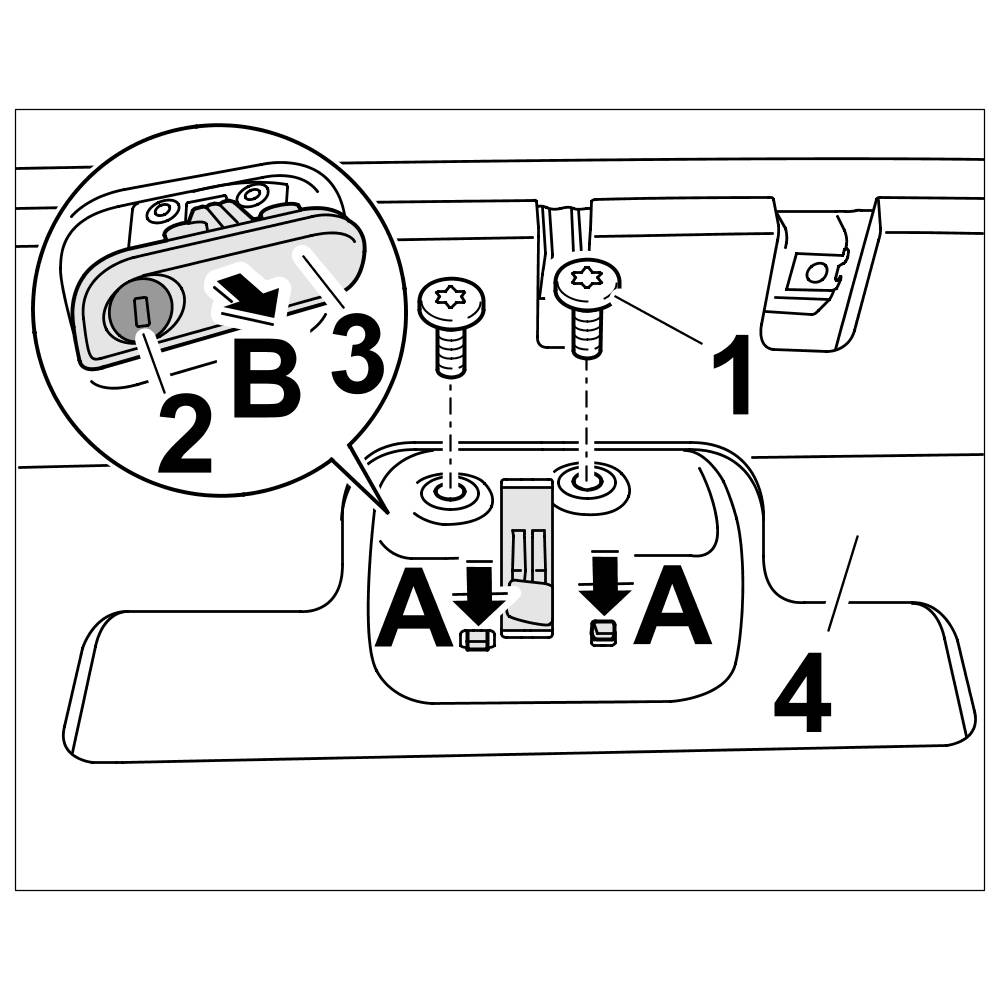

2. Loosen the locking tabs slightly -Arrow A- and remove the handle -3- with the glove compartment lock -2- out of the support for the glove compartment -4-.

Installing glove compartment lock





Installation position of glove compartment lock

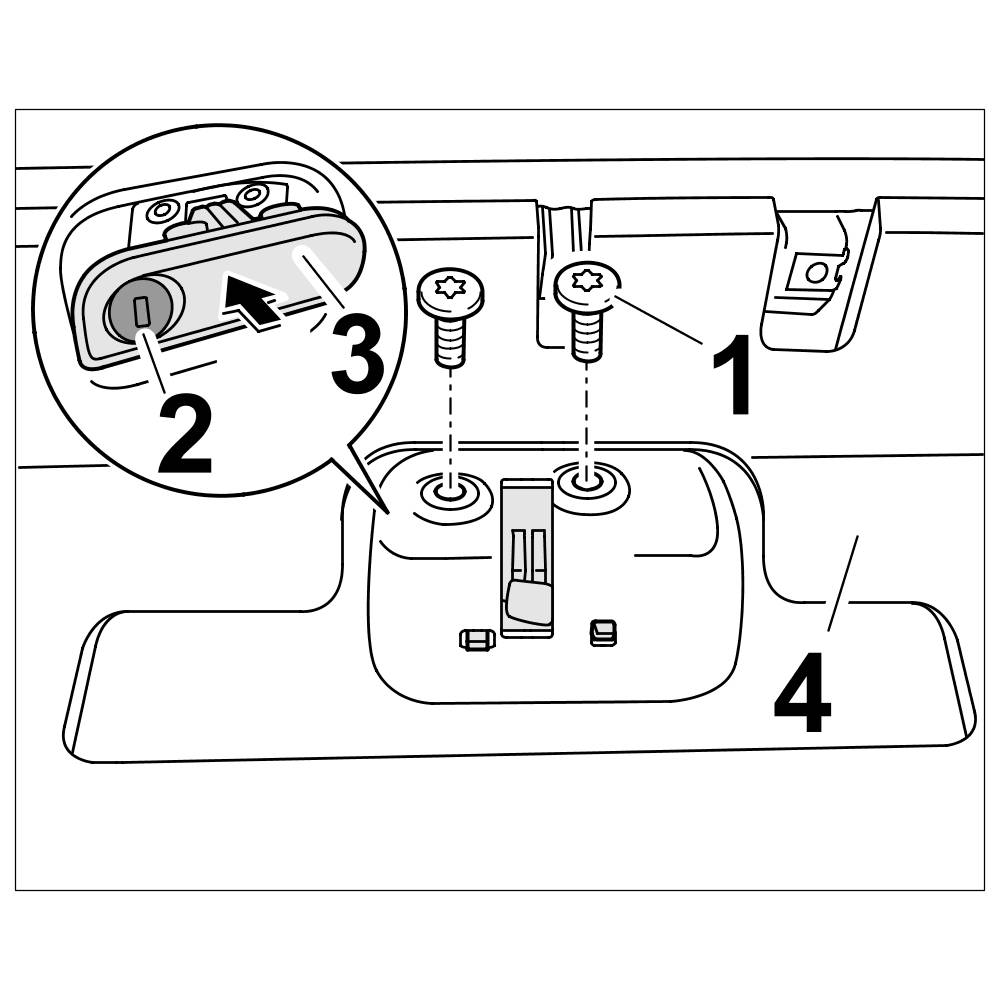

1. Position the handle -3- with the glove compartment lock -2- in the support for the glove compartment lid -4- ( -arrow- ) and secure in position with the fastening screws -1-.





Installing glove compartment lock

Installing support for glove compartment lid





Installation position of glove compartment lock

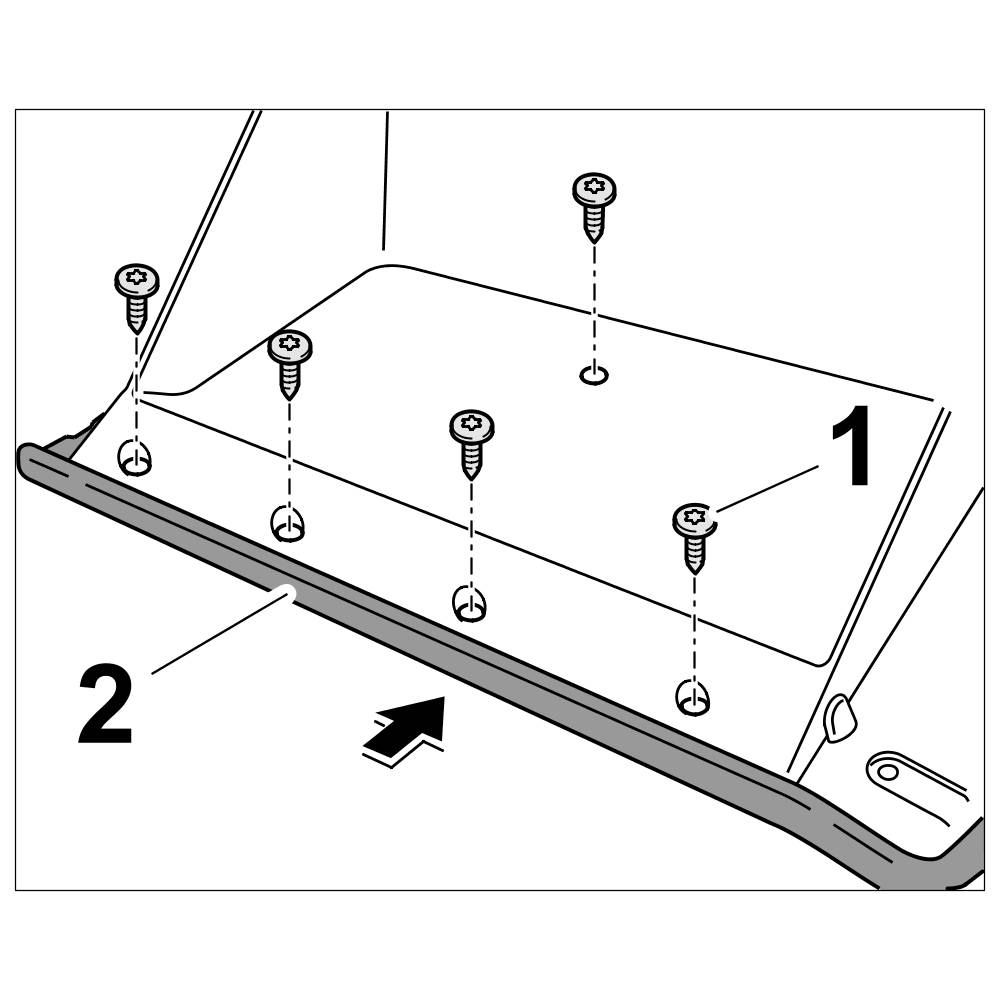

1. Position support for glove compartment lid -2- on the glove compartment lid -arrow- and screw in the fastening screws at the front -1-.





Installing support for glove compartment

2. Screw in fastening screws at the side -1-.





Securing support for glove compartment
