Rear Fender Liner: Service and Repair

Removing And Installing Rear Wheel Housing Liner

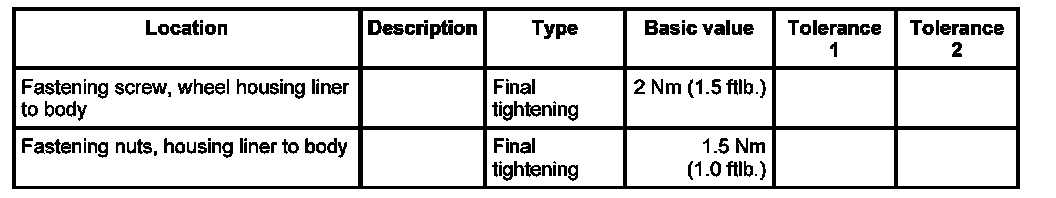

Technical values







Preliminary work
Remove wheel.

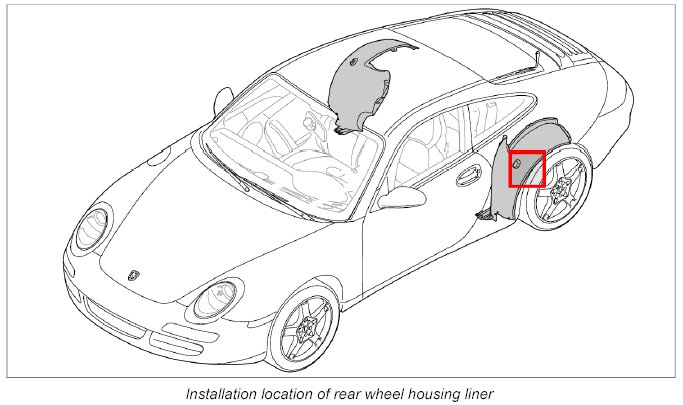

Removing rear wheel housing liner







INFORMATION: Fastening nuts cannot be used again following removal.


1. Unscrew fastening screws -1- and fastening nuts -2-.







2. Remove wheel housing liner -3-.
3. Check fastening nuts -4- and replace if necessary.

Installing rear wheel housing liner







1. Press fastening nuts -4- into the wheel housing liner -3-.
2. Insert wheel housing liner -3-.







3. Screw in fastening screws -1- and tighten to the specified tightening torque
- Final tightening: 2 Nm (1.5 ftlb.).
4. Screw on fastening nuts -2- and tighten to the specified tightening torque
- Final tightening: 1.5 Nm (1.0 ftlb.).

Subsequent work

Reworking
Install wheel.
