Removing and Installing Tire Pressure Monitoring System Antenna

WM 443819 Removing and installing tire pressure monitoring system antenna





Preliminary work

Preliminary work
1. Remove front wheel housing liner (Part A).
2. Remove rear wheel housing liner (Part A).

Removing tire pressure monitoring system antenna

Removing antenna for tire pressure monitoring system

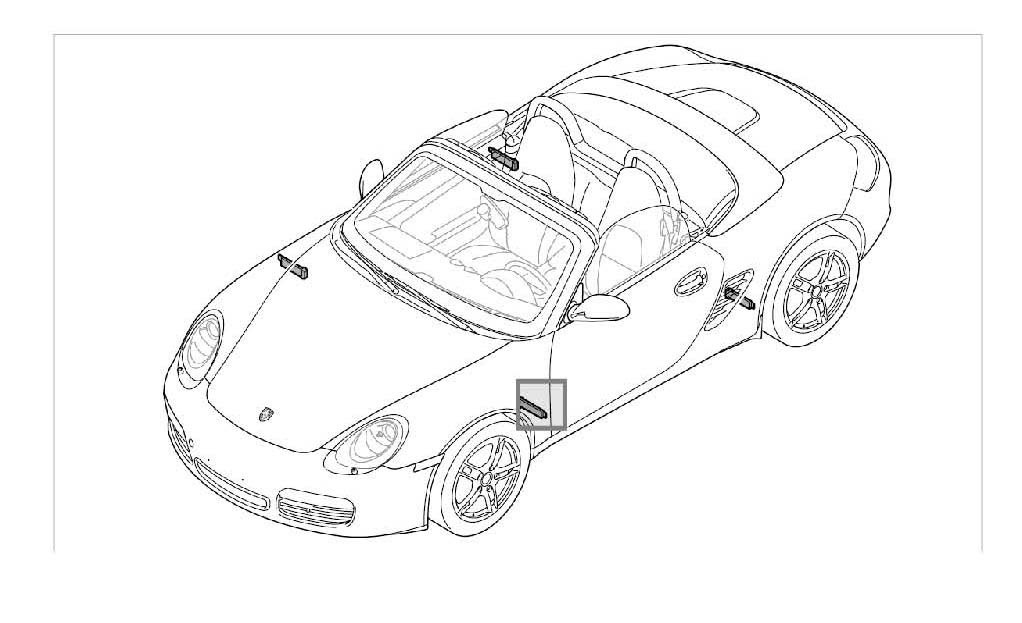

Overview of tire pressure monitoring system antenna

1. Switch off ignition and remove ignition key.

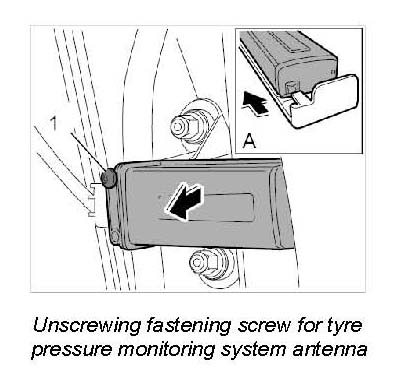

2. Unscrew fastening screw -1-.





3. Pull out antenna for tire pressure monitoring system from holder -arrow A- and remove.

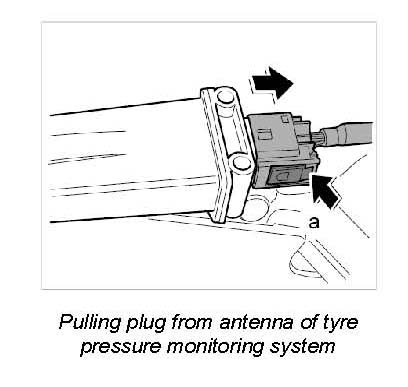

4. Release connector -arrow a-, pull off, and remove tire pressure monitoring system antenna.





Installing tire pressure monitoring system antenna

Installing antenna for tire pressure monitoring system





Overview of tire pressure monitoring system antenna

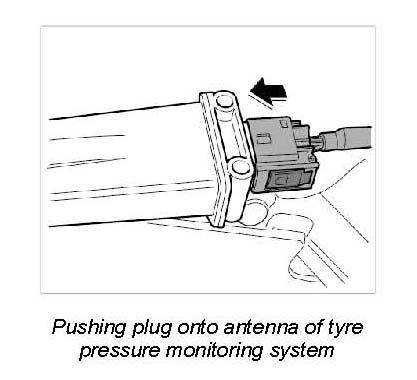

1. Insert plug until it is felt to engage.

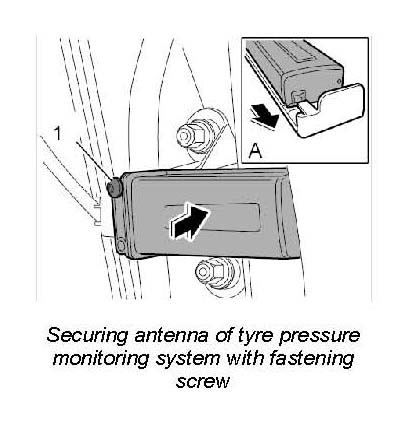

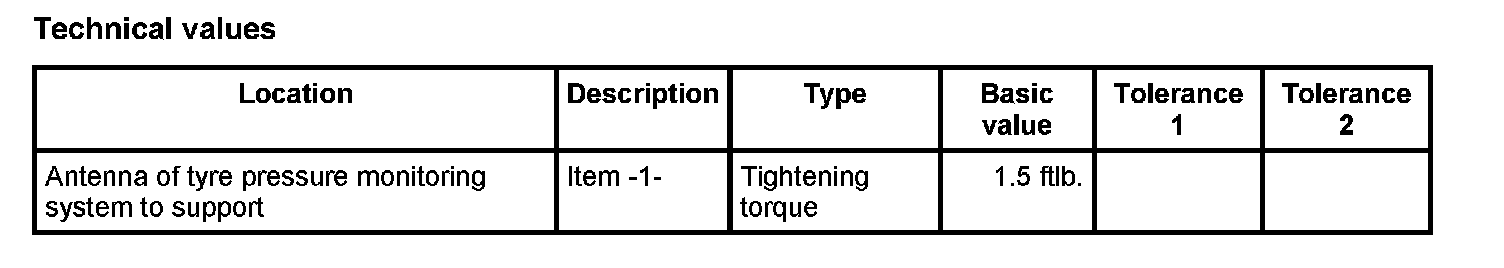

2. Insert antenna of tire pressure monitoring system into support -arrow A- and secure with fastening screw -1-. -> Tightening torque: 1.5 ftlb.





Subsequent work

Subsequent work
1. Install front wheel housing liner (Part A).
2. Install rear wheel housing liner (Part A).
