Replacing Bulb For Reading Light

Replacing Bulb For Reading Light

Removing bulb for reading light

CAUTION: Danger of damage to property if bulbs are used or handled incorrectly.
- Risk of damage to bulbs and bulb housing.

- Switch off ignition and remove ignition key.
- To prevent short circuits, the load in question must be switched off while changing bulbs.
- Only bulbs specified in the bulb table may be used.
- Bulbs with a higher wattage may damage the bulb housing.
- New bulbs must be clean and free of grease. Therefore, never touch the bulbs with your bare hands. Use a cloth or soft paper when changing bulbs.
- In certain states, it is compulsory to carry spare light bulbs.

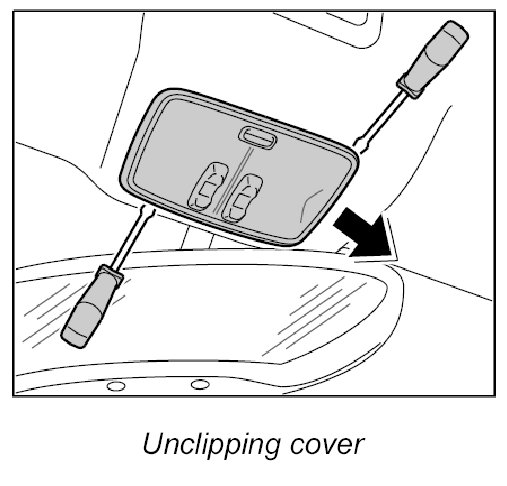

1. Carefully unclip cover for the interior light at top and bottom using a small screwdriver.

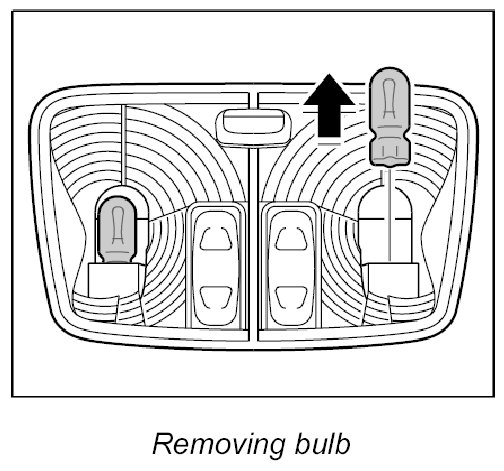

2. Remove defective bulb from the mounting.

Installing bulb for reading light







1. Insert new bulb into the bulb holder.

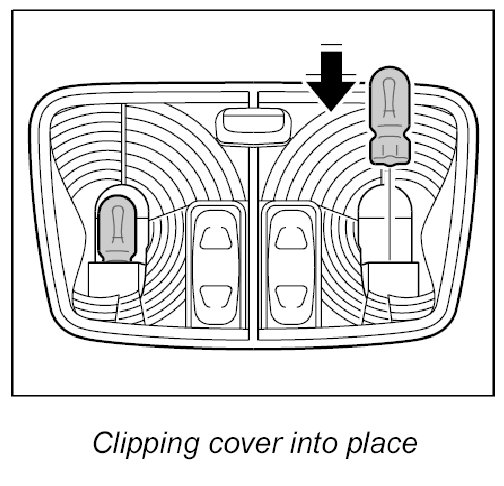

2. Position the cover and clip into place.
