Body - Aerokit(R) Retrofitting: Overview

Tequipment
6/07 ENU 6658 6

Aerokit (I-no. XAM) Installation Instructions

Vehicle Type:
Cayman/Cayman S

Model Year:
As of 2006

Situation:
Retrofitting





Note:

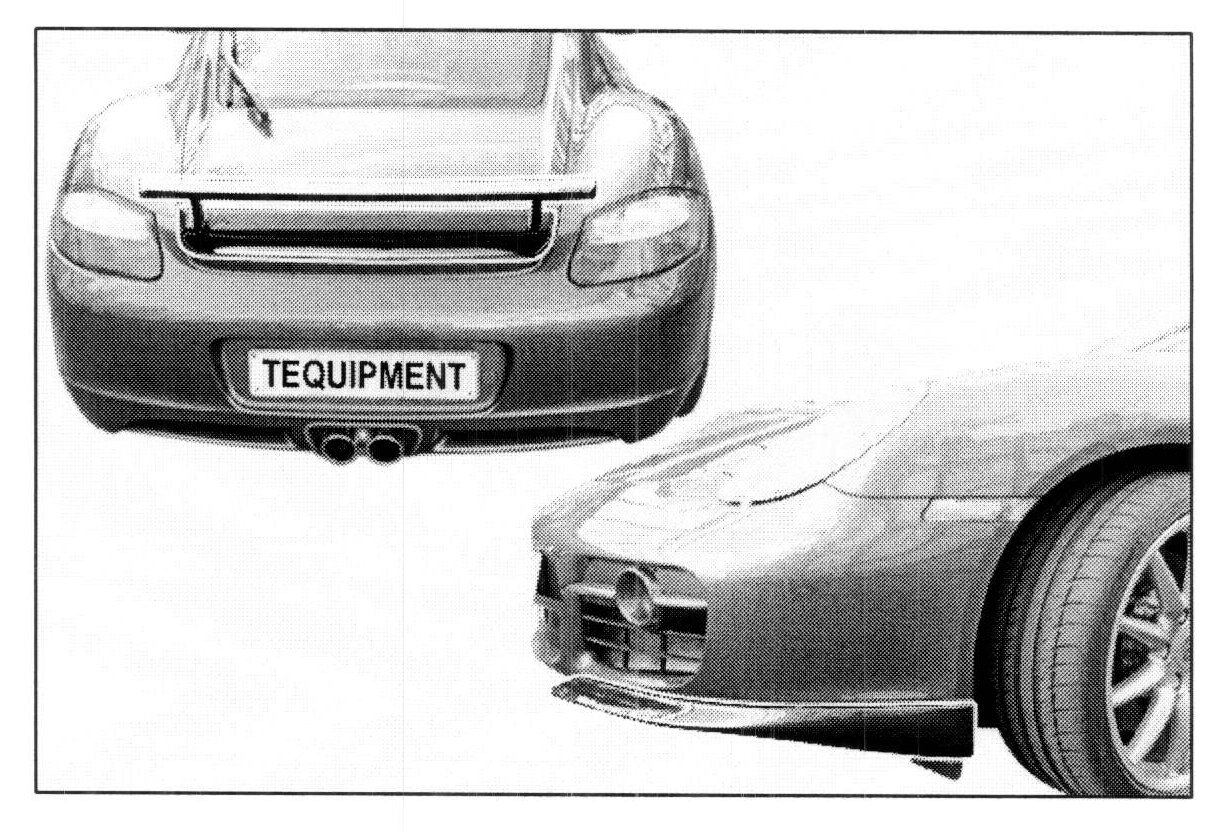

The Aerokit consists of two new spoiler lips for the front apron and a fixed spoiler for the rear lid. The standard retracting spoiler and the logo on the rear lid must be removed.

The model logo, which must be ordered separately as a replacement part, can be installed in a new position on the rear lid if necessary.

All painted parts are supplied ready-primed and can be painted according to the vehicle's color code. The components have been tested and approved together. Individual parts cannot be fitted.

The Aerokit is also available as an factory installed option for new vehicles by requesting optional equipment "XAM".

Parts Info:
987.044.802.08 =>Aerokit -ready-primed-, complete

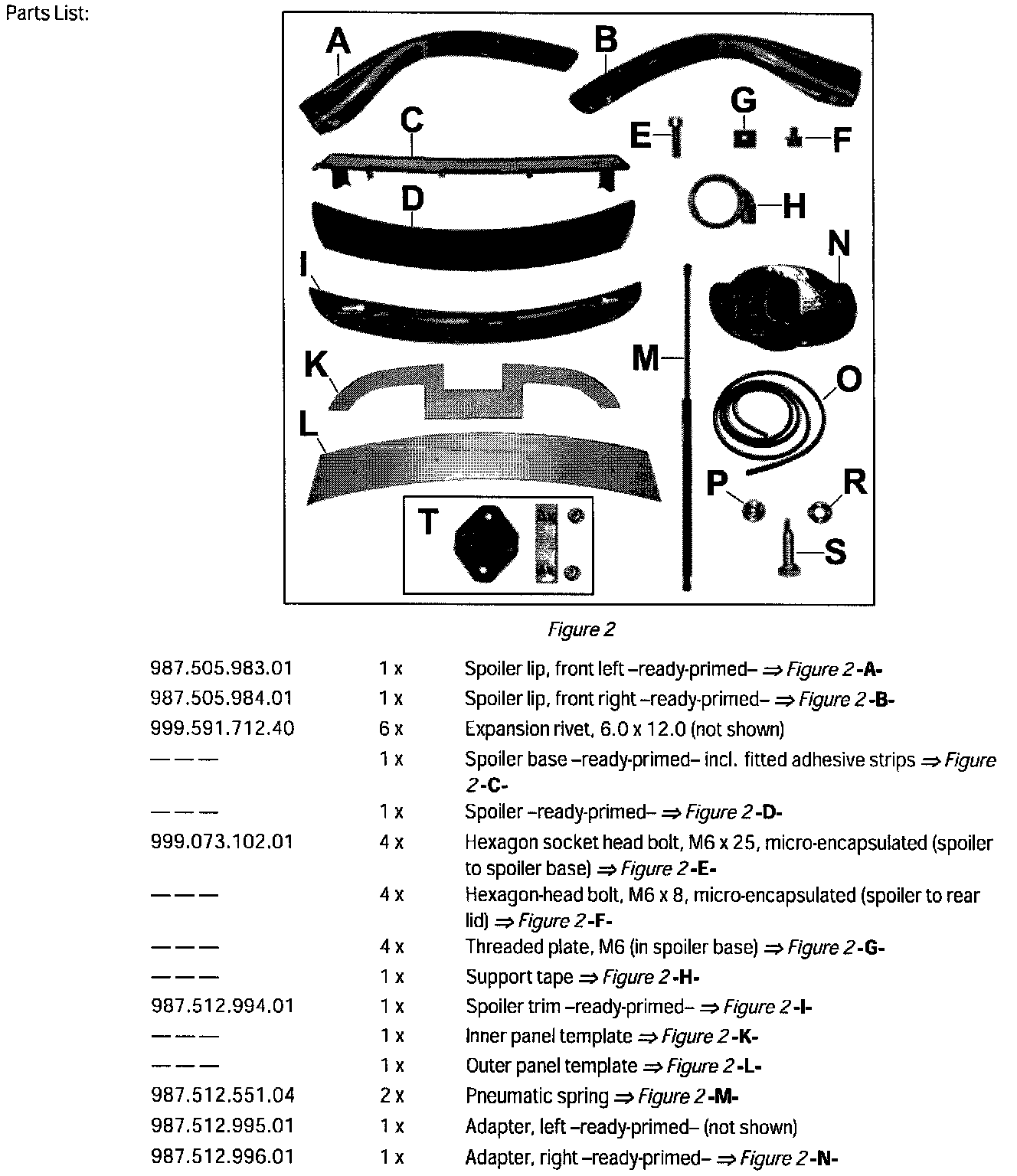

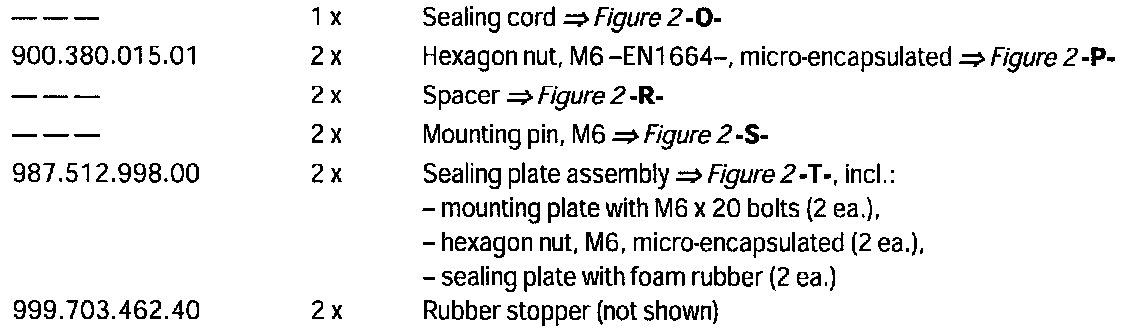

Parts List

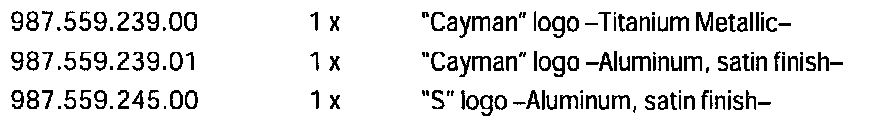

Spare Parts

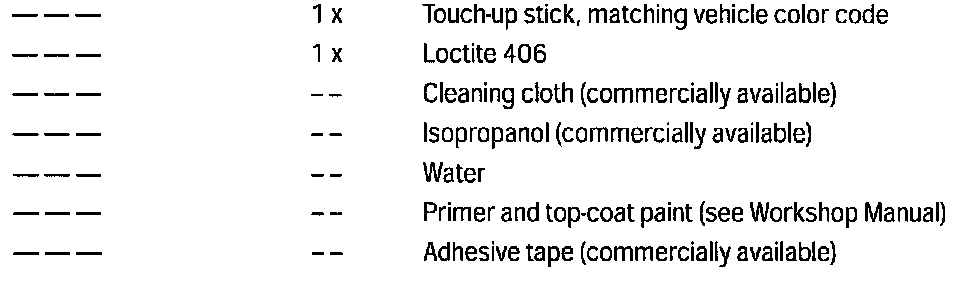

Materials

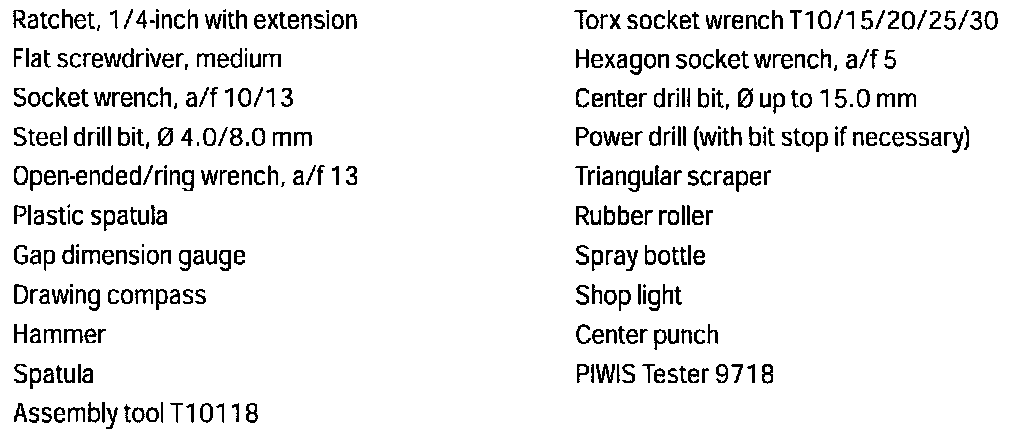

Tools

ATTENTION:
Different approach angle compared to standard vehicle

^ Risk of damage to components

-> Avoid steep ascents, descents or ramps wherever possible.

-> Always drive according to the prevailing driving conditions.

ATTENTION:
Incorrect and improper use of new accessories

^ Risk of damage to components or to the vehicle

-> Never use the spoiler to push the vehicle.

-> Do not use force when opening and closing the rear lid.

-> Observe specified gap dimensions for new accessories with respect to adjacent components and fit new accessories accordingly.

ATTENTION:
Cleaning the vehicle

^ Risk of damage to the vehicle, paintwork and components

-> When washing the vehicle in an automatic car wash, check that the spoiler is detected by the light barriers.

-> If in doubt, seek the advice of the operator of the automatic car wash.

-> Only use cleaning agents listed in the car manual.

Note;
Please pass this information onto the customer as well.

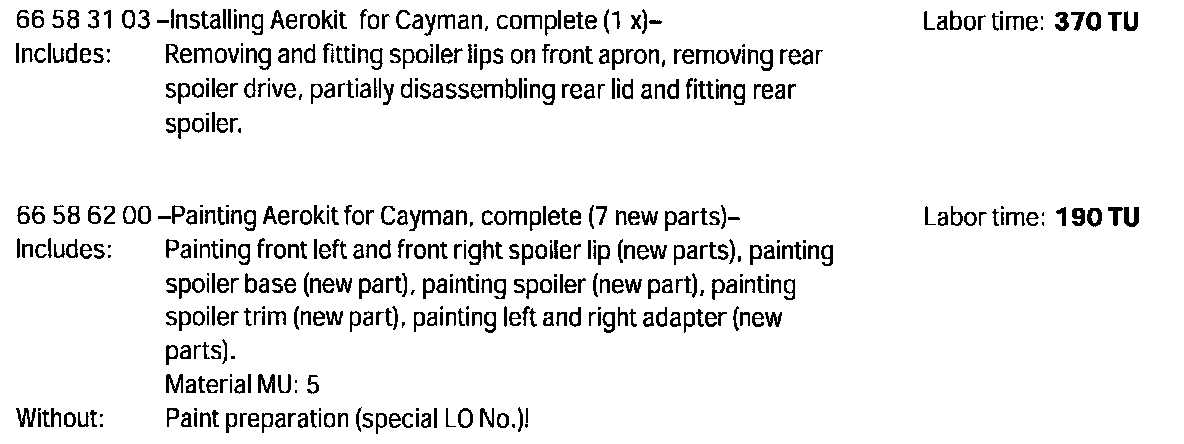

Working Time

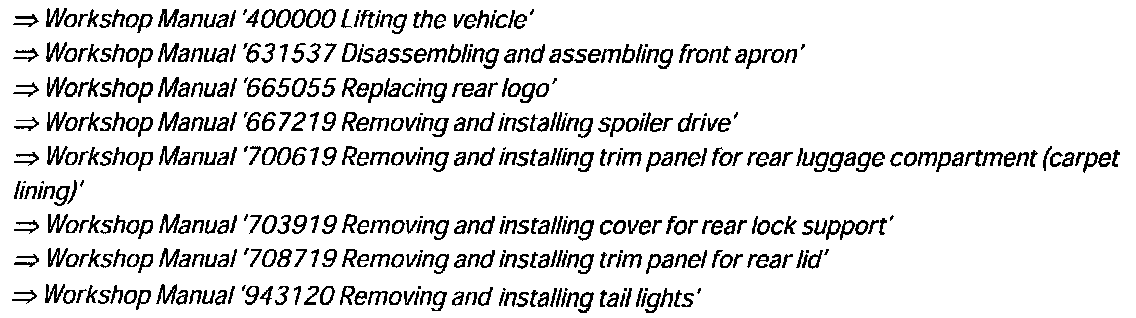

References





Disclaimer
