Removing and Installing Transmitter (Trigger) For TPM

Removing and installing transmitter (trigger) for TPM

Preliminary work

1. Remove front wheel housing liner (part A).
2. Remove rear wheel housing liner (part A).

Removing transmitter (trigger) for TPM

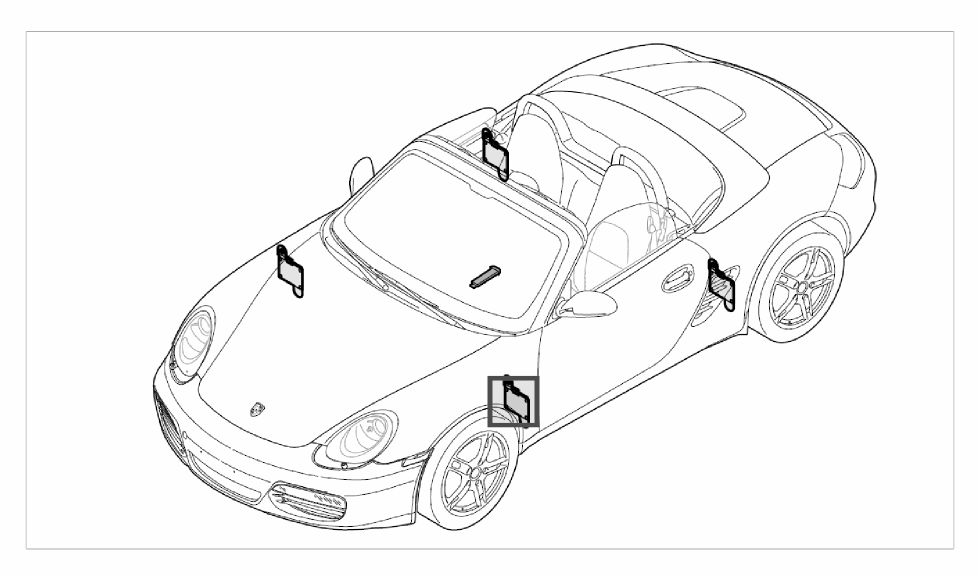

Installation position of TPM antenna

Notice
Voltage peaks
Risk of damage to load or to the control unit

- Remove the ignition key and switch off load before disconnecting or removing load.

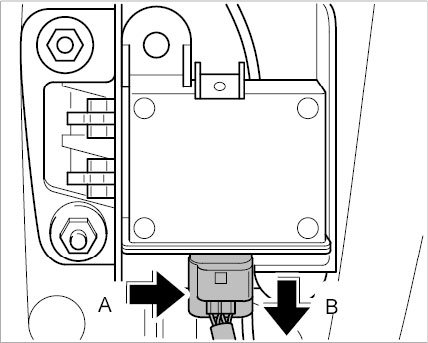

1. Release -arrow A- and pull off -arrow B- connector.





Pulling off connector

2. Remove transmitter (trigger) for tire pressure monitoring system (TPM).

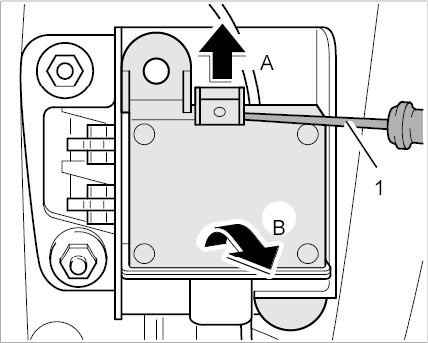

2.1. Release the holder -1- using a screwdriver -arrow A-.
2.2. Remove transmitter (trigger) for TPM from the holder -arrow B-.





Removing transmitter (trigger) for TPM

Installing transmitter (trigger) for TPM

1. Install transmitter (trigger) for tire pressure monitoring system (TPM).

Information
Ensure that lines are routed correctly!

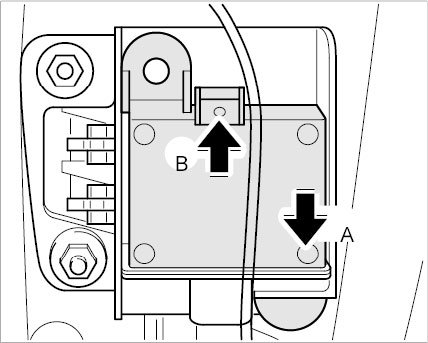

1.1. Fit transmitter (trigger) for TPM into the holder -arrow A-.
1.2. Press transmitter (trigger) for TPM into the holder -arrow B- until the holder engages securely.





Installing transmitter (trigger) for TPM

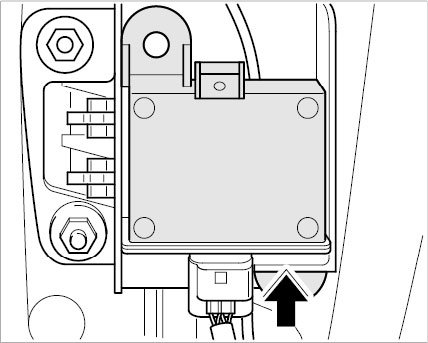

2. Plug in the connector -arrow- until it engages securely.





Plugging in connector

Subsequent work

1. Install front wheel housing liner (part A).
2. Install rear wheel housing liner (part A).
