96415500 Replacing bulb for luggage compartment light

WM 964155 Replacing bulb for luggage compartment light

Removing bulb for luggage compartment light

Removing luggage compartment light

CAUTION

Danger of damage to property if bulbs are used or handled incorrectly!

- Risk of damage to bulbs and bulb housing.

-> Switch off ignition and remove ignition key.
-> To prevent short circuits, the load in question must be switched off while changing bulbs.
-> Only bulbs specified in the bulb table may be used.
-> Bulbs with a higher wattage may damage the bulb housing.
-> New bulbs must be clean and free of grease. Therefore, never touch the bulbs with your bare hands. Use a cloth or soft paper when changing bulbs.
-> In certain states, it is compulsory to carry spare light bulbs.

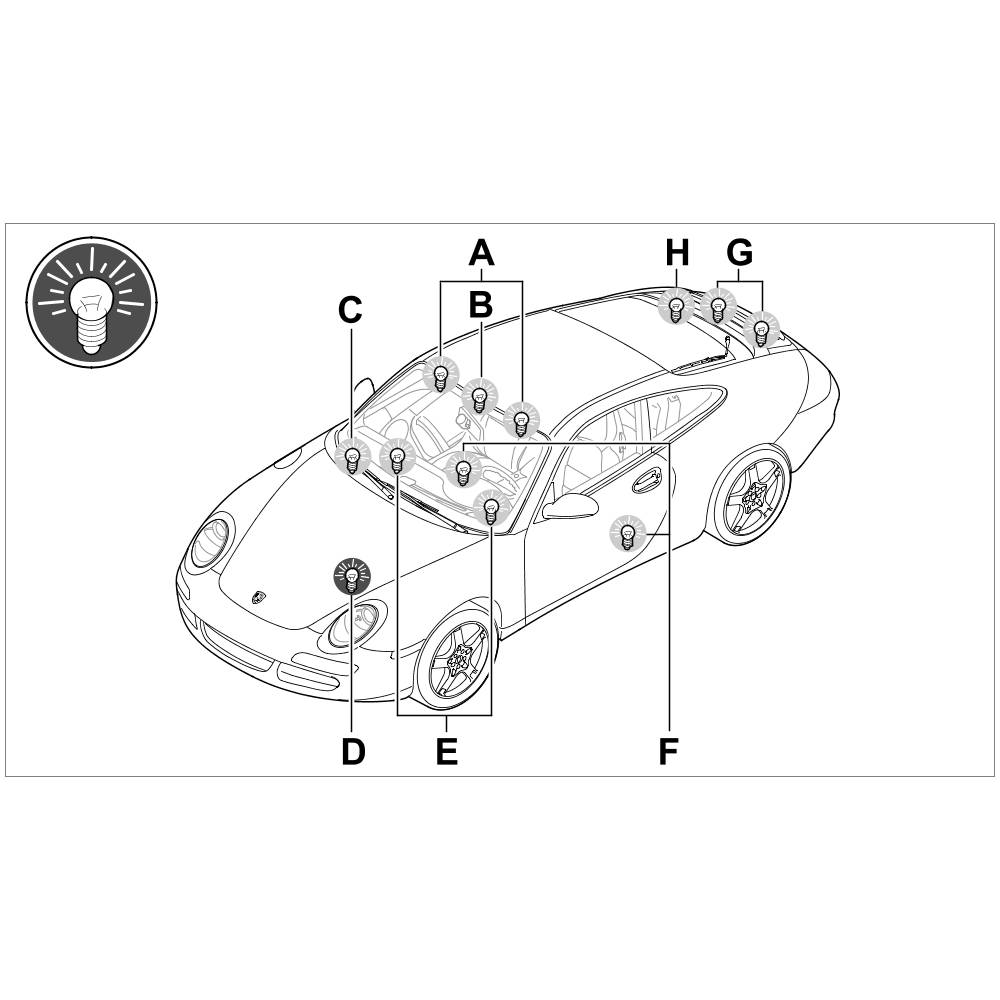

Overview of luggage compartment light, shown on the 911

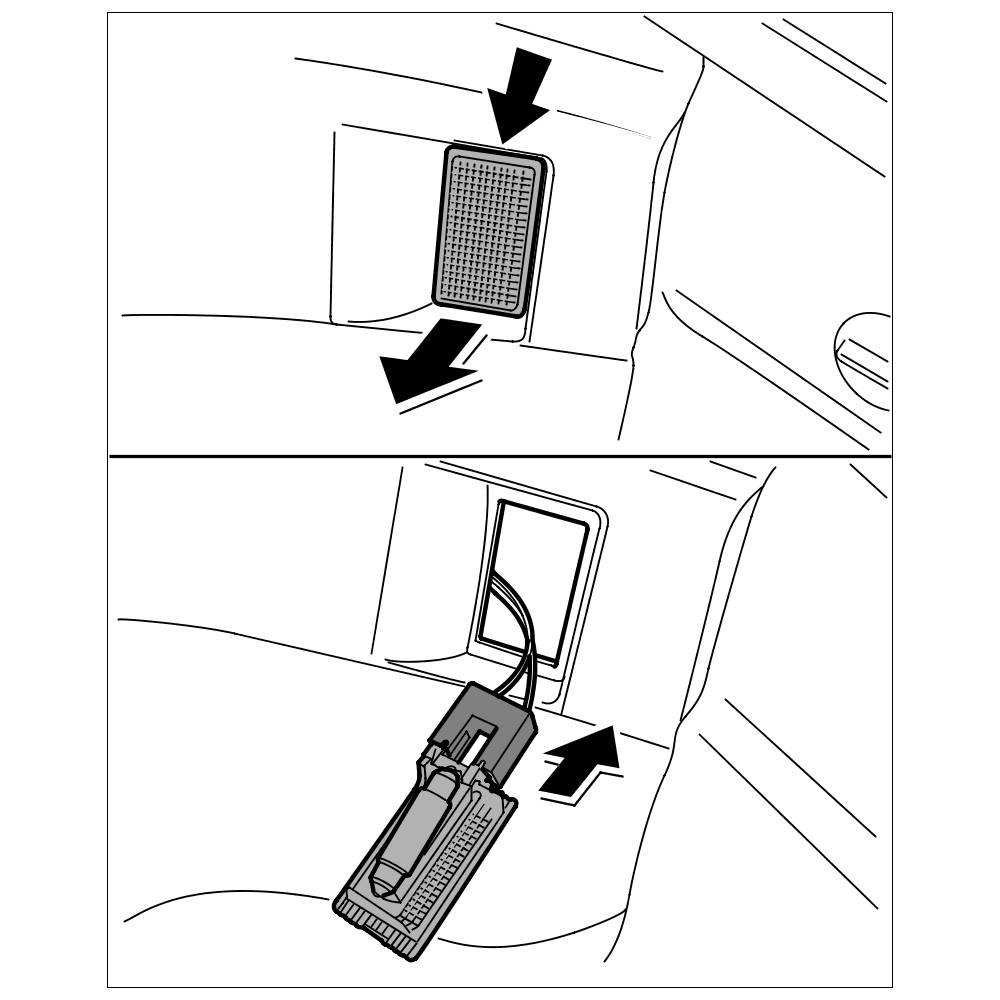

1. Press luggage compartment light carefully out of the luggage compartment trim at the cutout -arrow- using a screwdriver.





Removing luggage compartment light

2. Pull off plug on luggage compartment light and remove luggage compartment light.

Removing bulb for light

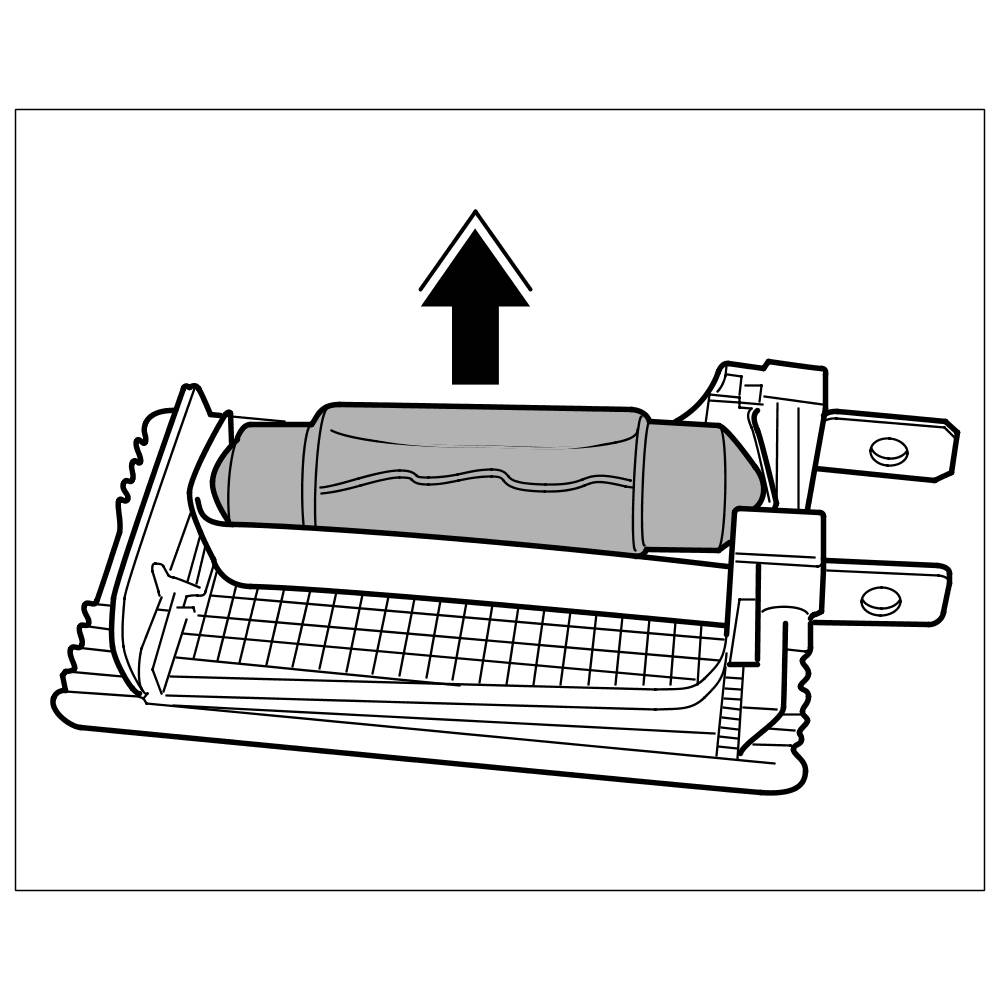

1. Remove defective bulb from between the contact springs.





Removing bulb for light

Installing bulb for luggage compartment light

Installing bulb for light

Information

Only use the relevant bulb specified in the bulb table => IN - Bulb table and installation instructions - "Information".

1. Insert new bulb into the contact springs.





Installing bulb for light

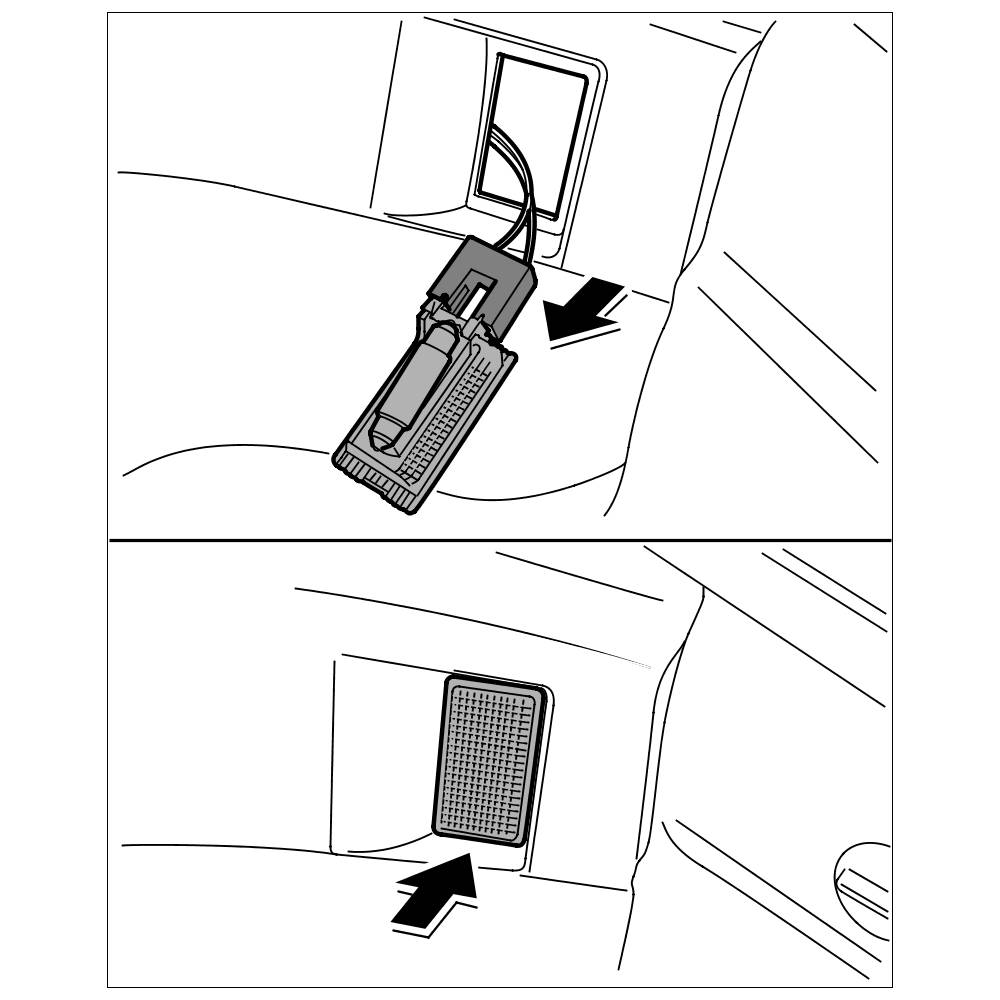

Installing luggage compartment light





Overview of luggage compartment light, shown on the 911





1. Attach plug on luggage compartment light.





Installing luggage compartment light

2. Press luggage compartment light into the luggage compartment lining.
