Rear Door Window Glass Weatherstrip: Service and Repair

WM 647619 Removing and installing side window seal

Preliminary work

1. Remove side window. -> 647519 Removing and installing side window - section on "removing" Service and Repair

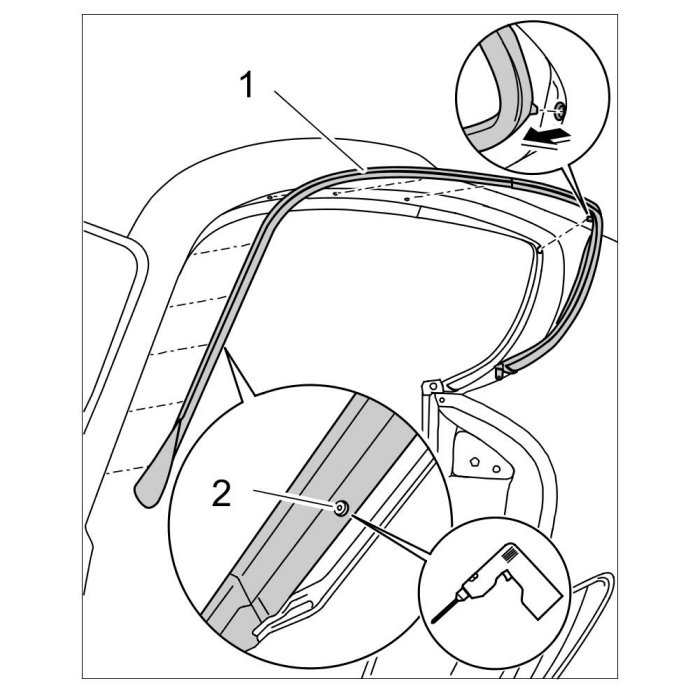

Removing side window seal

1. Drill out rivets -2- from the integrated sheetmetal strip of the seal for the side window -1- using a 4.1 mm drill bit.





Removing side window seal

2. Unclip side window seal -1- and remove.

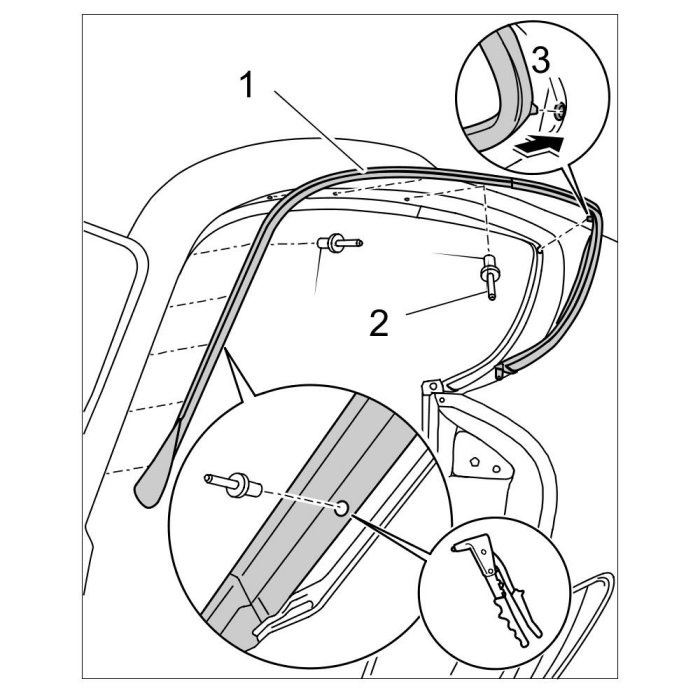

Installing side window seal

1. Position seal for side window -1- on the centring hole and rivet down with the rivets -2- , starting from the top right.





Installing side window seal

2. Clip grommet -3- into the side panel and then press side window seal -3- into the side panel.

Subsequent work

1. Install side window. -> 647519 Removing and installing side window - section on "installing" Service and Repair
