Overhaul

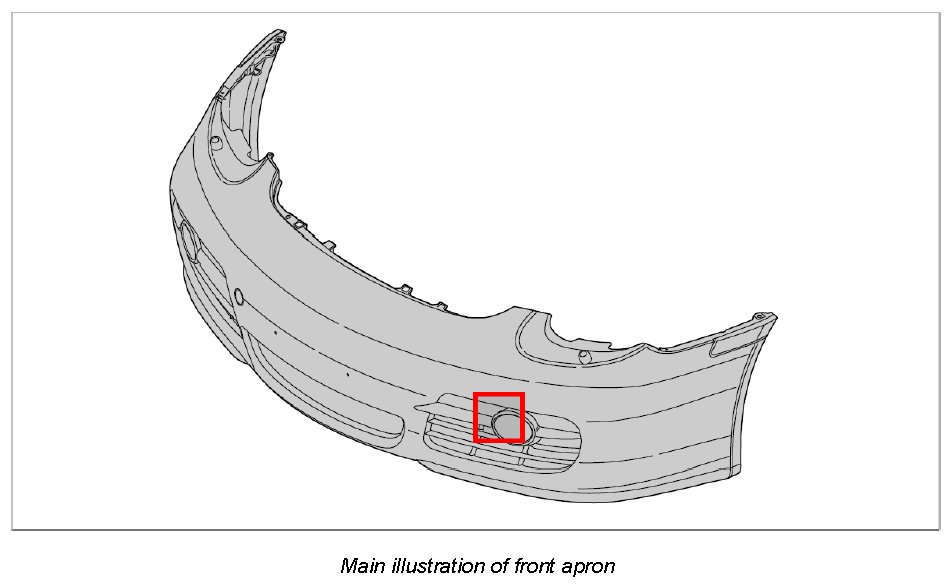

Disassembling And Assembling Front Apron

Preliminary work

1. Remove front apron. Refer to Removing and installing front apron.
2. Remove auxiliary headlight. Refer to Removing and installing auxiliary headlight.
3. Remove right and left flasher repeater. Refer to Removing and installing side direction indicator.

INFORMATION: Only for vehicles with headlight cleaning system.

4. Remove spray nozzle for headlight cleaning system. Refer to Removing and installing spray nozzle for headlight cleaning system.
5. Remove front air grille. Refer to Removing and installing front air grille.
6. Remove front wire harness. Refer to Removing and installing front wire harness.

INFORMATION: Only for vehicles with headlight cleaning system.

7. Remove hose for headlight cleaning system. Refer to Removing and installing hose for headlight cleaning system.
8. Remove number plate cover. Refer to Removing and installing number plate cover.
9. Remove front spoiler.
9.1. Refer to Removing and installing front spoiler.

INFORMATION: Only for vehicles with I-no. XAM.

9.2. Refer to Removing and installing front spoiler.

Disassembling front apron

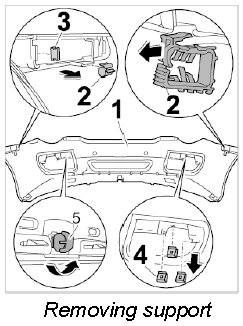

Removing support for wire harness







1. Insert a screw driver between front apron -1- and the support -2, 3- and carefully remove. Check support -2, 3-, and replace if necessary.







2. Remove fastening nut -4-, inspect and replace if necessary.
3. Turn fastening clip -5- through 90° and remove.

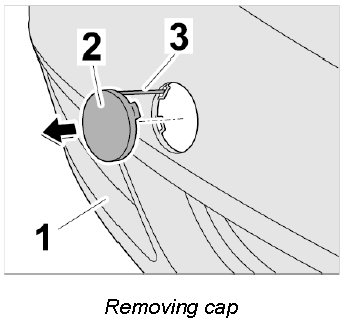

Removing cap

1. Carefully press the cap -2- out with a screwdriver. Pull out the securing cord -3- that joins the cap -2- and front apron -1- (-arrow-).

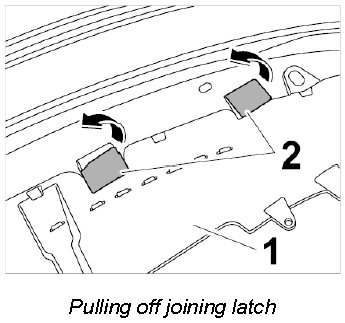

Pulling off joining latch

1. Pull joining latch -2- out of the front apron -1- (-arrows-).







Disassembling cover for auxiliary headlight







1. Separate cover upper part -1- from cover lower part -2- at the locking tabs.







Assembling front apron

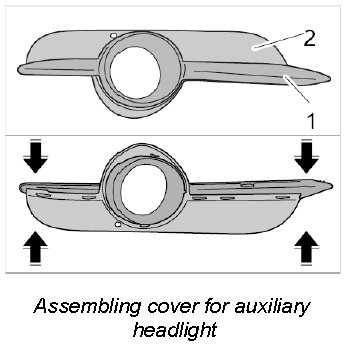

Assembling cover for auxiliary headlight







1. Position cover upper part -1- on cover lower part -2- and press together until the locking tabs engage.

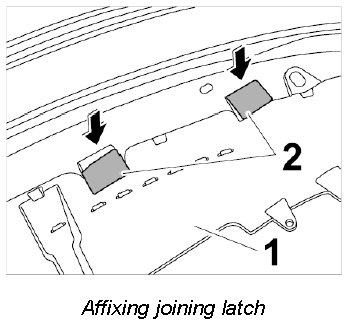

Affixing joining latch

1. Position joining latch -2- on the front apron -1- and stick it on -arrows-.

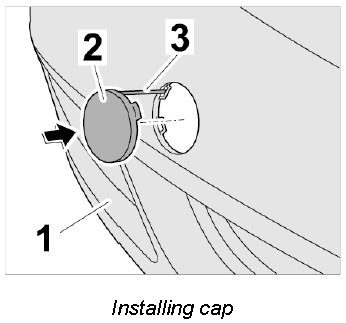

Installing cap

1. Pull the securing cord -3- into the eyelet on the front apron. Clip the cap -2- into the front apron -1- (-arrow-).

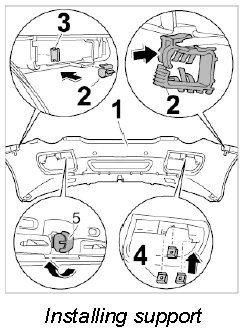

Installing support for wire harness

1. Position fastening clip -5- on the front apron -1- and turn through 90°.







2. Press in fastening nut -4-.
3. Position support -2, 3- on the front apron -1- and press in.

Subsequent work

1. Install number plate cover. Refer to Removing and installing number plate cover.
2. Install front wire harness. Refer to Removing and installing front wire harness.
3. Install front air grille. Refer to Removing and installing front air grille.

INFORMATION: Only for vehicles with headlight cleaning system.

4. Install hose for headlight cleaning system. Refer to Removing and installing hose for headlight cleaning system.

INFORMATION: Only for vehicles with headlight cleaning system.

5. Install spray nozzle for headlight cleaning system. Refer to Removing and installing spray nozzle for headlight cleaning system.
6. Install right and left flasher repeater. Refer to Removing and installing side direction indicator light.
7. Install auxiliary headlight. Refer to Removing and installing auxiliary headlight.
8. Install front apron. Refer to Removing and installing front apron.
9. Install front spoiler.
9.1. Refer to Removing and installing front spoiler.

INFORMATION: Only for vehicles with I-no. XAM.

9.2. Refer to Removing and installing front spoiler.
