Removing and Installing Control Unit For Garage Door Opener

Removing And Installing Control Unit For Garage Door Opener

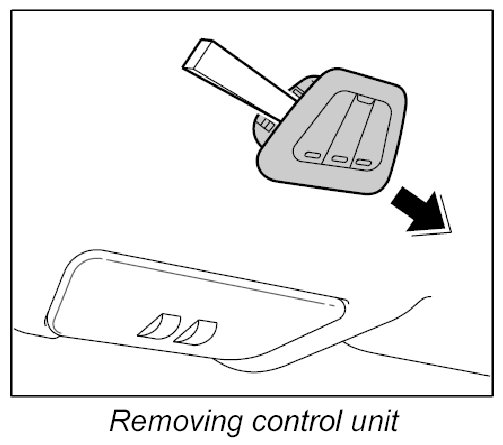

Removing control unit for garage door opener







1. Lever out the control unit from the headliner with a plastic spatula.

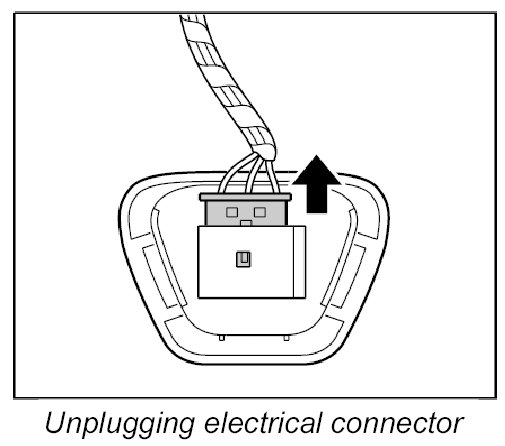

2. Disconnect electric plug connection from control unit.

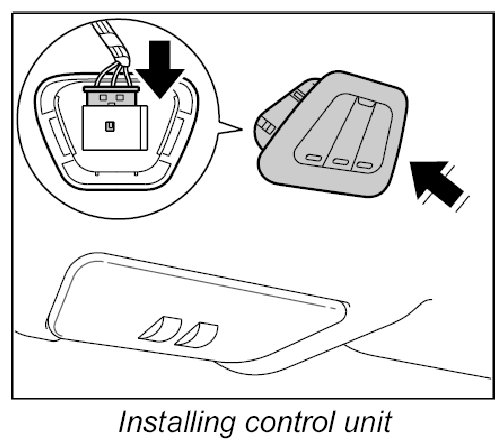

Installing control unit for garage door opener







1. Connect electric connector to control unit.
2. Clip control unit into headliner.
