80551900 Removing and installing front footwell outlet vent

WM 805519 Removing and installing front footwell outlet vent

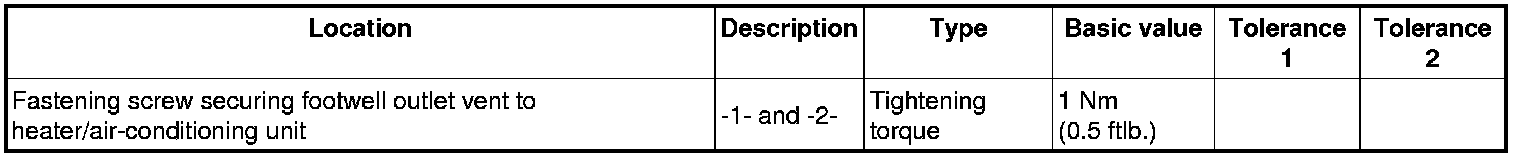

Technical values





Preliminary work

Preliminary work for front footwell outlet vent

Remove the small front covers for the centre console at the left and right. -> 681419 Removing and installing centre console cover - section on "Removing" 681419 Removing and installing centre console cover

Removing front footwell outlet vent

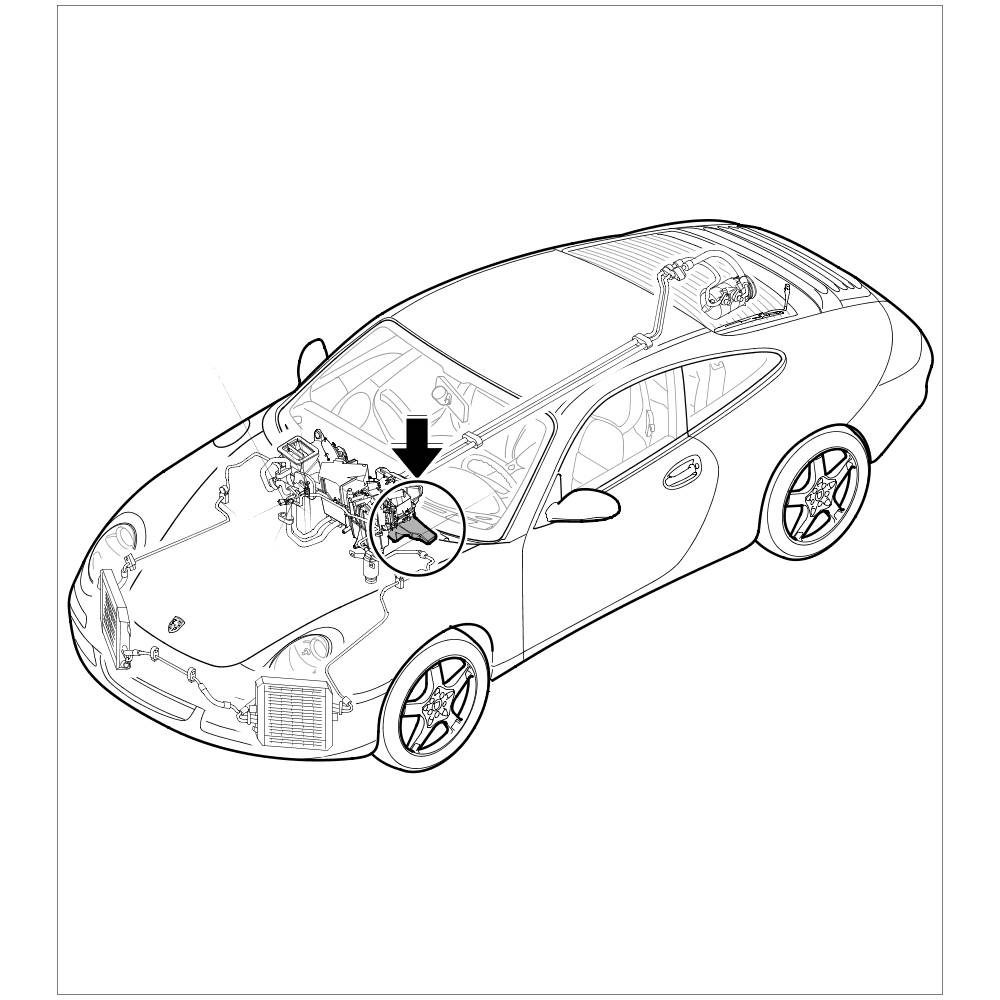

Installation position of air guide

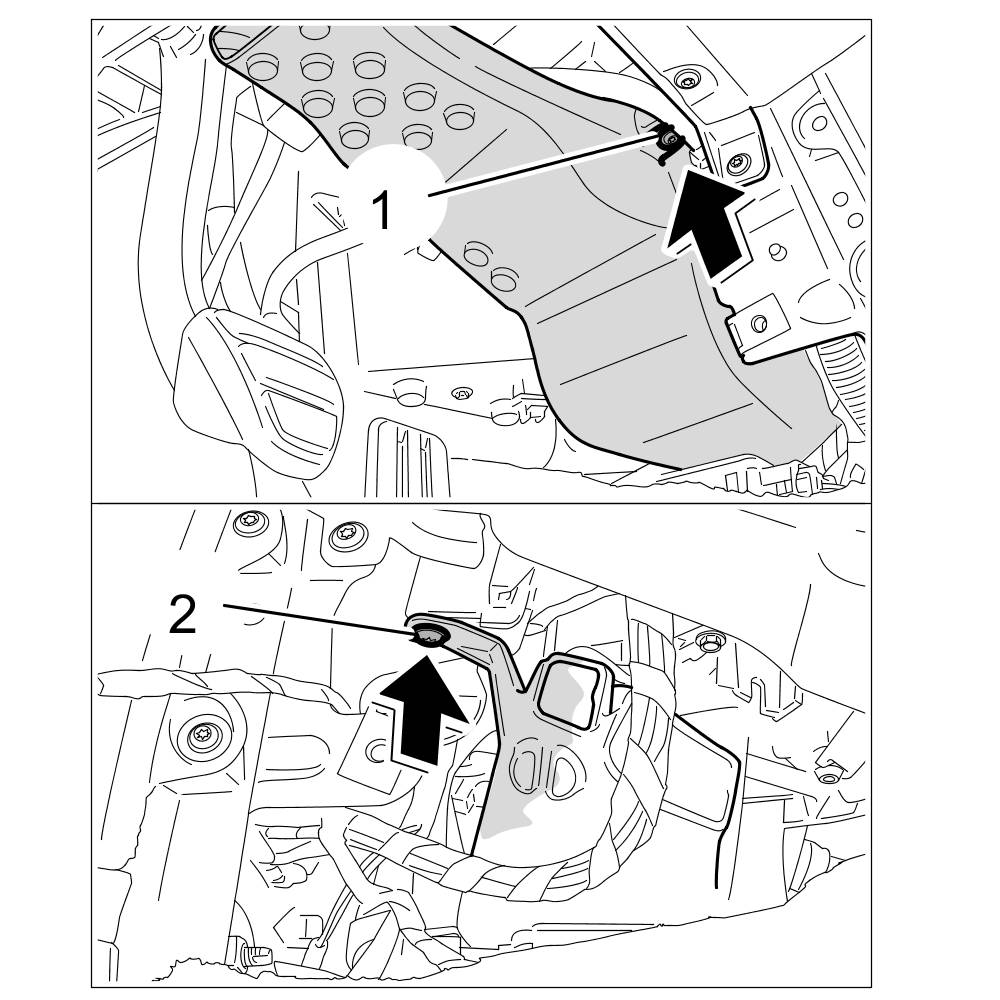

1. Unscrew the fastening screw at the left -1- and right -2- of the heater/air-conditioning unit.





Unscrewing fastening screws

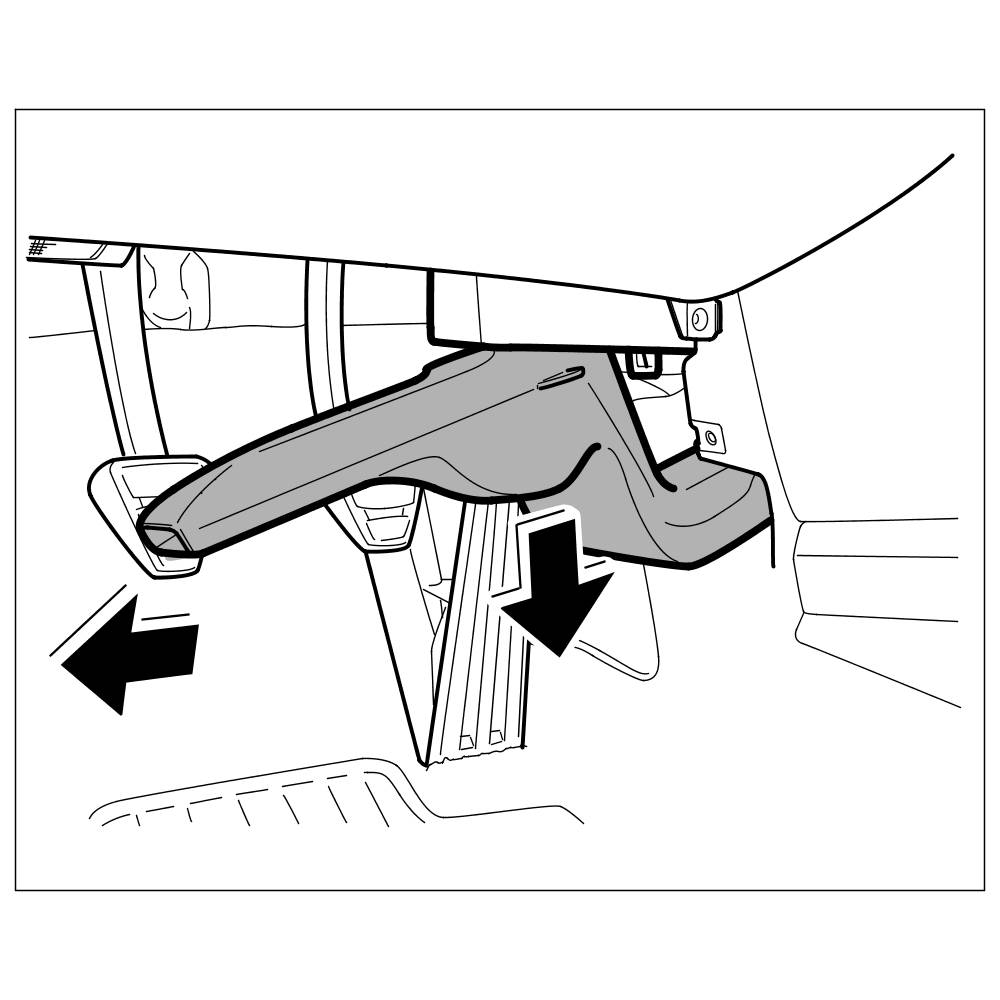

2. Pull the footwell outlet vent down out of the heater/air-conditioning unit and remove through the driver's side.





Removing footwell outlet vent

Installing front footwell outlet vent

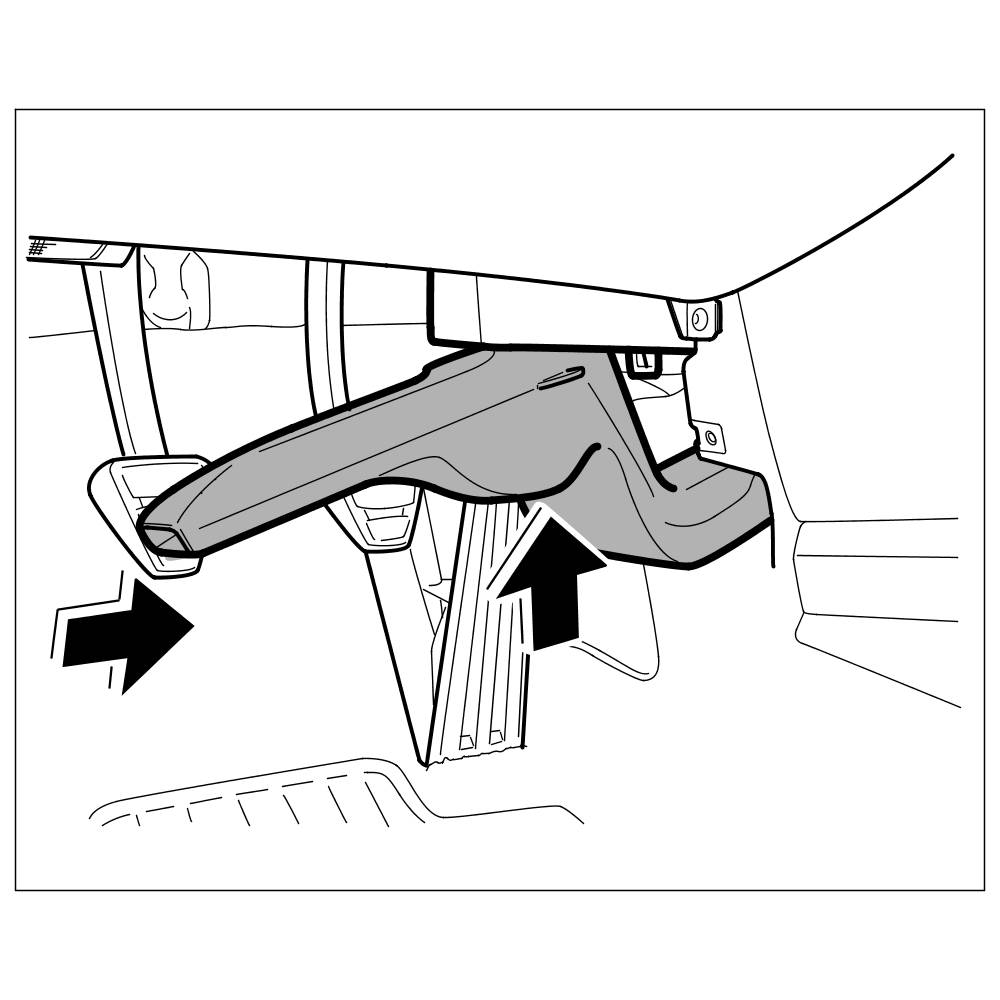

1. Slide the footwell outlet vent in under the heater/air-conditioning unit through the driver's side and push it onto the heater/air-conditioning unit.





Inserting footwell outlet vent

2. Screw the footwell outlet vent to the heater/air-conditioning unit with the two fastening screws at the left -1- and right -2-. => Tightening torque: 1 Nm (0.5 ftlb.)





Screw down the footwell outlet vent

Subsequent work

Subsequent work for front footwell outlet vent

Fit the small front covers for the centre console at the left and right. -> 681419 Removing and installing cover for centre console - section on "Installing" 681419 Removing and installing centre console cover
