Garage Door Opener Control Head: Service and Repair

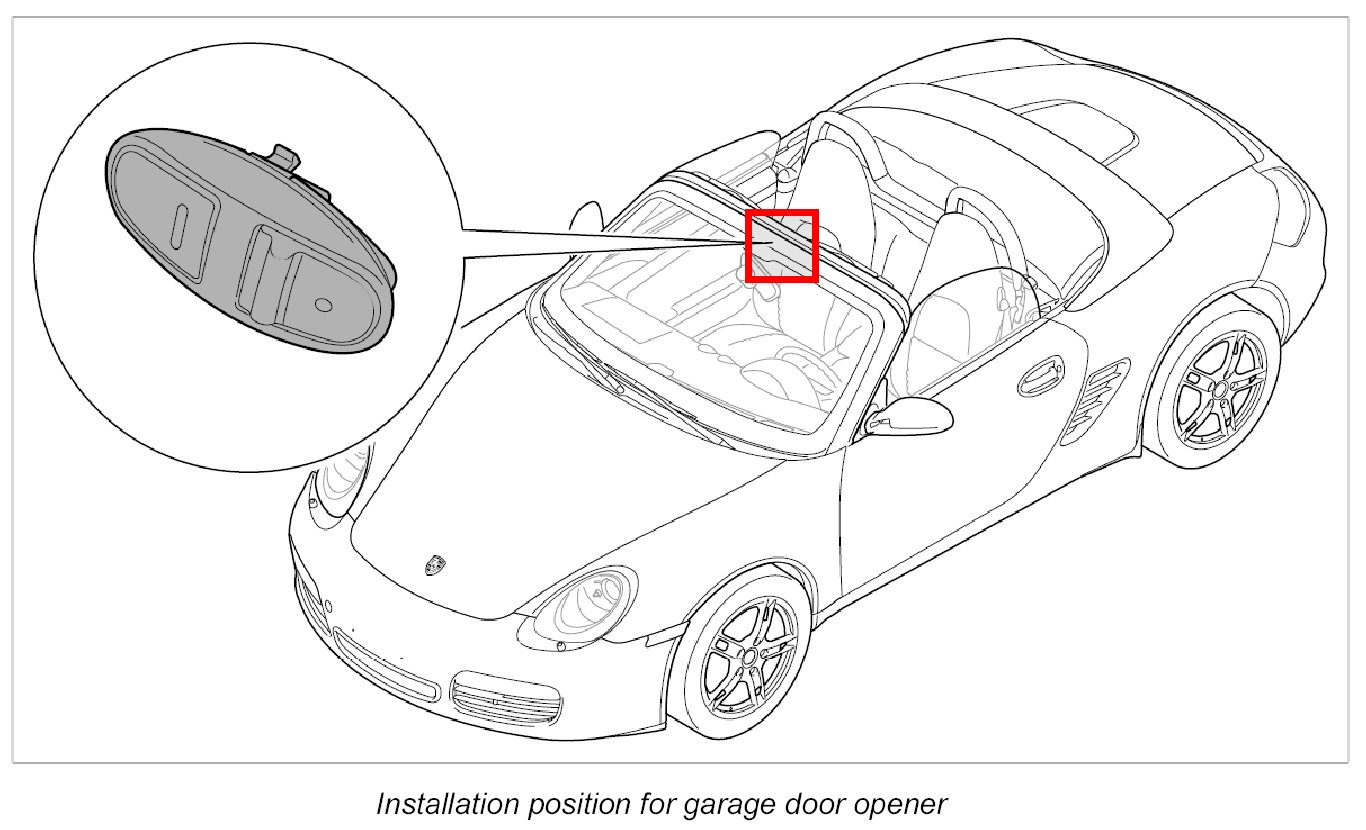

Removing And Installing Control Unit For Garage Door Opener

Removing control unit for garage door opener

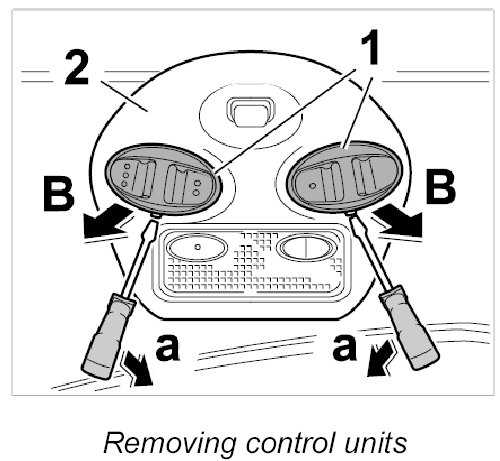

1. Lever the control units -1- out of the front lock with a small screwdriver at the openings provided -2- -Arrows a-.
2. Pull control units -1- down and out of the assembly openings of the front lock -2- -Arrows B-.

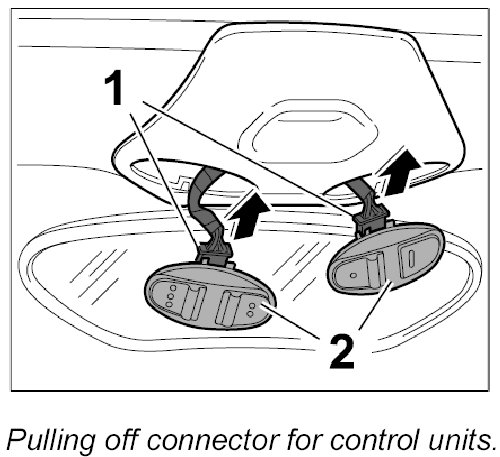

3. Pull off connector -1- for control units -2- -arrows-.

Installing control unit for garage door opener

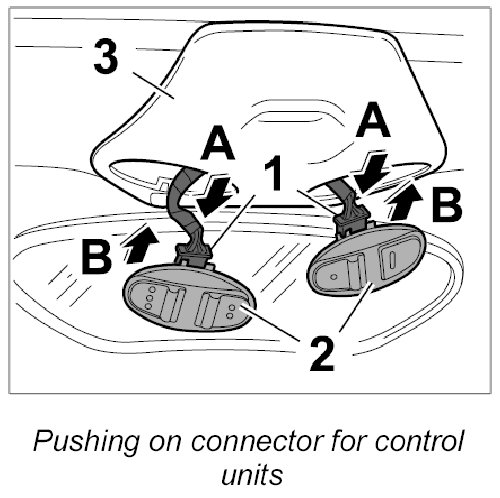

1. Push on connector -1- for control units -2- -Arrows A-.

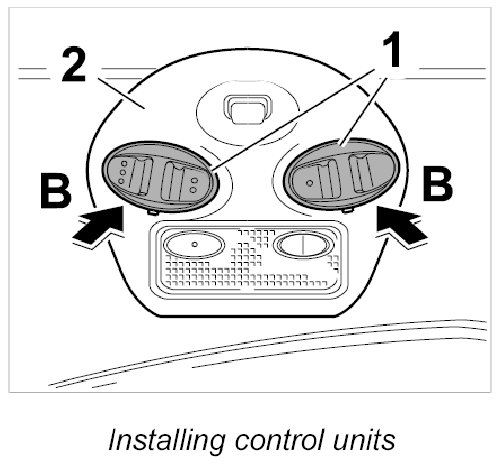

2. Insert control units -2- with electric connecting lines into the assembly openings of the front lock -3- in an upwards direction -Arrows B-.







3. Press in control units -1- on front lock -2- until latches are felt to engage.
