Seat Belt Height Adjuster: Service and Repair

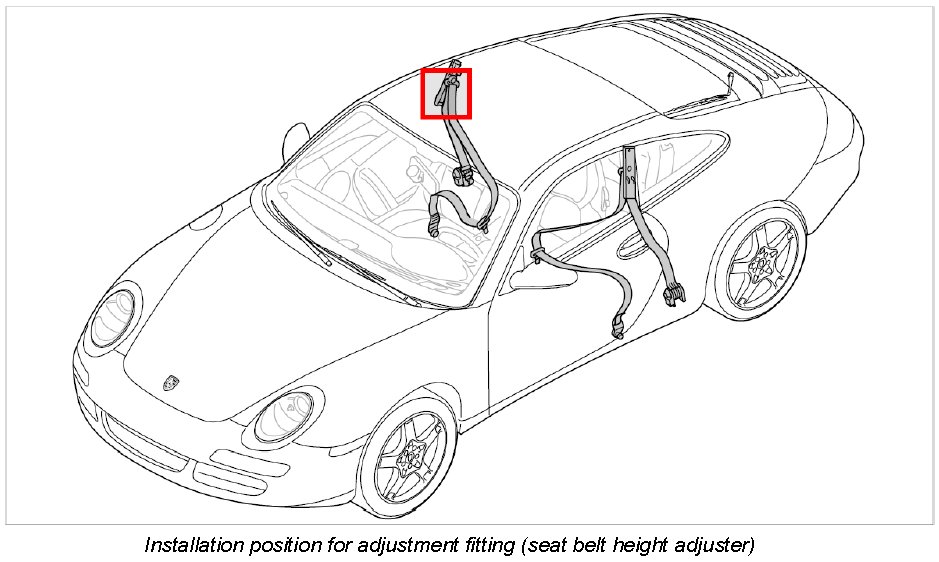

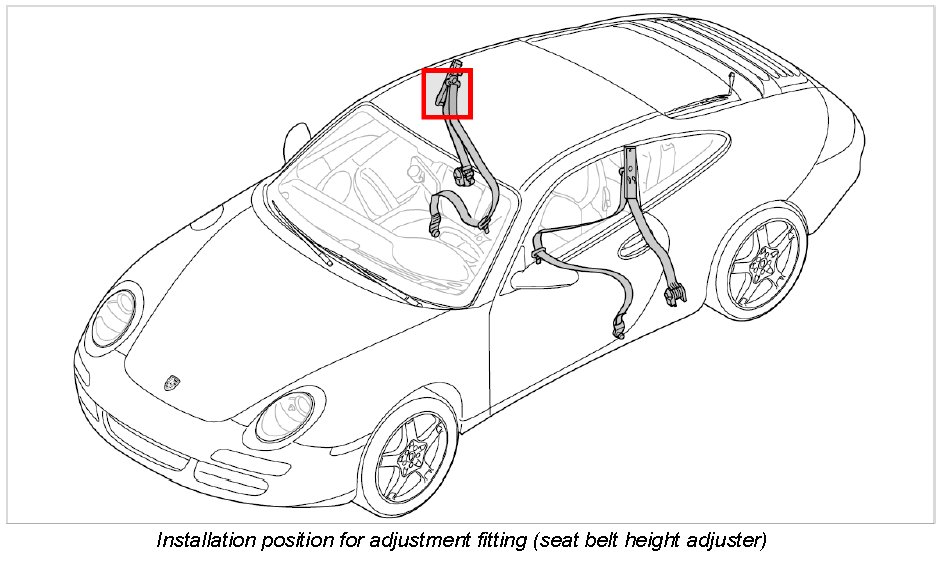

Removing And Installing Adjustment Fitting (Seat Belt Height Adjuster)

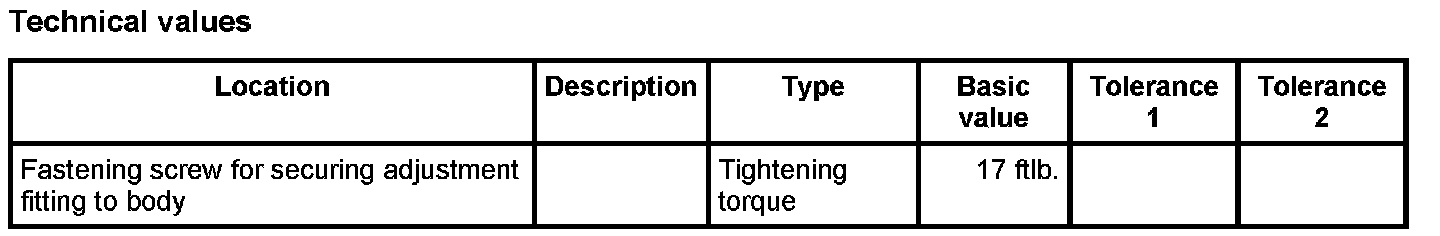

Technical values







Preliminary work

Remove B-pillar trim. Refer to Removing and installing B-pillar trim panel.

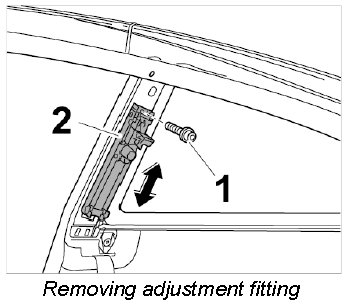

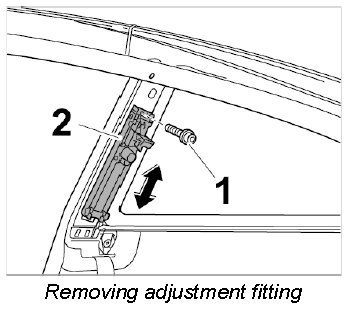

Removing adjustment fitting (seat belt height adjuster)







1. Unscrew fastening screw -1-.







2. Guide the adjustment fitting -2- upwards out of the B-pillar in -direction of arrow-.

Installing adjustment fitting (seat belt height adjuster)







1. Run adjustment fitting -2- down into the B-pillar -direction of arrow- and tighten the fastening screw -1-. Tightening torque: 17 ftlb.







Subsequent work

Install B-pillar trim panel. Refer to Removing and installing B-pillar trim panel.
