Removing and Installing Rear Belt Lock

Removing And Installing Rear Belt Lock

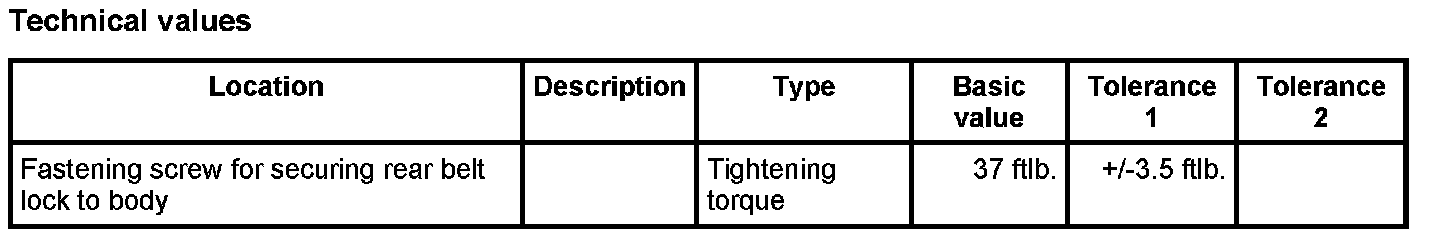

Technical values







Preliminary work

Remove back seat cushion. Refer to Removing and installing back seat cushion.

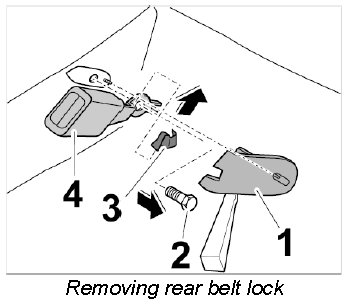

Removing rear belt lock







1. Press out cover -1- with a plastic spatula.







2. Unscrew fastening screw -2- from the seat-belt buckle -4-.
3. Remove metal clip -3-.

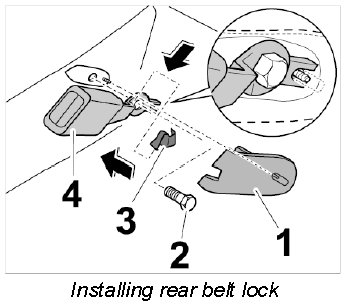

Installing rear belt lock







1. Check metal clip -3-, replace if necessary.
2. Position seat-belt buckle -4- on the seat well and screw down with the fastening screw -2-. Tightening torque: 37 ftlb.±3.5 ftlb.







3. Press in -1- cover.

Subsequent work

1. Install back seat cushion. Refer to Removing and installing back seat cushion.
