Removing and Installing Middle Air Vent

Removing And Installing Middle Air Vent

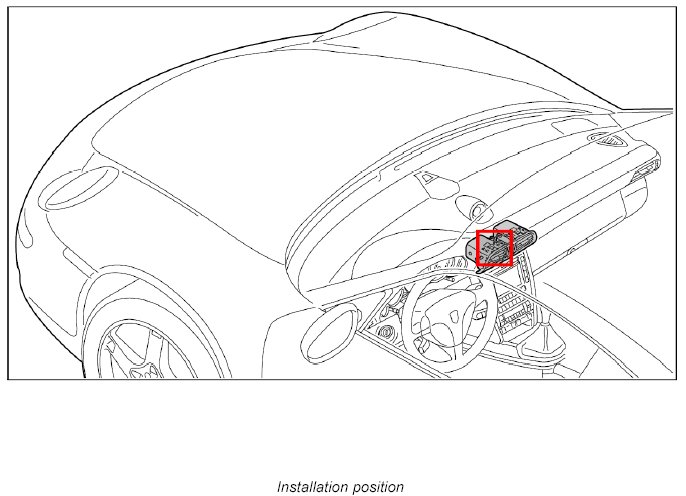

Removing middle air vent












1. With a screwdriver through the top air slot, release the left and right retaining clip -A- and pull the air vent out of the dashboard.







2. Pull apart the electrical plug connections and remove the air vent.

Installing middle air vent







1. Push together the electrical plug connections.
2. Observe the line routing and insert the air vent into the dashboard until it clicks into place.
3. Check function of air vent illumination and air vent adjustment.
