Sunroof / Moonroof Weatherstrip: Service and Repair

Removing And Installing Seal For Sliding Roof

Preliminary work

Removing sliding-roof panel. Refer to Removing and installing sliding-roof panel.

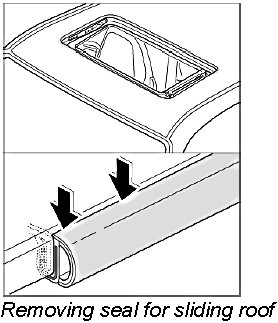

Removing seal for sliding roof

1. Press seal for sunroof down all the way round and detach it from the outer roof panel.







2. Remove seal for sliding roof.

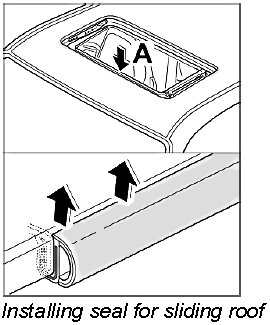

Installing seal for sliding roof

1. Position seal for sunroof centred at the front (joint) -arrow A- and attach evenly to the outer roof panel all the way round, then press on in an upward direction.







Subsequent work

Install sliding-roof panel. Refer to Removing and installing sliding-roof panel.
