Removing and Installing Rear Roof Lining

Removing And Installing Rear Roof Lining

Removing rear roof lining

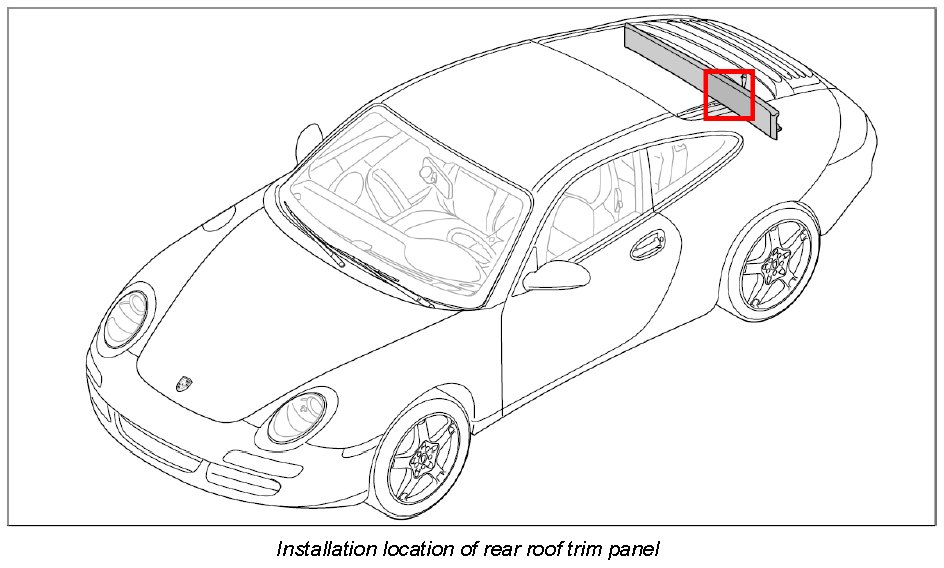

Removing rear roof trim panel

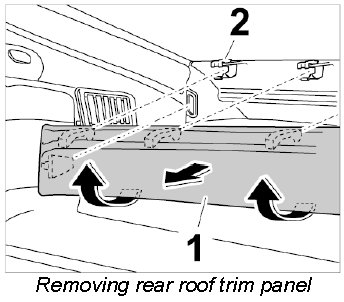

1. Grasp underneath the roof trim panel -1- at the side and, pulling in -direction of arrow-, carefully remove it from the cable clamps -2-.







Installing rear roof lining

Installing rear roof trim panel







INFORMATION: Cable clamps -2- must always be replaced when the roof trim panel is removed.

If cable clamps are not replaced, this can cause noises in the roof trim panel when driving.

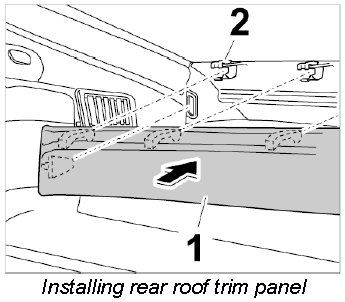

1. Position roof trim panel -1- and press into place in -direction of arrow- ensuring that the pegs engage audibly in the cable clamps -2-.
