Rear Fender Liner: Service and Repair

Removing And Installing Rear Wheel Housing Liner

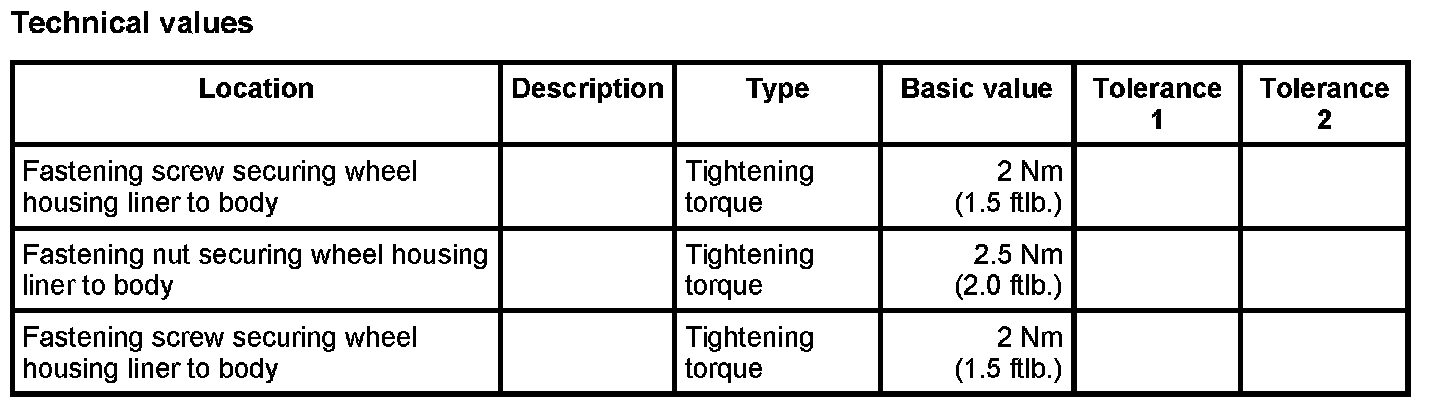

Technical values







Preliminary work

Remove wheel. Refer to Removing and installing wheel.

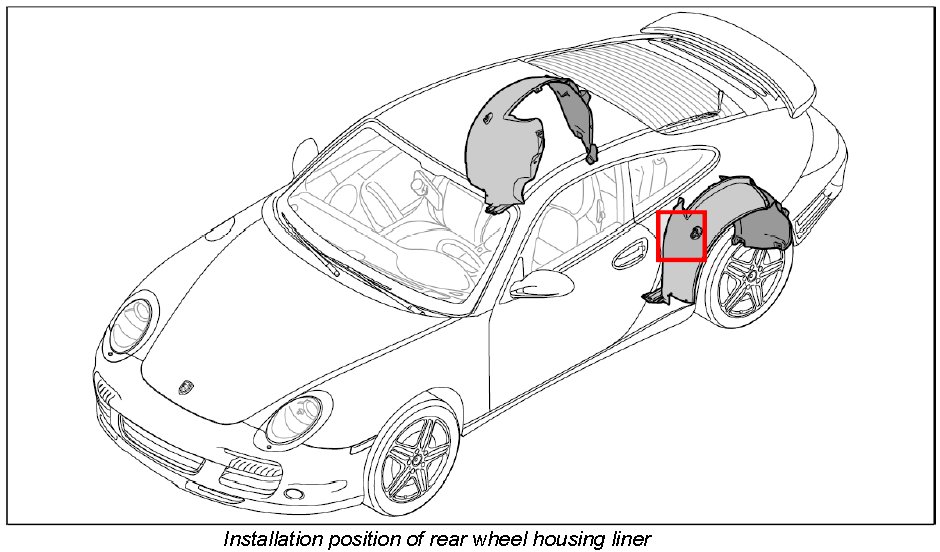

Removing rear wheel housing liner

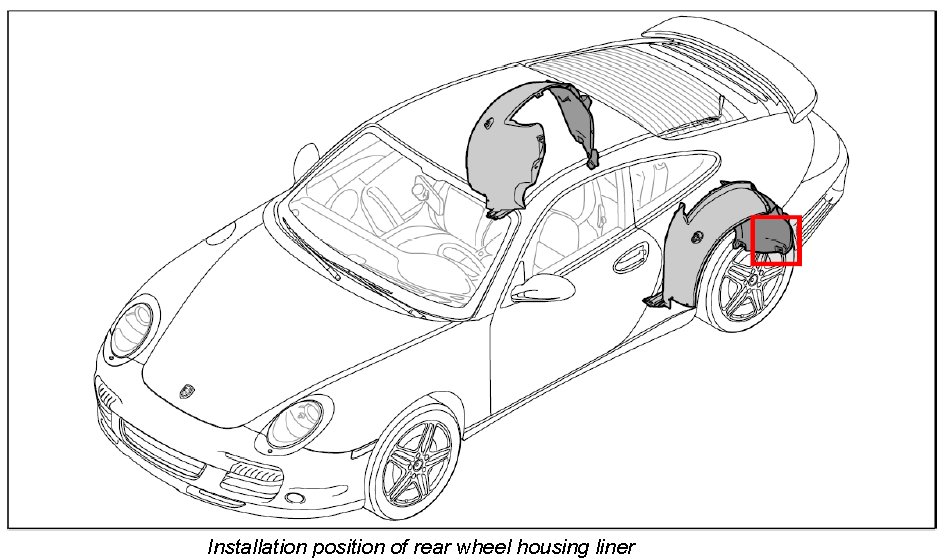

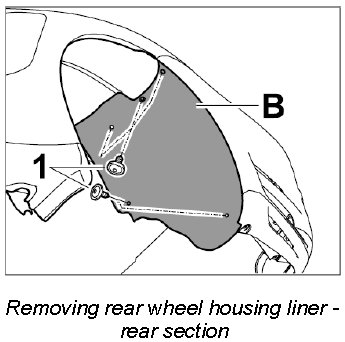

Removing rear wheel housing liner - rear section







1. Unscrew fastening screws -1- and remove rear section of wheel housing liner -B-.

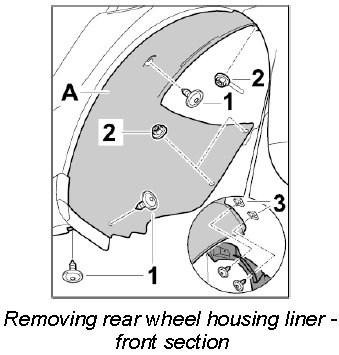

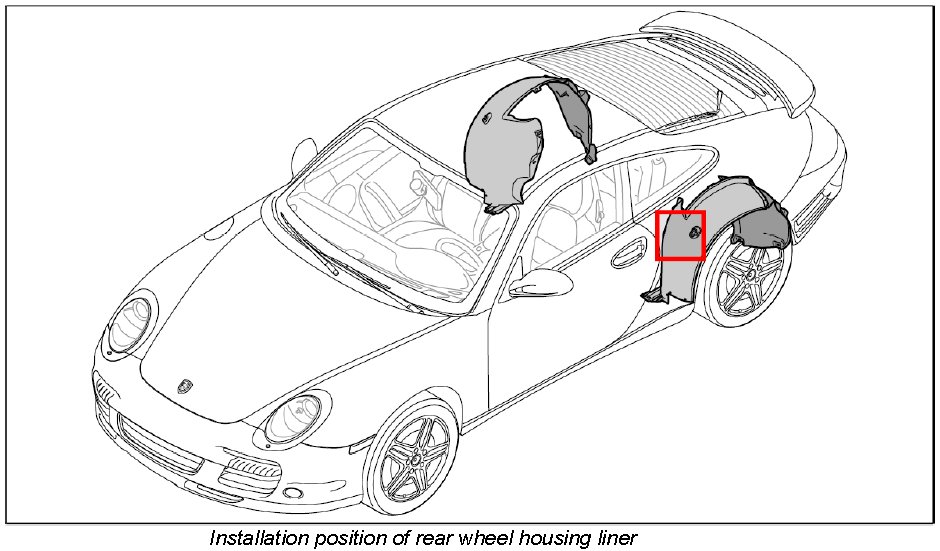

Removing rear wheel housing liner - front section







INFORMATION: Fastening nuts cannot be used again following removal.

1. Unscrew fastening screws -1- and fastening nuts -2- and remove front section of wheel housing liner -A-.







2. Check speed nuts -3- and replace them if necessary.

Installing rear wheel housing liner

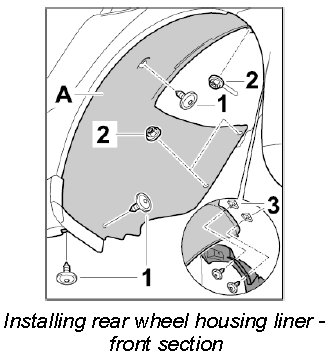

Installing rear wheel housing liner - front section







1. Press speed nuts -3- onto the front section of the wheel housing liner -A-.







2. Insert front section of wheel housing liner -A- and secure with fastening screws -1- and fastening nuts -2-. Tightening torque: 2 Nm (1.5 ftlb.) : 2.5 Nm (2.0 ftlb.)

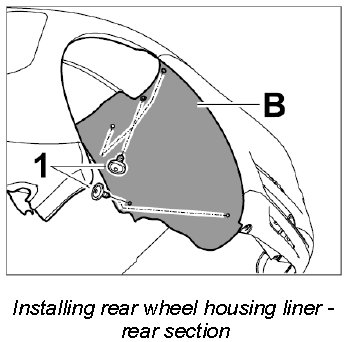

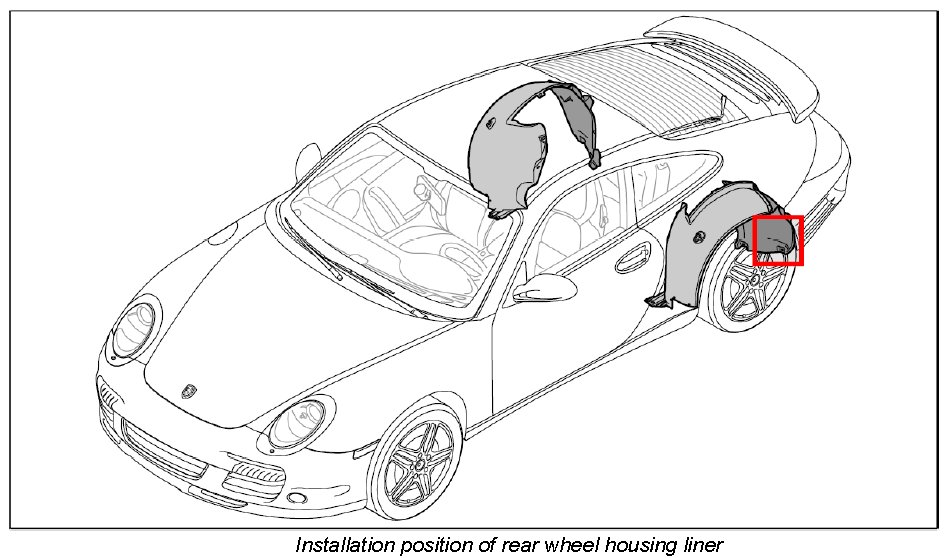

Installing rear wheel housing liner - rear section







1. Insert rear section of wheel housing liner -B- and secure with fastening screws -1-. Tightening torque: 2 Nm (1.5 ftlb.)







Subsequent work

Reworking

Install wheel. Refer to Removing and installing wheel.
