Replacing Rear Logo

Replacing Rear Logo

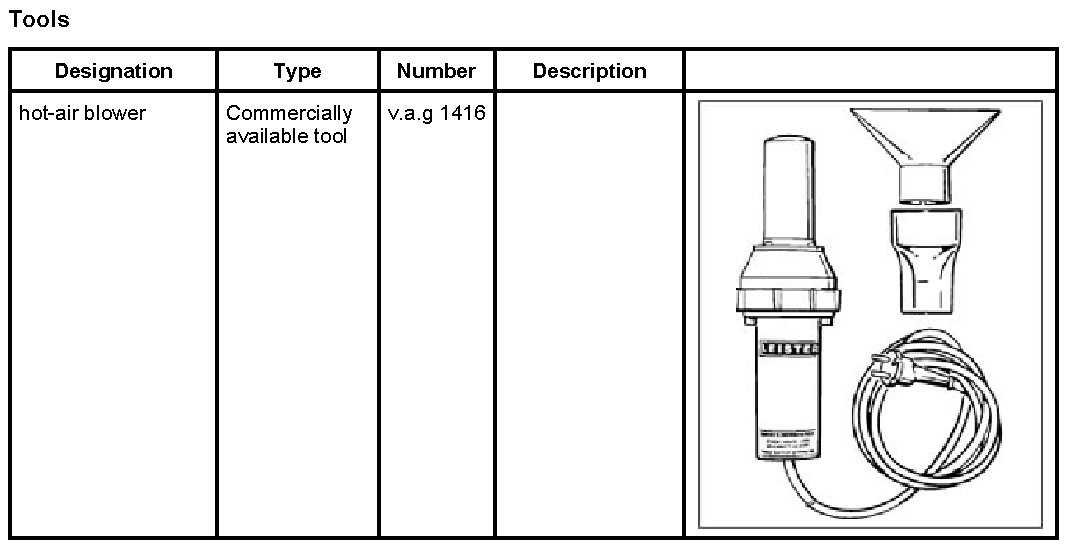

Tools

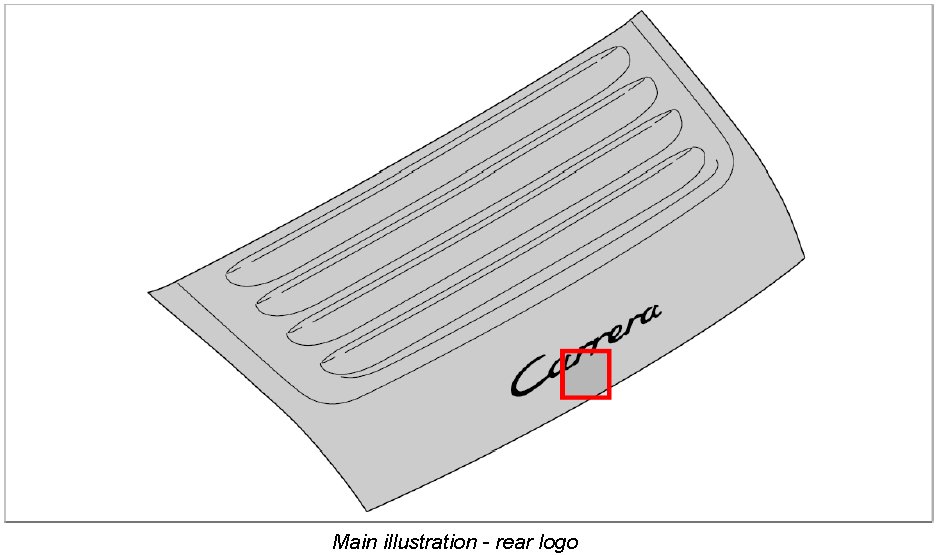

Replacing rear logo

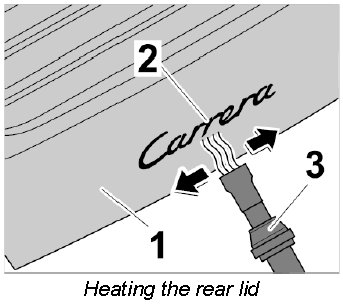

1. Heating the rear lid
1.1. Heat the rear lid -1- close to the logo -2- using the hot-air blower v.a.g 1416 -3-.

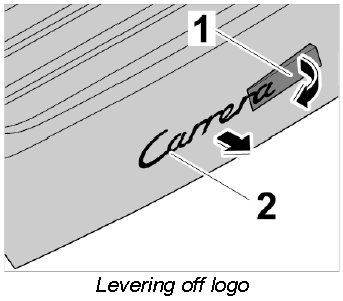

2. Levering off the logo using a plastic spatula
2.1. Move a plastic spatula -1- under the logo -2- and lift it up.

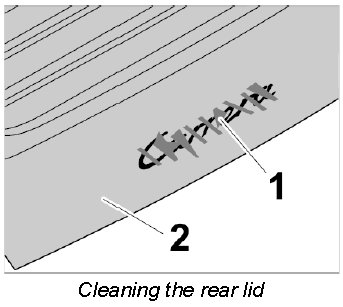

3. Clean the rear lid
3.1. Loosen adhesive residue -1- on the rear lid -2- using silicone remover and remove it.
