Sun Visor: Service and Repair

Removing And Installing Sun Visor

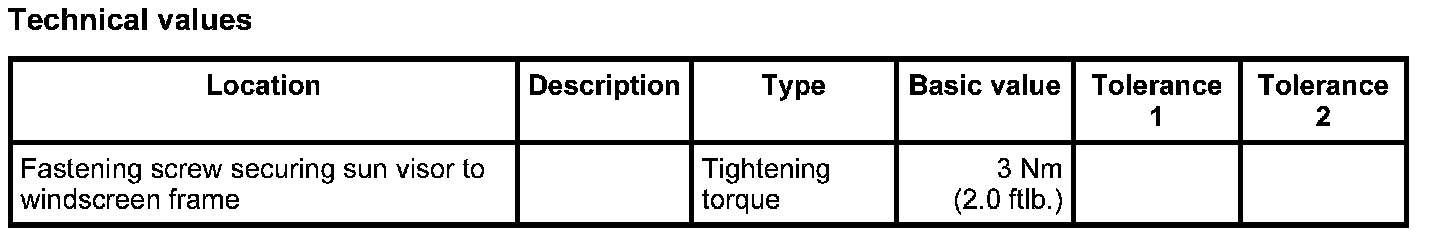

Technical values

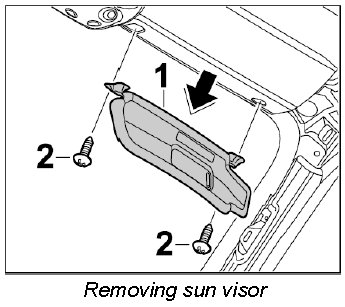

Removing sun visor







1. Unscrew fastening screws -2- on the sun visor -1- and remove sun visor -1- in a downward direction -Arrow-.

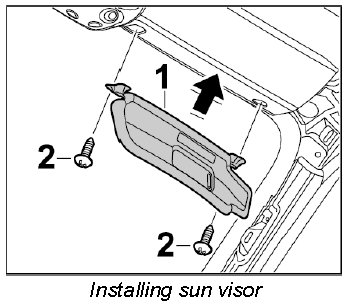

Installing sun visor

1. Position sun visor -1- (-Arrow-) and secure with the fastening screws -2-. Tightening torque: 3 Nm (2.0 ftlb.)
