Removing and Installing Cardan Flange
Removing and Installing Cardan Flange
Preliminary work
1. Raise the vehicle at the prescribed jacking points.
2. Remove the underbody panel.
3. Remove cardan shaft.
4. Place oil collection pan under the transmission.
Removing cardan flange
Removing cardan flange - automatic transmission
1. Set selector lever to P and firmly apply the handbrake.

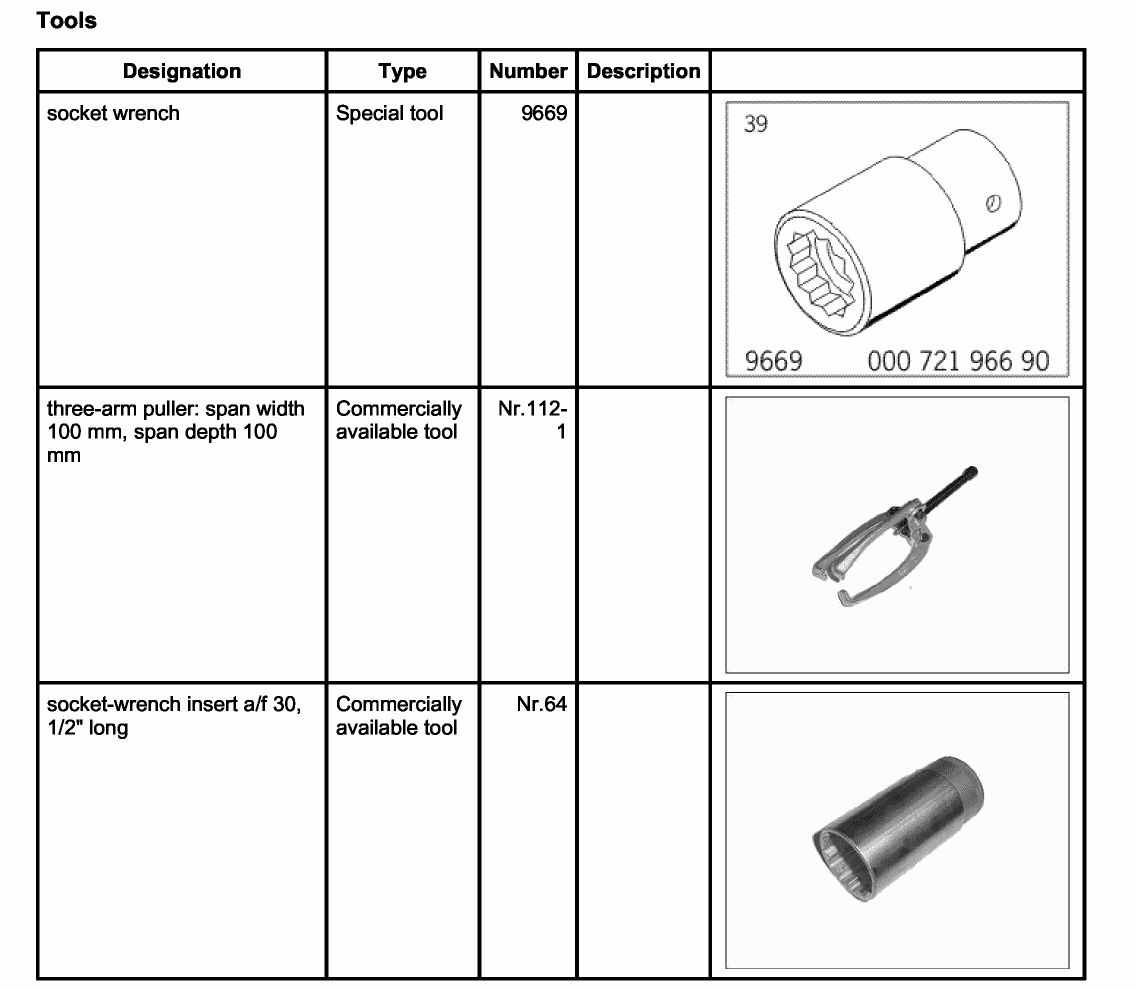

2. Loosen and unscrew collar nut using socket wrench 9669.

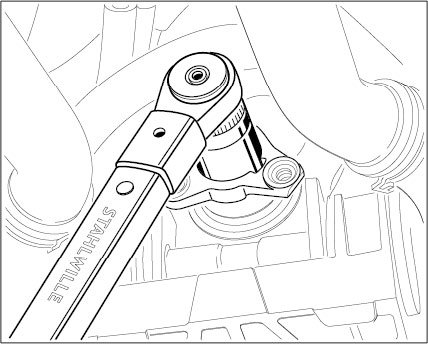

Loosening nut
3. Pull off cardan flange using three-arm puller: span width 100 mm, span depth 100 mm Nr.112-1.

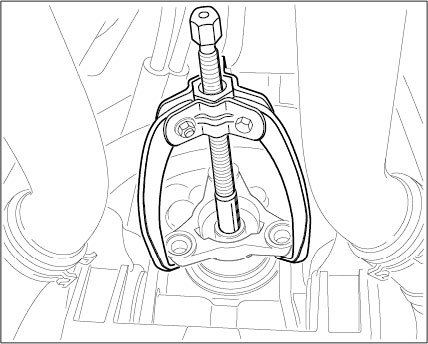

Pulling off flange
Removing cardan flange - manual transmission
1. Engage first gear and firmly apply the handbrake.
Information:
Transmission shaft and collar nut are connected by a left thread. When loosening and tightening, the direction of rotation of the nut must be observed.
2. Loosen and unscrew collar nut using socket-wrench insert a/f 30, 1/2" long Nr.64.
Loosening nut
3. Pull off cardan flange using three-arm puller: span width 100 mm, span depth 100 mm Nr.112-1.
Pulling off flange
Installing cardan flange
Installing cardan flange - automatic transmission
1. Replace O-ring for cardan flange.

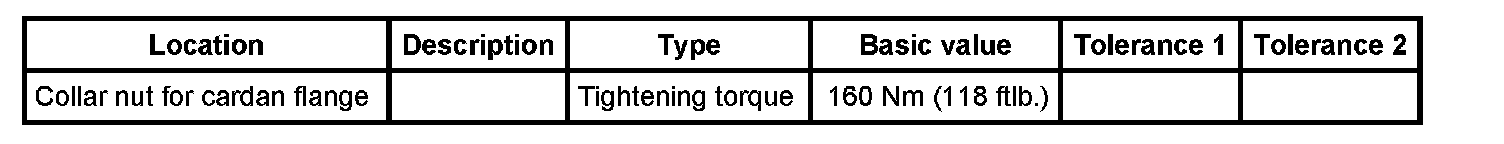

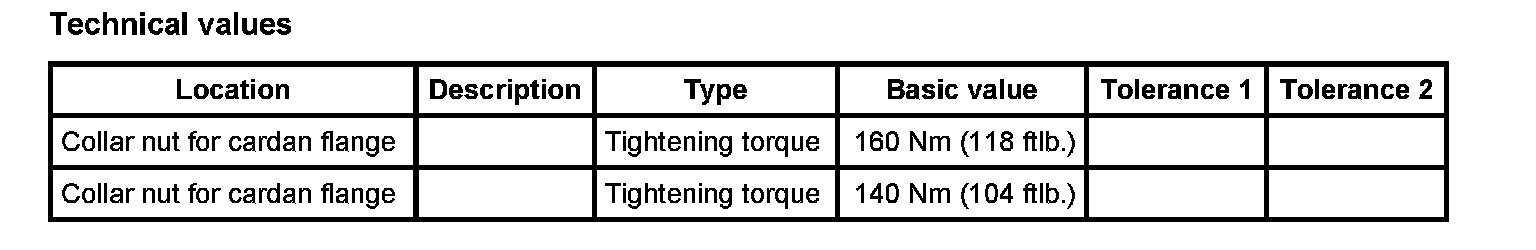

2. Screw on new collar nut and tighten using socket wrench 9669.
3. Lock nut by pressing in the collar.

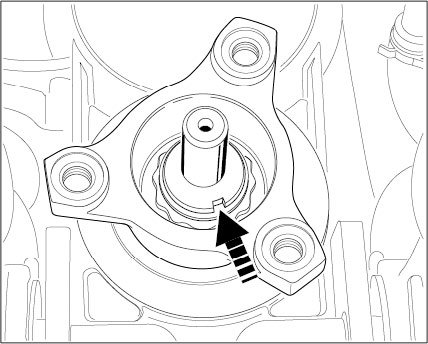

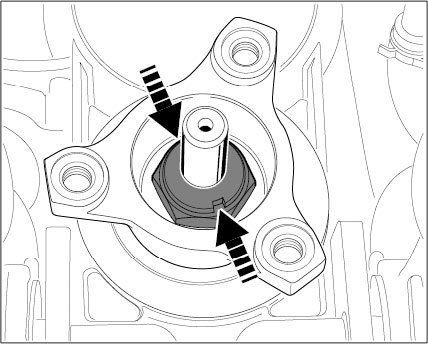

Locking nut
Installing cardan flange - manual transmission
1. Replace O-ring for cardan flange.
Information:
Transmission shaft and collar nut are connected by a left thread. When loosening and tightening, the direction of rotation of the nut must be observed.

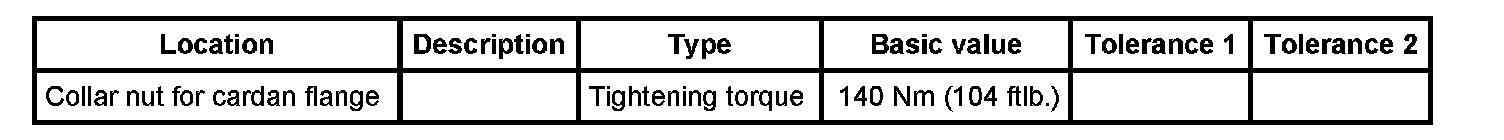

2. Screw on new collar nut and tighten using socket-wrench insert a/f 30, 1/2" long Nr.64.
3. Lock nut by pressing in the collar.
Locking nut
Subsequent work
Subsequent work - Automatic transmission
1. Install cardan shaft.
2. Check and if necessary, top up the ATF.
3. Fit underbody panels.
4. Lower the vehicle.
Subsequent work - Manual transmission
1. Install cardan shaft.
2. Check transmission oil and top it up if necessary.
3. Fit underbody panels.
4. Lower the vehicle.
