Removing and Installing Trim Panel For Seat Well

Removing And Installing Trim Panel For Seat Well

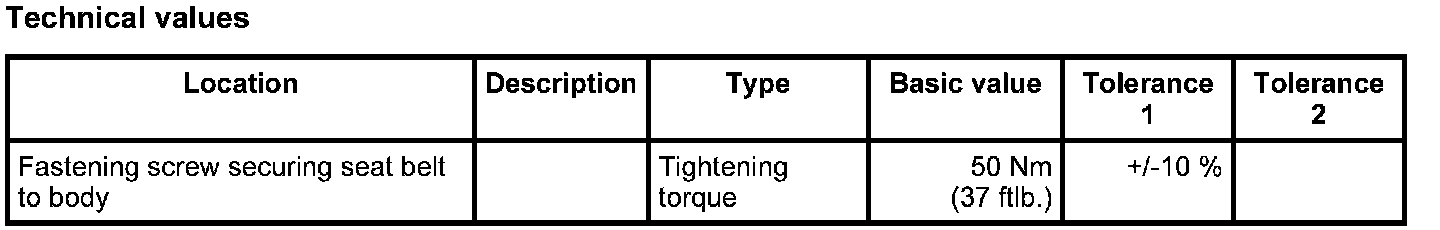

Technical values







Removing trim panel for seat well

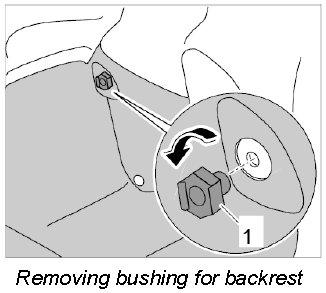

Removing bushing for rear backrest

1. Unscrew bushing for rear backrest -1- in -direction of arrow-.

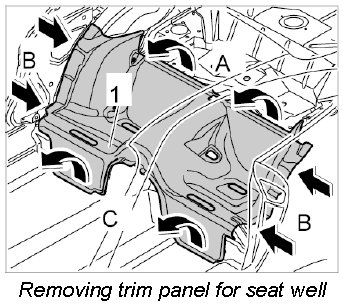

Removing trim panel for seat well

1. Raise trim panel for seat well -1- starting at the rear -Arrows A-, fold over -Arrows B- and remove towards the front under the carpet -Arrows C-.

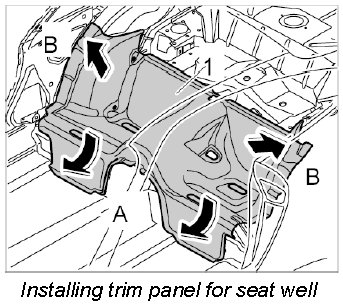

Installing trim panel for seat well

1. Position trim panel for seat well -1- under the carpet starting at the front -Arrows A-, insert it -Arrows B- and then align it.

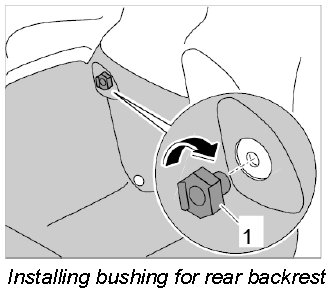

Installing bushing for rear backrest

1. Screw in bushing for rear backrest -1- in -direction of arrow-.

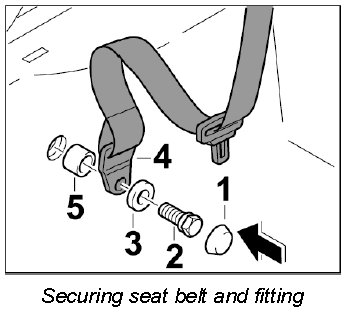

Securing seat belt and fitting

INFORMATION: Ensure that belt strap can run properly.

1. Secure fastening screw -2-, washer -3-, seat belt with fitting -4- and spacer sleeve -5- on the body. Tightening torque: 50 Nm (37 ftlb.) ± 10 %







2. Press cap -1- onto the fastening screw -2- (-arrow-).
