Grille: Service and Repair

Removing And Installing Front Air Grille

Preliminary work

Remove front apron. Refer to Removing and installing front apron.

Removing front air grille

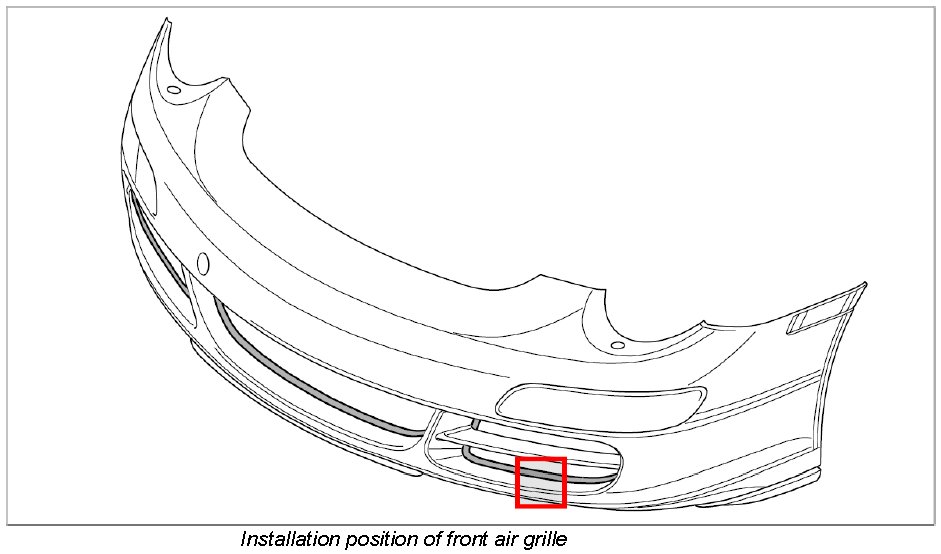

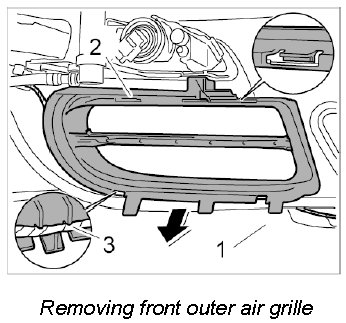

Removing front outer air grille







1. Insert a screwdriver between the front apron -1- and air grille -2- while at the same time releasing the locking lugs and removing the air grille -2-.







2. Disengage wire harness -3- from the air grille -Inset-.

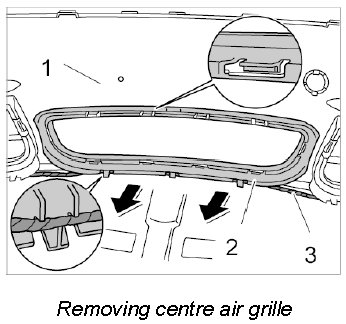

Removing front centre air grille

1. Insert a screwdriver between front apron -1- and air grille -2- at the same time releasing the locking tabs and remove air grille -2-.







2. Disengage wire harness -3- from air grille -inset-.

Installing front air grille

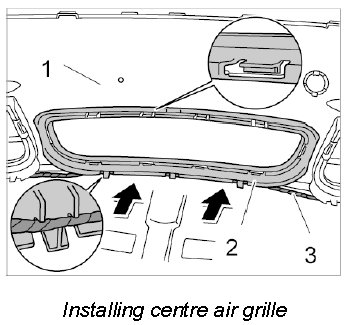

Installing front centre air grille

1. Engage wire harness -3- on air grille -2- -inset-.







2. Position air grille -2- all the way round in the pegs of the front apron -1-.
3. Press air grille -2- into the front apron -1- until the locking tabs are felt to engage.

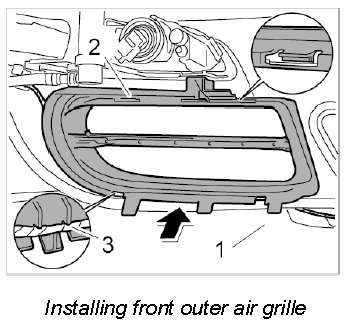

Installing front outer air grille

1. Engage wire harness -3- at the bottom of the air grille -2- (-Inset-).







2. Position air grille -2- all the way round in the pins of the front apron -1-.
3. Press air grille -2- into the front apron -1- until the locking lugs are felt to engage.

Subsequent work

Install front apron. Refer to Removing and installing front apron.
