Front Bumper Reinforcement: Service and Repair

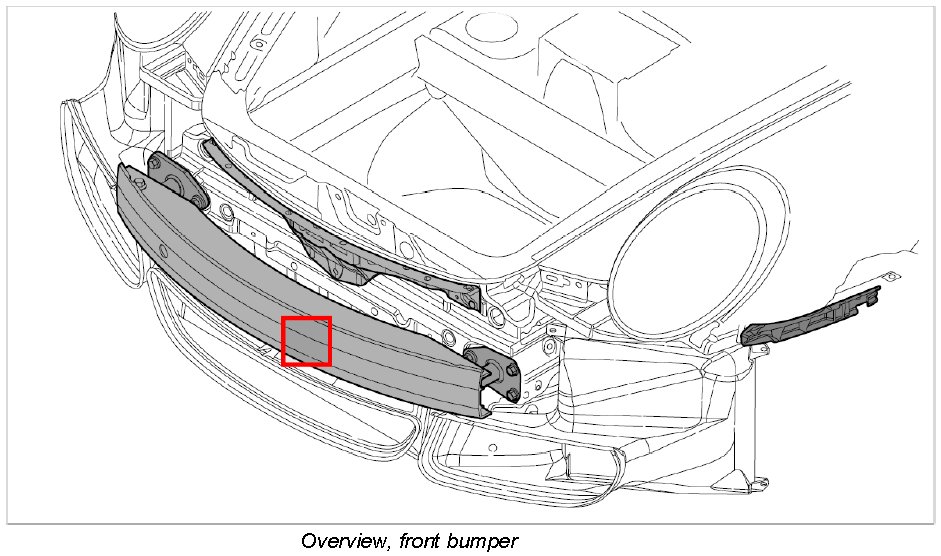

Removing And Installing Front Bumper

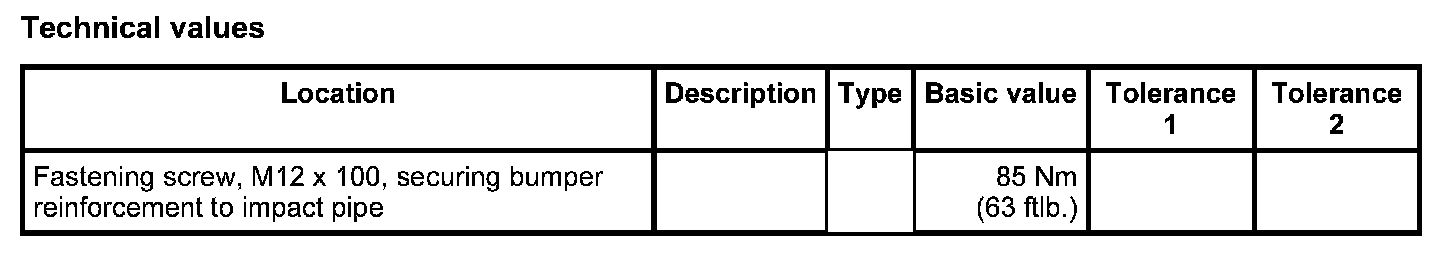

Technical values







Preliminary work

Remove front apron. Refer to Removing and installing front apron.

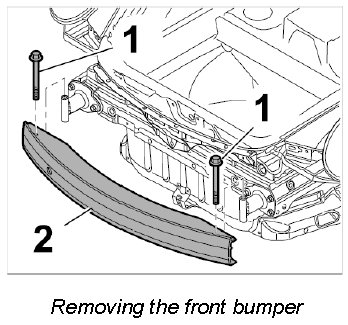

Removing front bumper







1. Unscrew fastening screws -1- and remove bumper -2-.

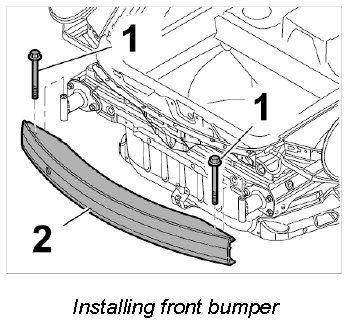

Installing front bumper

1. Position bumper -2-.







2. Screw in fastening screws -1- and tighten to the specified tightening torque. Tightening torque: 85 Nm (63 ftlb.)

Subsequent work

Install front apron. Refer to Removing and installing front apron.
