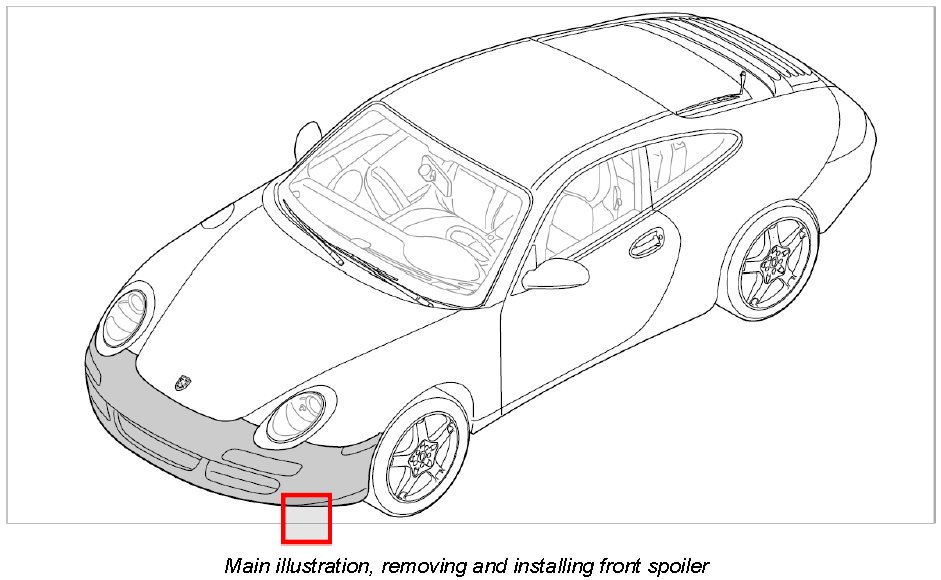

Removing and Installing Front Apron

Removing And Installing Front Apron

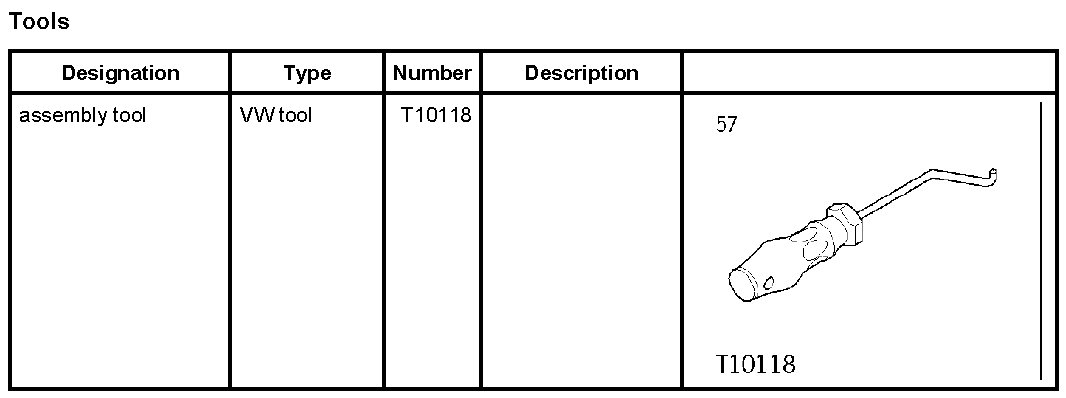

Tools

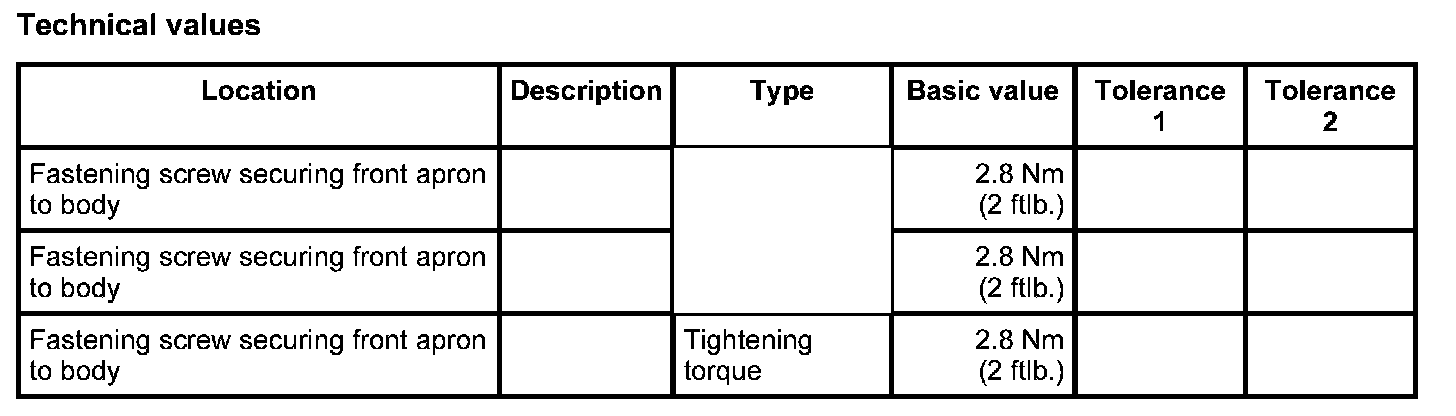

Technical values







Preliminary work

1. Remove cover for front lock support. Refer to Removing and installing cover for front lock support.
2. Remove front part of front wheel housing liner at the left and right. Refer to Removing and installing front wheel housing liner.

Removing front apron

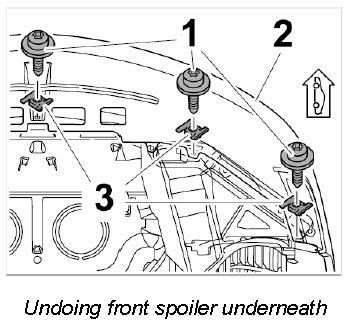

Undoing front spoiler underneath







1. Unscrew fastening screws -1- underneath the front spoiler -2-.

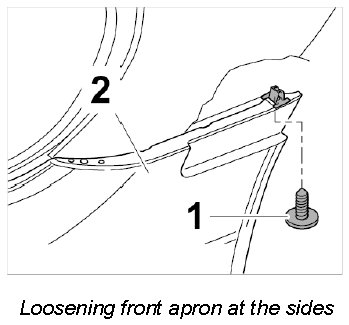

Loosening front apron at the sides

1. Unscrew fastening screws -1- at the sides of the front apron -2-.

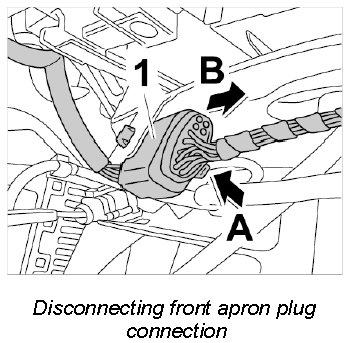

Disconnecting front apron plug connection

1. Release front apron plug connection -1- in the right wheel housing area -arrow A- and disconnect it in -direction of arrow B-.

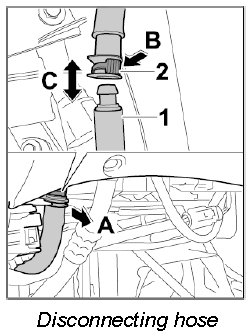

Disconnecting hose for headlight cleaning system

INFORMATION:
- Only for vehicles with headlight cleaning system.
- A tight hose can be pulled off more easily if it is heated with a hot-air gun.
- Collect windscreen washer system fluid with a suitable container.

1. Pull hose -1- out of the body in the left wheel housing area -arrow A-.







2. Release the hose -1- by pressing in the lock -2- (-arrow B-) and disconnect it -arrow C-.

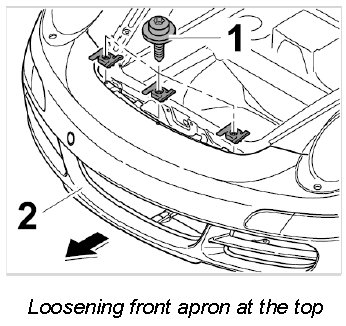

Loosening front apron at the top

1. Secure locking mechanisms -1- with assembly tool T10118 at the guides -2- on the front apron in -direction of arrow-.







2. Unscrew fastening screws -1- at the top of the front apron -2-.







3. Remove front apron -2- by pulling it forward -arrow-.

Installing front apron

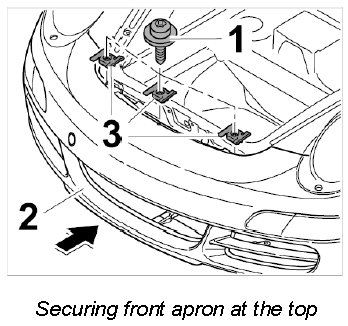

Securing front apron at the top

INFORMATION: Ensure water and electrical lines are laid properly.

1. Check retaining strip for front apron and replace it if necessary. Refer to Removing and installing front retaining strip.
2. Check speed nuts -3- and replace them if necessary.
3. Position the front apron -2- on the body at the front.







4. Secure front apron -2- at the top using the fastening screws -1-. Tightening torque: 2.8 Nm (2 ftlb.)

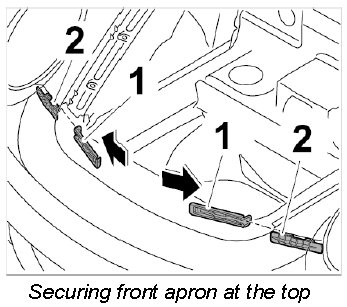

5. Insert locking mechanisms -1- at the guides -2- of the front apron and lock in -direction of arrow- using a plastic wedge.

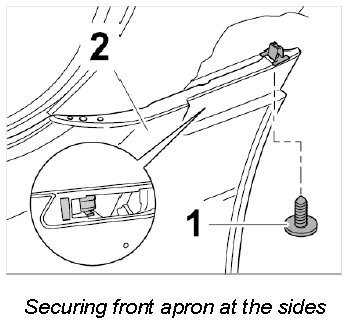

Securing front apron at the sides

1. Tighten fastening screws -1- at the sides of the front apron -2-. Tightening torque: 2.8 Nm (2 ftlb.)

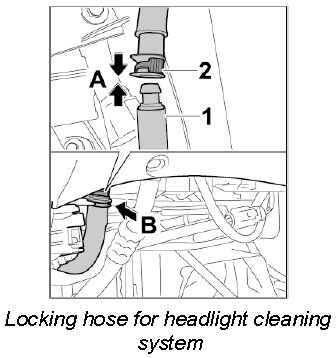

Locking hose for headlight cleaning system

INFORMATION: Only for vehicles with headlight cleaning system.

1. Connect the hose -1- (-arrows A-) until the lock -2- engages securely.







2. Press hose -1- into the body in the left wheel housing area -arrow B-.

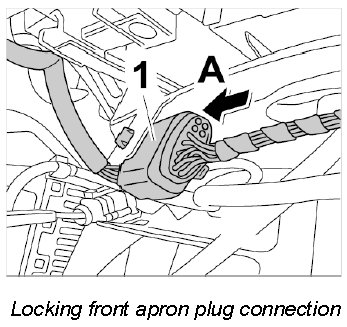

Locking front apron plug connection

1. Connect the front apron plug connection -1- in the right wheel housing area -arrow A- until it engages securely.

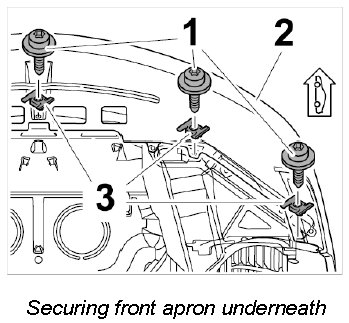

Securing front apron underneath

1. Secure front apron -2- underneath using the fastening screws -1-. Tightening torque: 2.8 Nm (2 ftlb.)







2. Check gap dimensions at the front lid, wing and main headlights. Loosen fastening screws if necessary and adjust gap dimensions by moving the front apron. Refer to Diagram - body gap dimensions

Subsequent work

1. Install front part of front wheel housing liner at the left and right. Refer to Removing and installing front wheel housing liner.
2. Install cover for front lock support. Refer to Removing and installing cover for front lock support.
