Bell Housing: Service and Repair

WM 324319 Removing and installing converter housing





Preliminary work

Preliminary work





1. Remove automatic transmission.

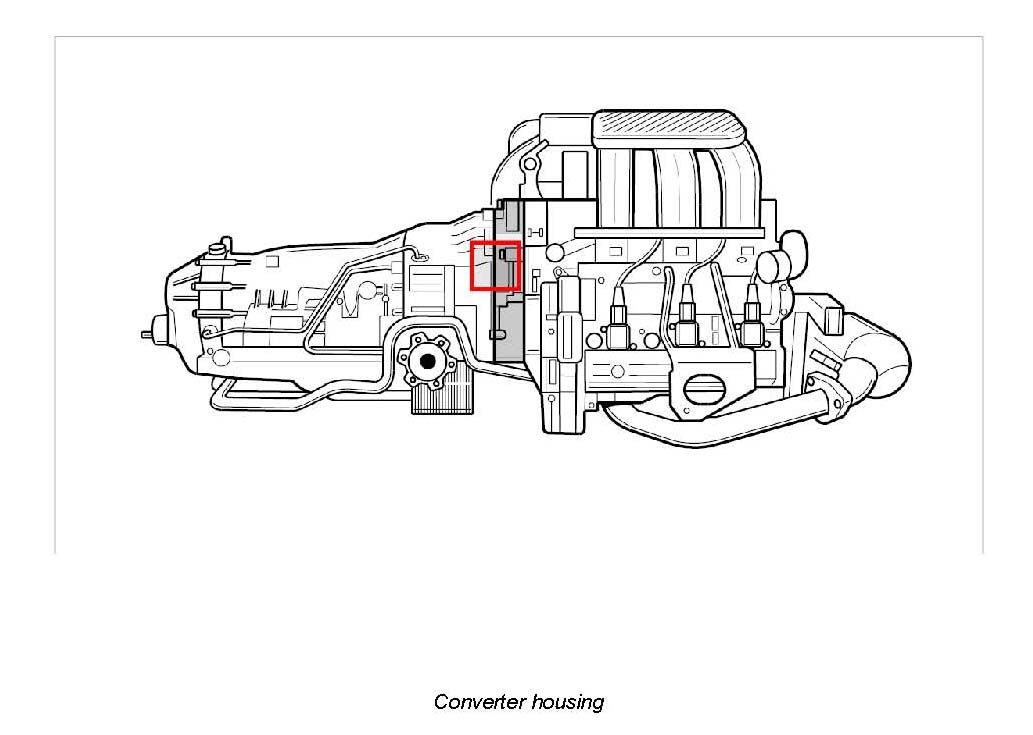

Removing converter housing

Removing converter housing

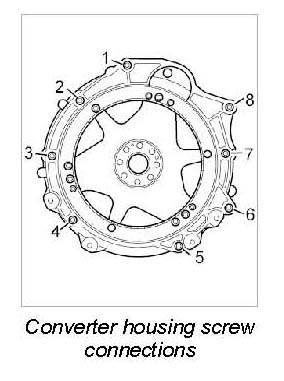

1. Unscrew connecting screws between converter housing and engine -1 to 8- and remove converter housing.





Installing converter housing

Installing converter housing

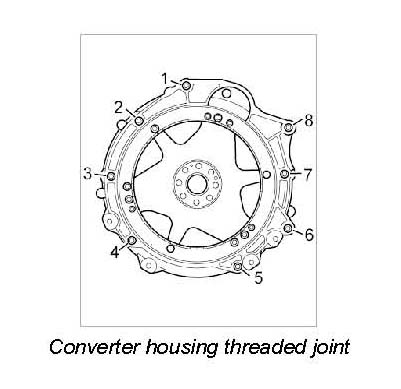

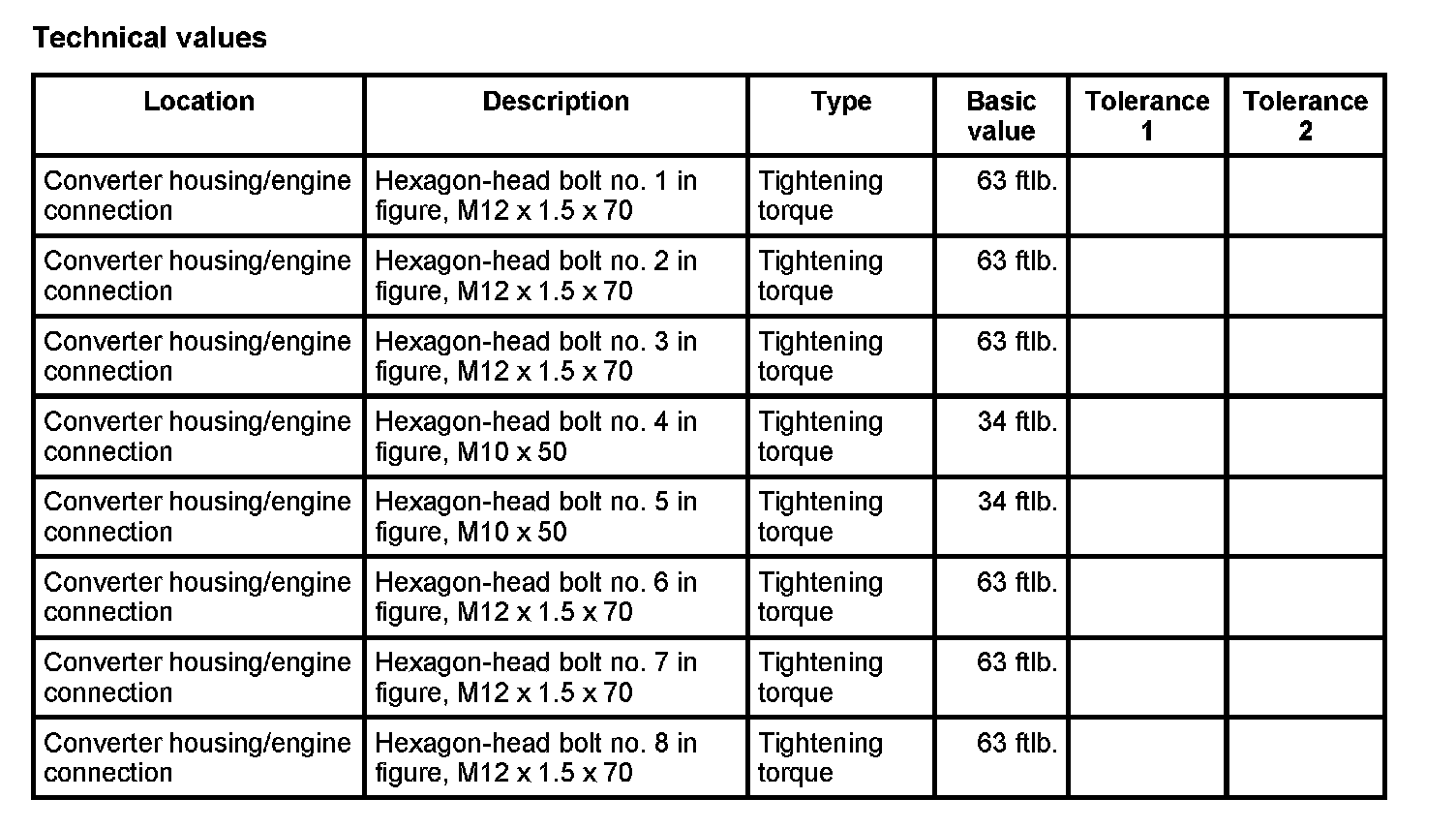

1. Position converter housing and screw in connecting screws -1 - 8- .








Subsequent work

Subsequent work
1. Refit automatic transmission.
