Checking Brake Fluid Level

WM 470801 Checking brake fluid level

Checking brake fluid level

Checking brake fluid level

Note:
^ Observe brake fluid quality. Use only new DOT 4 brake fluid.
^ This brake fluid is available under the following part numbers: Container quantity: 1 liter = 000.043.203.66. 30 liters = 000.043.203.67.

The brake fluid level in the reservoir must be between the MIN and MAX markings.

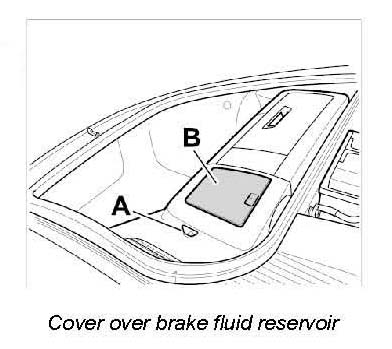

- Disengage and remove cover over brake fluid reservoir -B-. Check brake fluid level.

-A- - Viewing window for brake fluid level (MIN marking only)
-B- - Cover
