Exhaust Pipe: Service and Repair

Removing and Installing Tailpipe

Removing tailpipe - 3.6 l

Removing tailpipe - M 96/05 (3.6 l)

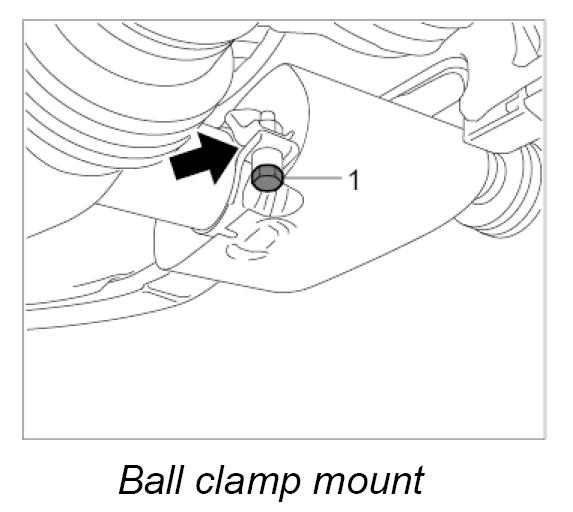

1. Unscrew fastening screw on ball clamp -1-.
2. Widen the ball clamp -arrow- and pull it off tailpipe.

Installing tailpipe - 3.6 l

INFORMATION: Observe specified dimensions for installation position with respect to rear apron.







1. Align tailpipe (installation height) with respect to the rear apron.
- Distance from back of rear apron: 28 mm -B-
- Distance from side of rear apron: Align in the middle

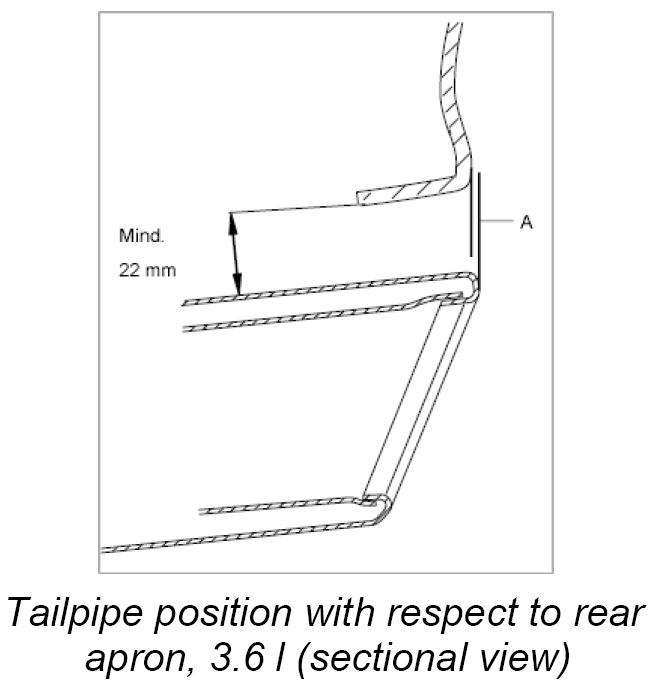

2. Align tailpipe with respect to the rear apron.
- Distance from inside of rear apron: at least 22 mm
- Upper edge of tailpipe flush with rear apron -A-.

If the engine mountings (hydraulic mount) are replaced, the installation dimensions will change as follows due to the shifting behaviour of the mountings:
- Distance from back of rear apron: 25.5 mm
- Distance from inside of rear apron: 19.5 mm
