Rear Fender Liner: Service and Repair

Removing And Installing Rear Wheel Housing Liner






Preliminary work
Remove wheel. Refer to Removing and installing wheel - removing

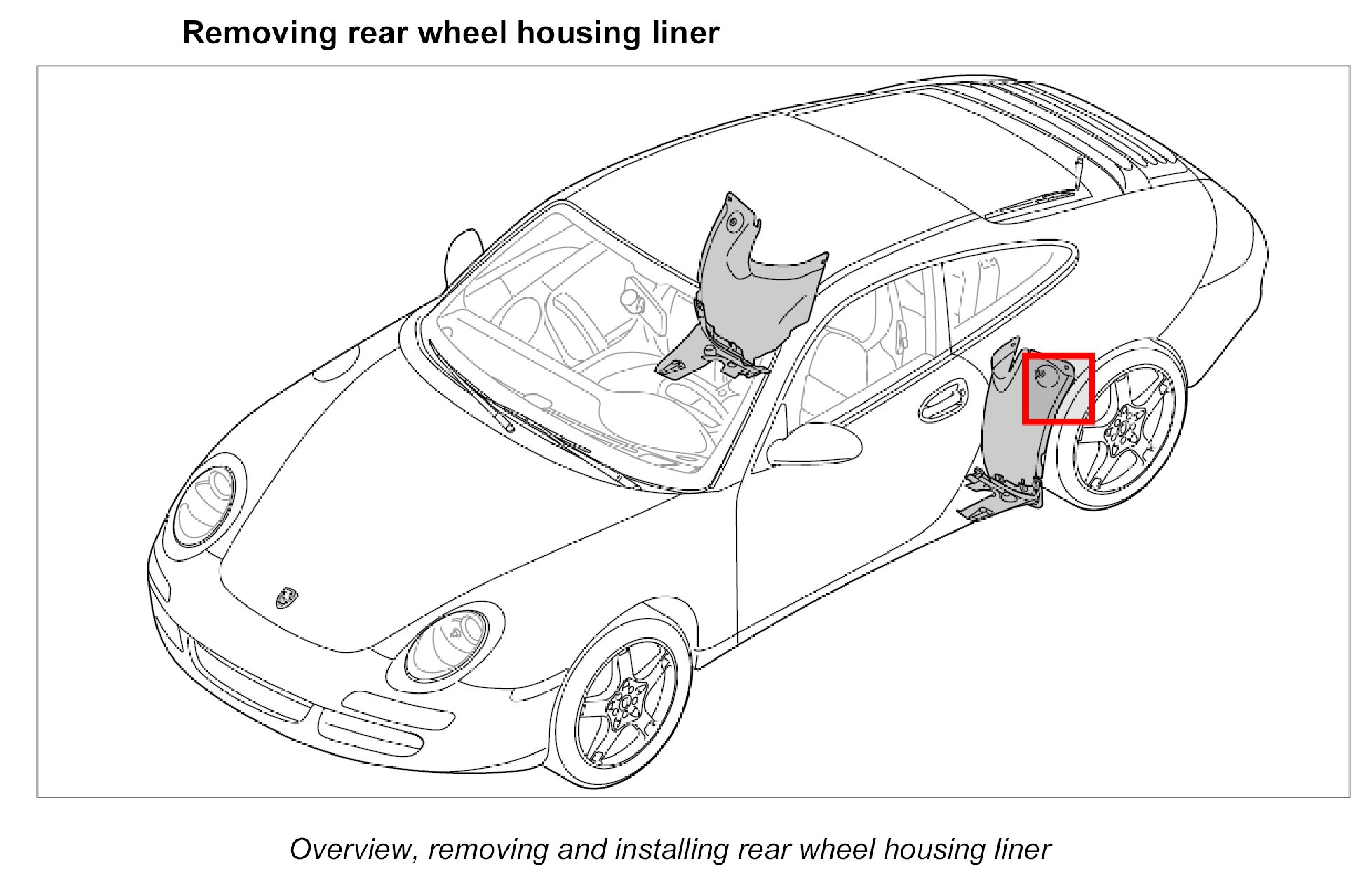

Removing rear wheel housing liner






NOTE: Fastening nuts cannot be used again following removal.

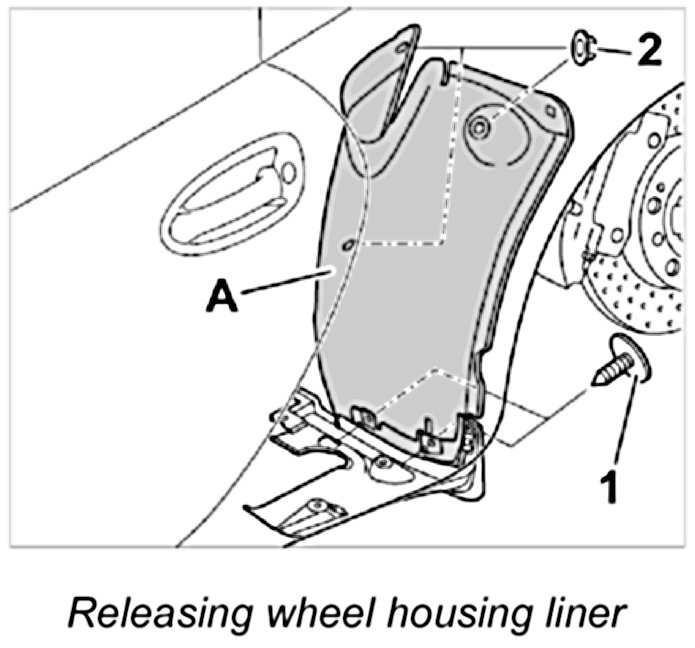

1. Unscrew fastening screws -1- and fastening nuts -2-.







2. Remove wheel housing liner -A-.

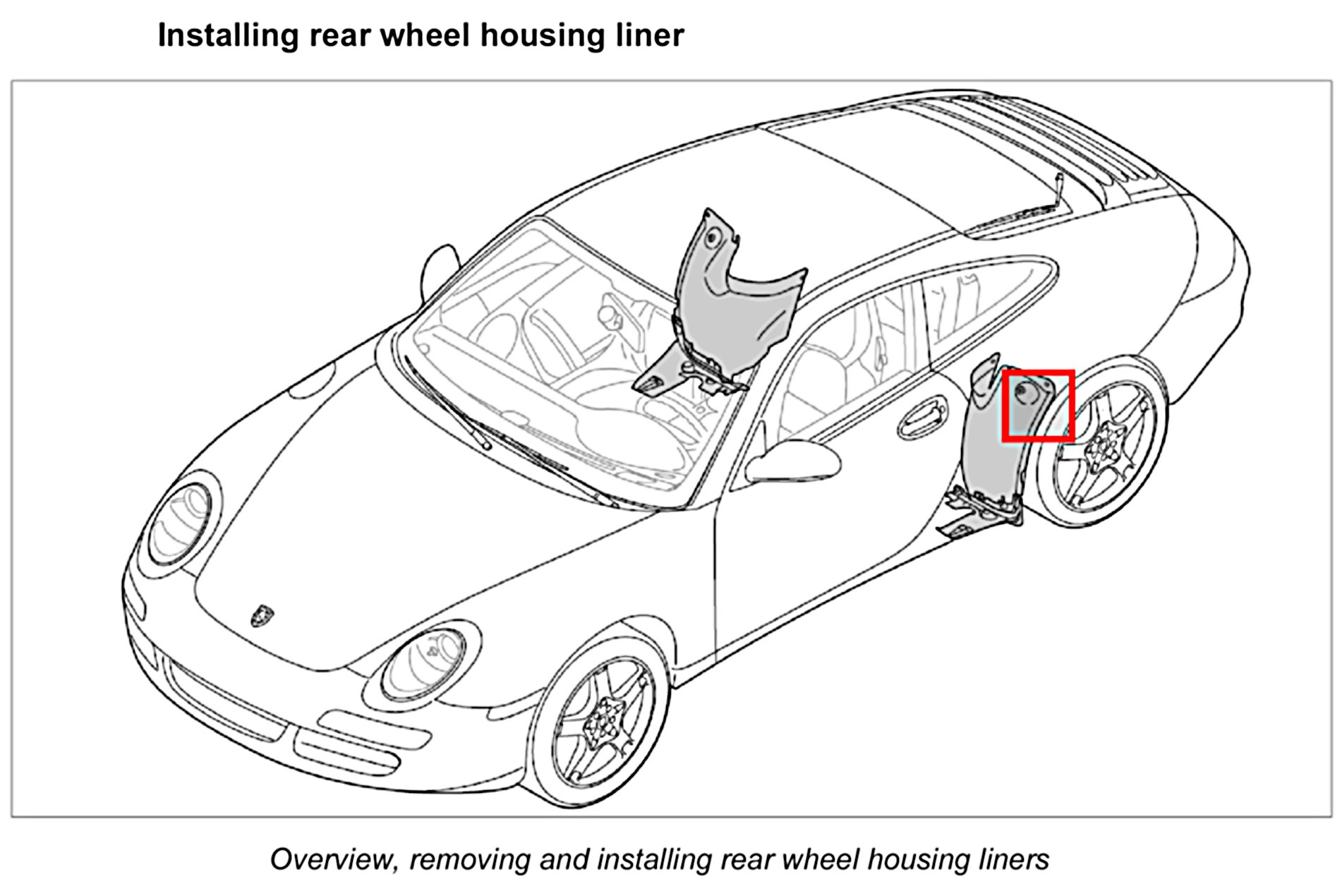

Installing rear wheel housing liner

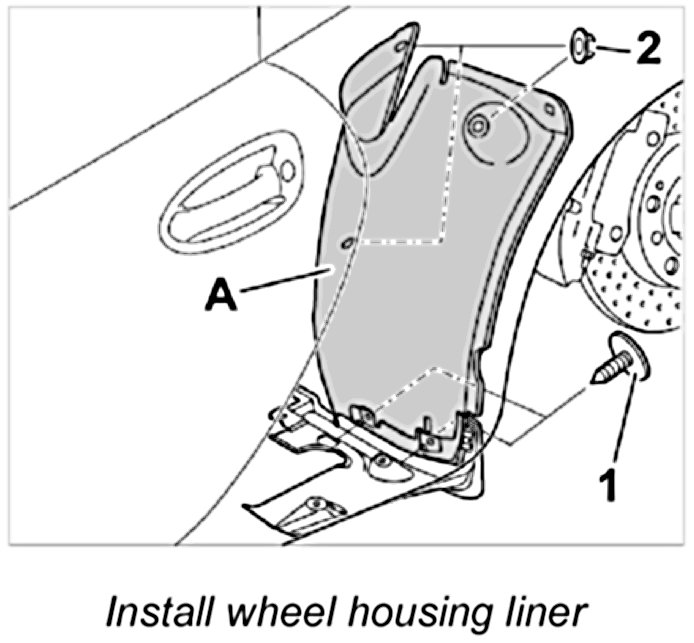

1. Insert wheel housing liner -A-.






2. Screw in fastening screws -1- and tighten them to the specified tightening torque.

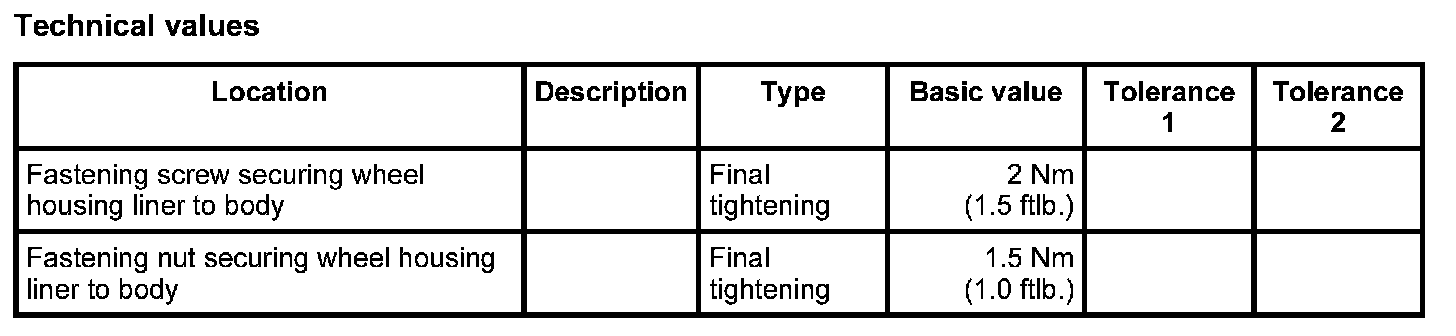

Final tightening: 2 Nm (1.5 ftlb.).

3. Screw on fastening nuts -2- and tighten them to the specified tightening torque.

Final tightening: 1.5 Nm (1.0 ftlb.).

Subsequent work

Reworking
Install wheel. Refer to Removing and installing wheel - installing
