Access Cover: Service and Repair

Removing And Installing Trim Panel For Convertible Top Rest

Preliminary work

Move convertible top to service position. Refer to IN -Convertible top in service position

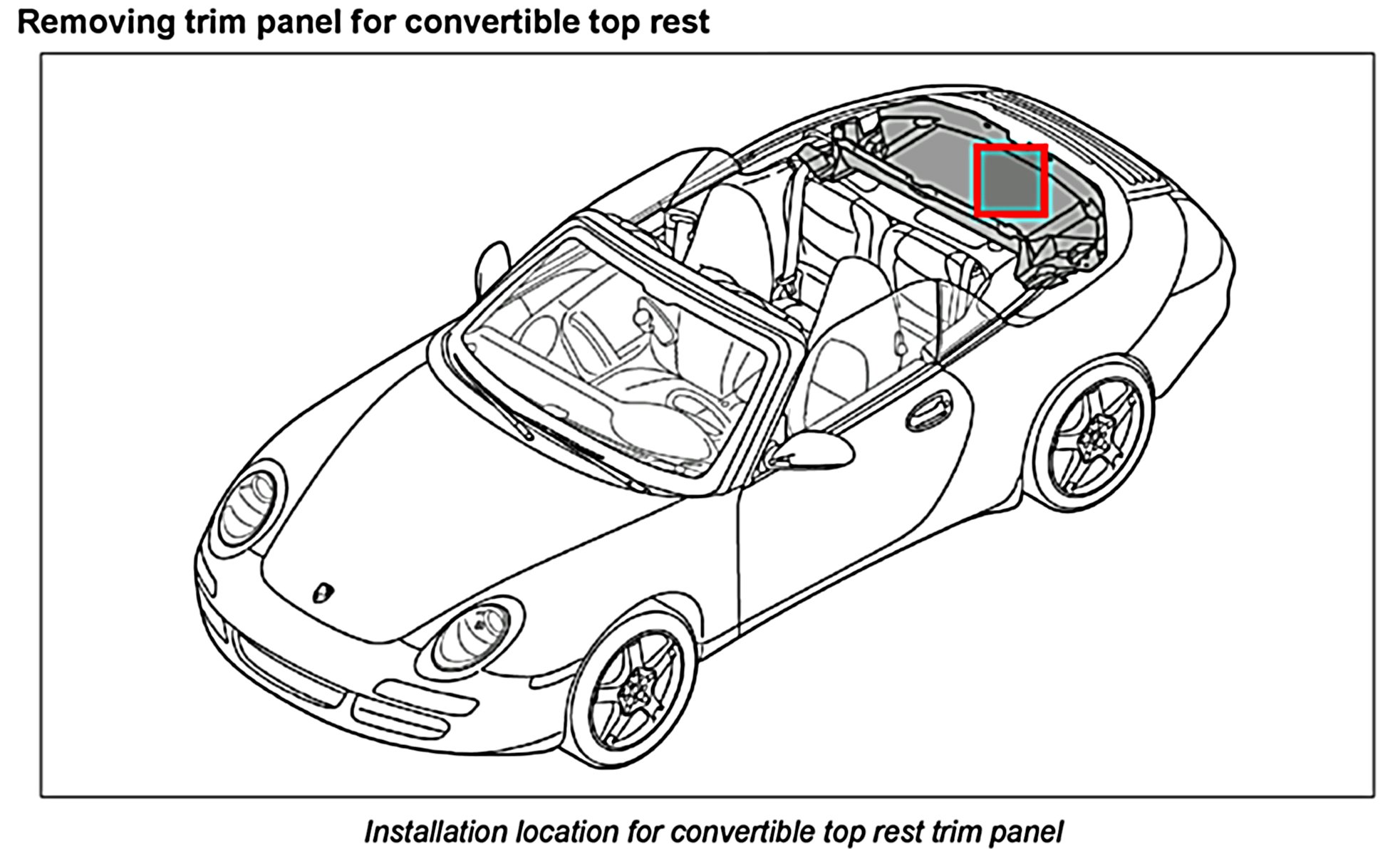

Removing trim panel for convertible top rest






1. Unclip fixing clips -1-. Fold together trim panel for convertible top rest -2- somewhat and take up and out.

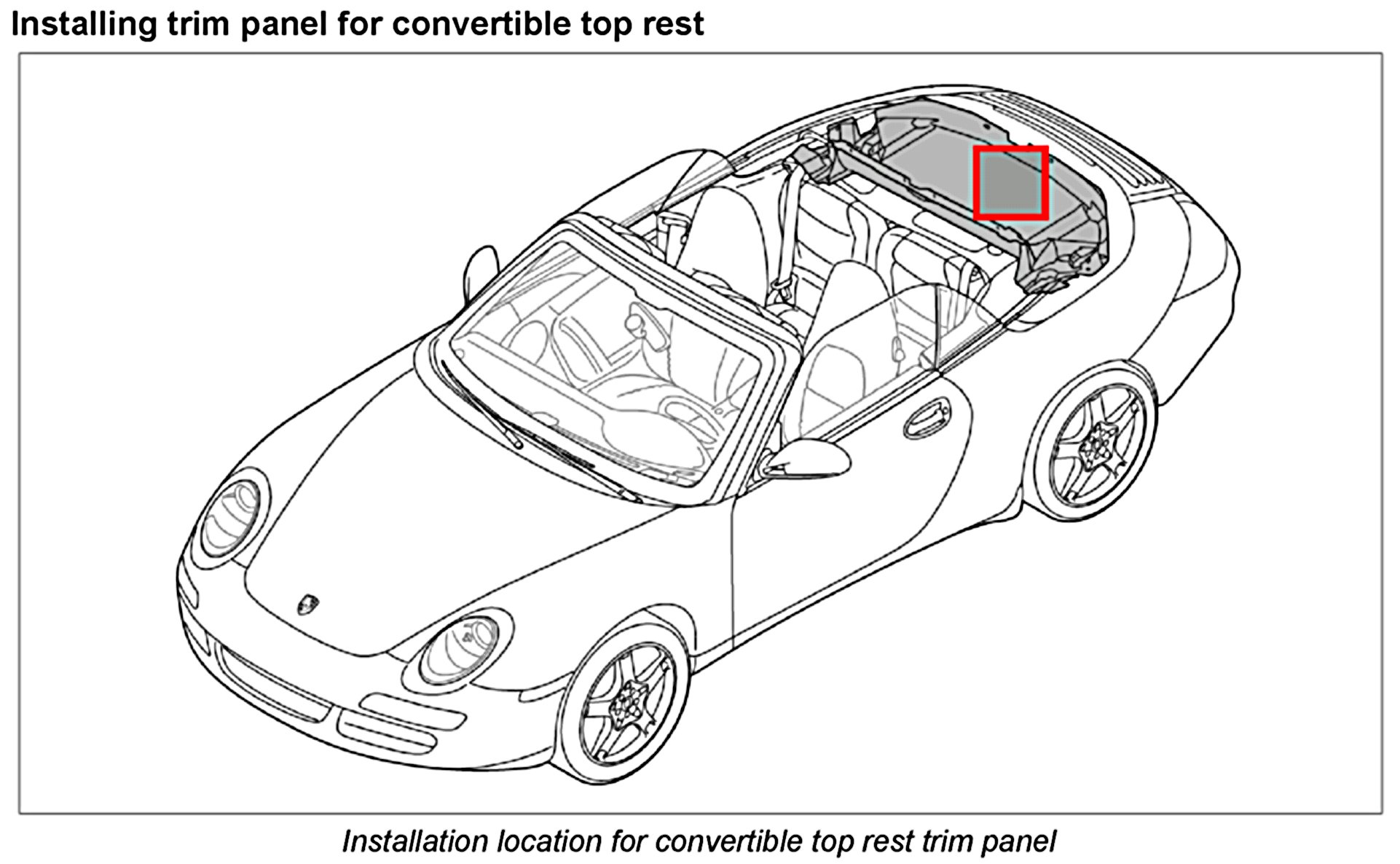

Installing trim panel for convertible top rest

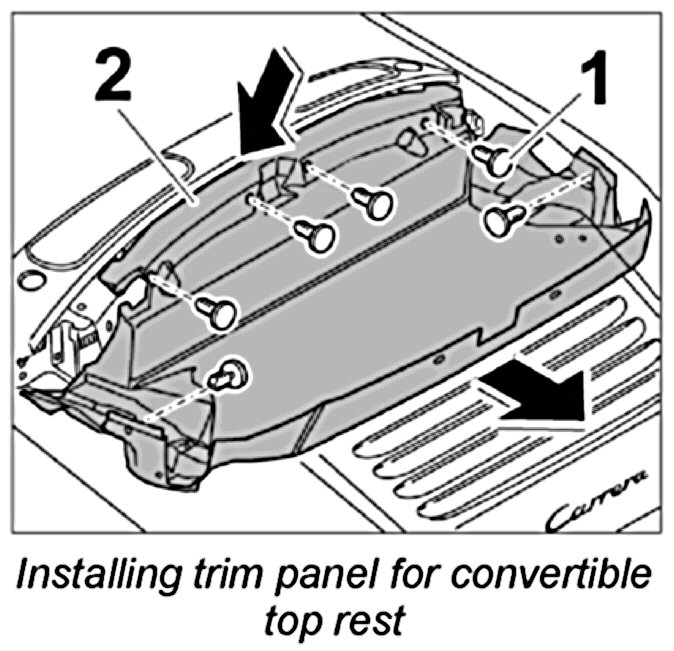

1. Position and align trim panel for convertible top rest -2-.






2. Press in fixing clips -1-.
3. End convertible top service position.
