Removing and Installing Air Guide In Luggage Compartment

Removing And Installing Air Guide In Luggage Compartment

Preliminary work

Preliminary work for air guide in luggage compartment

INFORMATION:
- Depending on which part of the air guide is to be removed, the following preliminary work must be carried out.
- The air guide is only installed in connection with I No. 575.







Removing air guide in luggage compartment

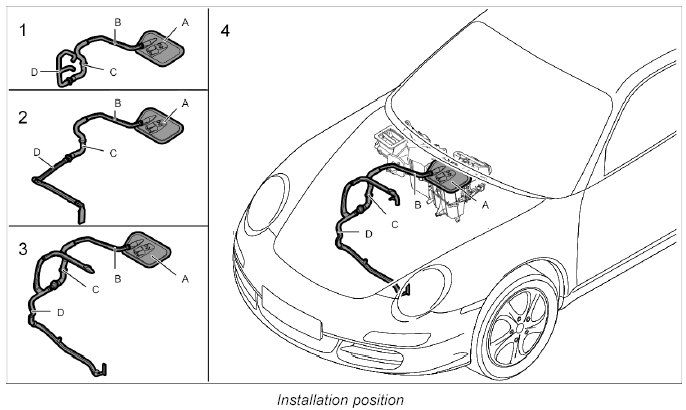

Air guide A for heater/air-conditioning unit







1. Pull off port plate from the body.







2. Unscrew fastening screw -1- for the air guide -A- and pull the air guide out of the heater/air-conditioning unit.


Air guide B, plenum panel air guide







1. Unclip cable holder from the air guide.
2. Pull air guide -B- out of air guide -A- and then out of air guide -C-.

Air guide C, bulkhead air guide







3. Pull air guide -C- out of connection -D-.
4. Twist air guide -C- and pull down and out of the body.

Air guide D, luggage compartment air guide for DVD navigation with carbon canister and with CD autochanger







5. Unscrew fastening screw -2- for the air guide at the CD autochanger support.
6. Pull air guide -D- out of the connection.

Air guide D, luggage compartment air guide for DVD navigation without carbon canister and with CD autochanger







7. Pull fastening plug -3- out of the luggage compartment.
8. Pull air guide -D- out of the connection.


Air guide D, luggage compartment air guide for DVD navigation without carbon canister and without CD autochanger







9. Pull fastening plug -3- out of the luggage compartment.
10. Pull air guide -D- out of the connection.

Air guide D, luggage compartment air guide for booster







11. Unscrew the fastening nuts -4- securing the air guide for the booster.
12. Remove booster air guide -D- from the body and pull out of the upper air guide.
13. Pull upper part of booster air guide -D- out of the connection to the plenum panel.

Air guide D, luggage compartment air guide for booster for Row version







14. Unhook component holder and remove.
15. Pull air guide -D- out of connection piece and remove.

Installing air guide in luggage compartment

Air guide D, luggage compartment air guide for booster for RoW version







1. Connect air guide -D- to the adapter.
2. Insert component holder and hook in air guide -D-

Air guide D, luggage compartment air guide for booster







3. Insert upper part of booster air guide -D- into the connection to the plenum panel.
4. Route booster air guide -D- around the body and insert into the upper air guide.
5. Screw down the air guide -D- for the booster using the two fastening screws -4-.

Air guide D, luggage compartment air guide for DVD navigation without carbon canister and without CD autochanger







6. Connect the air guide -D- to the connection.
7. Secure air guide -D- to the body with the fastening plug -3-

Air guide D, luggage compartment air guide for DVD navigation without carbon canister and with CD autochanger







8. Connect the air guide -D- to the connection.
9. Secure air guide -D- to the body with the fastening plug -3-.


Air guide D, luggage compartment air guide for DVD navigation with carbon canister and with CD autochanger







10. Connect the air guide -D- to the connection.
11. Screw down air guide -D- to the CD autochanger support with the fastening screw -2-.

Air guide C, bulkhead air guide







12. Slide air guide -C- into the opening in the body from below and position correctly by turning.
13. Insert air guide -C- into the connection -D-.

Air guide B, plenum panel air guide







14. Position air guide -B- and insert into the air guide -A- and -C-.
15. Clip cable holder into the air guide.


Air guide A, heater/air-conditioning unit







16. Press air guide -A- into the heater/air-conditioning unit, clip in place and screw down using the fastening screw -1-.
17. Press down seal for port plate firmly and evenly all round.

Subsequent work

Subsequent work for air guide in luggage compartment
