Side Panel Trim

703519 Removing And Installing Footrest

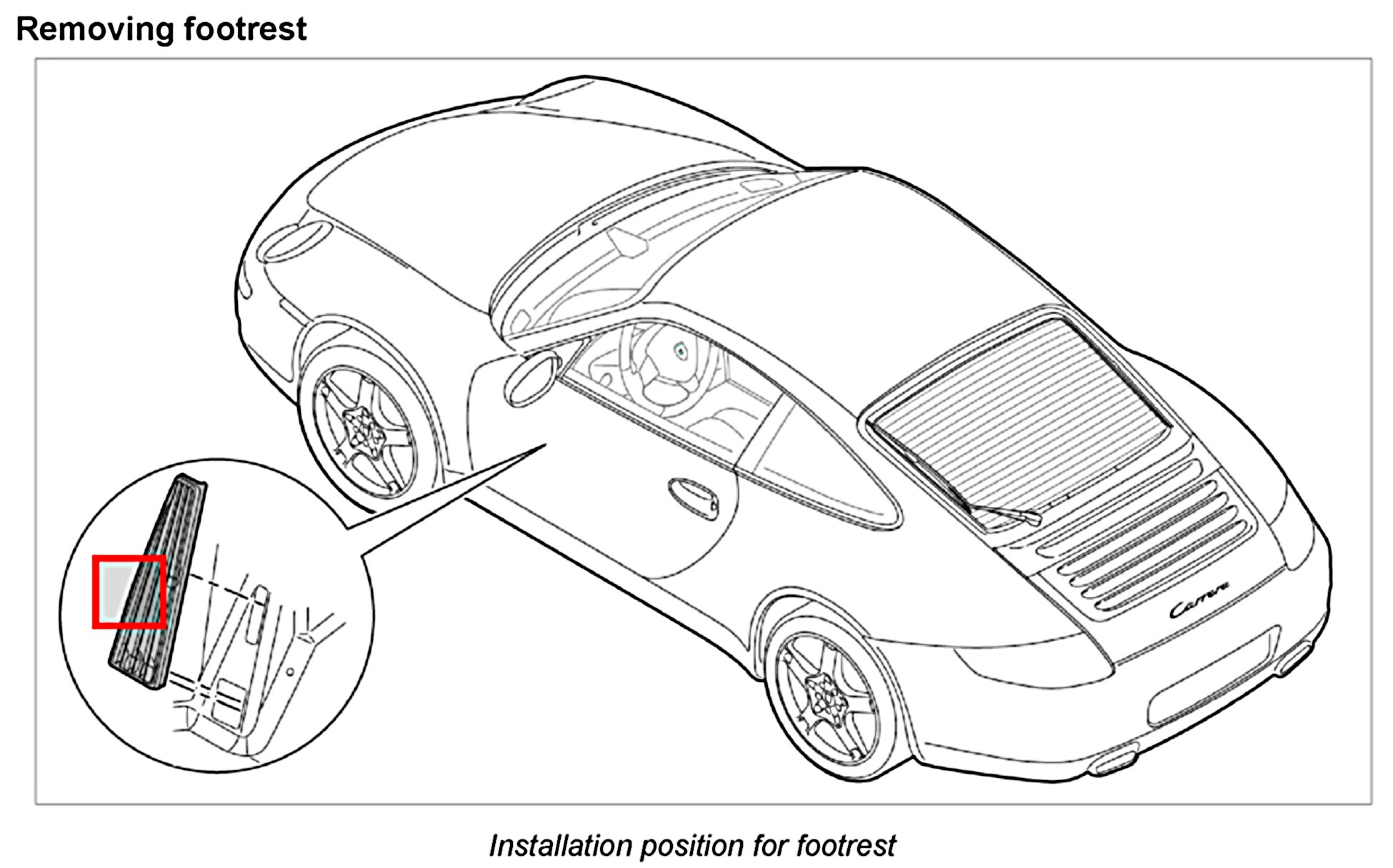

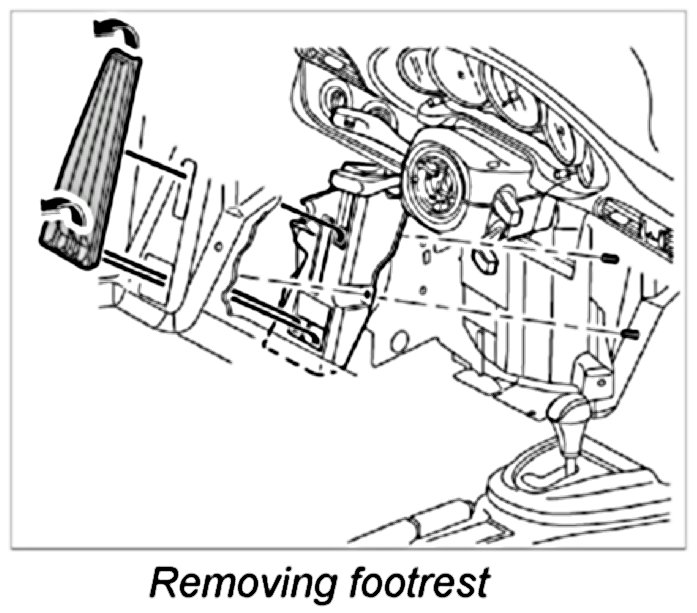

Removing footrest






1. Carefully pull out footrest by hand from above and remove.

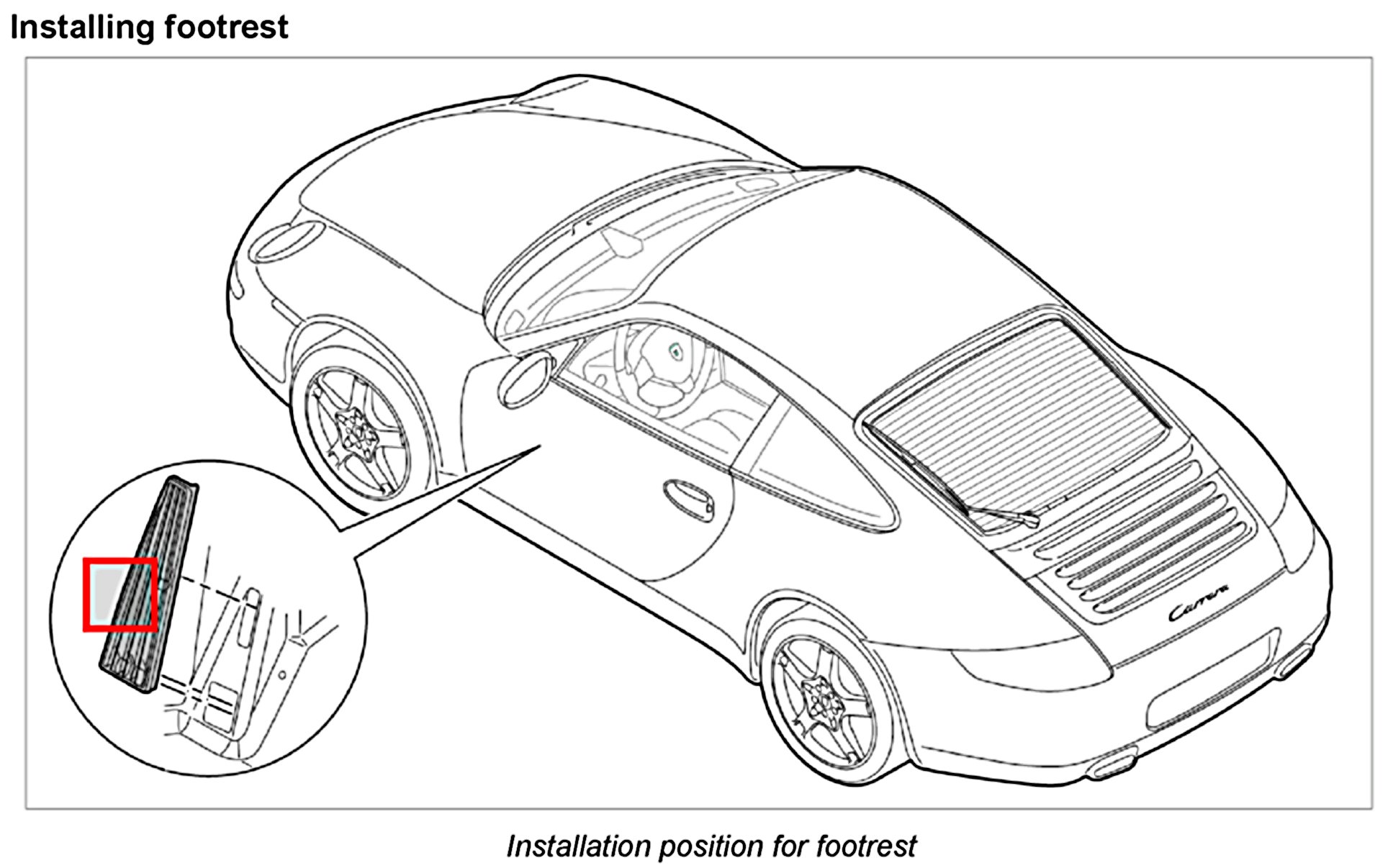

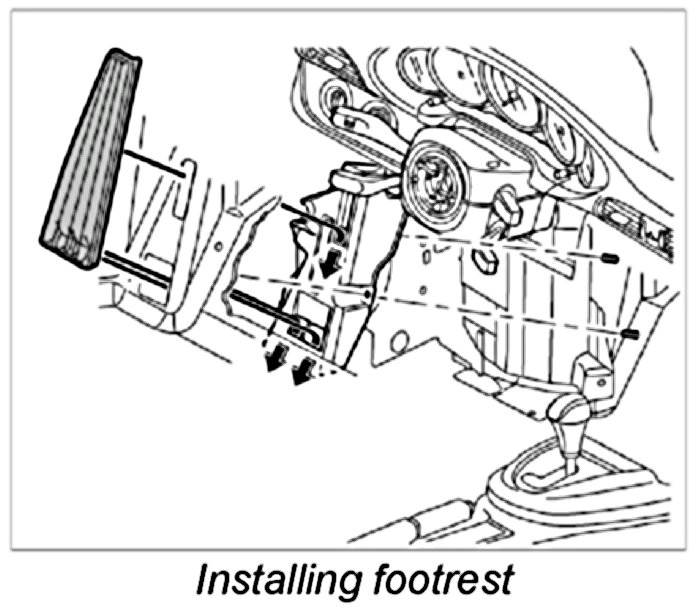

Installing footrest






1. Position footrest with the three locking tabs and carefully engage.
