Cigarette Lighter: Service and Repair

Removing And Installing Cigar Lighter

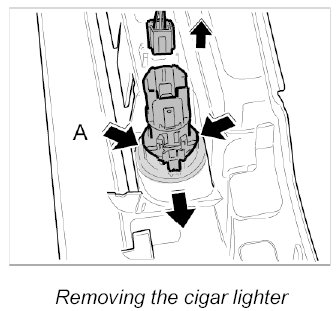

Removing cigar lighter

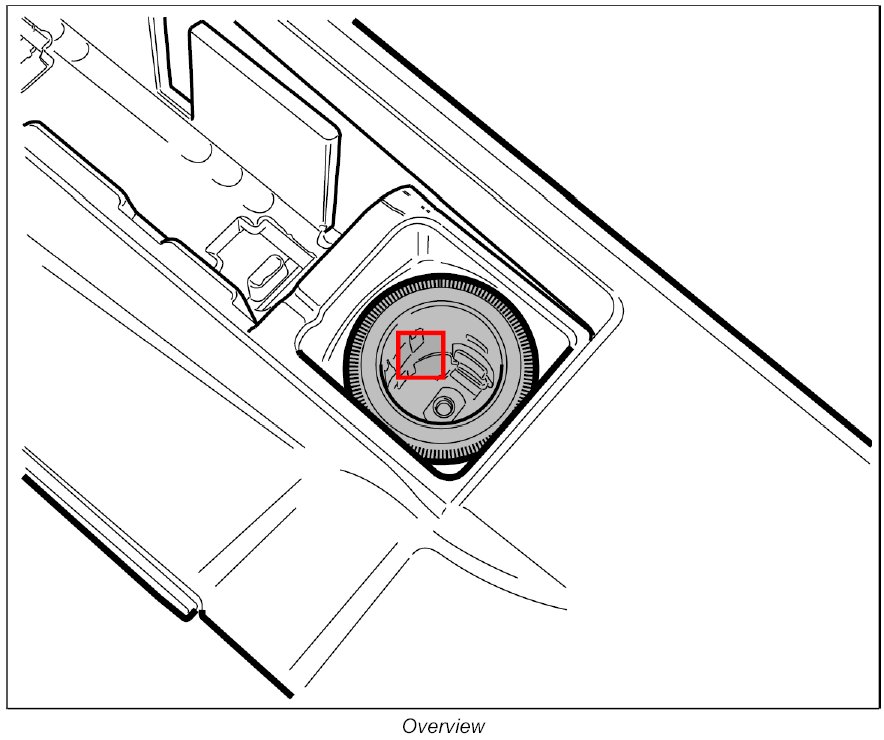

The cigar lighter is located in the center console behind the ashtray.







1. Disconnect the electrical plugs.
2. Press together the locks -A- and push out the cigar lighter out of the center console.

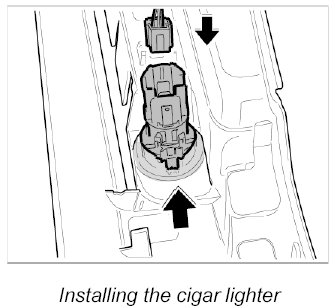

Installing cigar lighter







1. Push in the cigar lighter into the center console until the cigar lighter clicks into place in the center console.
2. Connect the electric plug.
