Headliner: Service and Repair

708519 Removing And Installing Rear Roof Lining

Removing rear roof lining

Removing rear roof trim panel

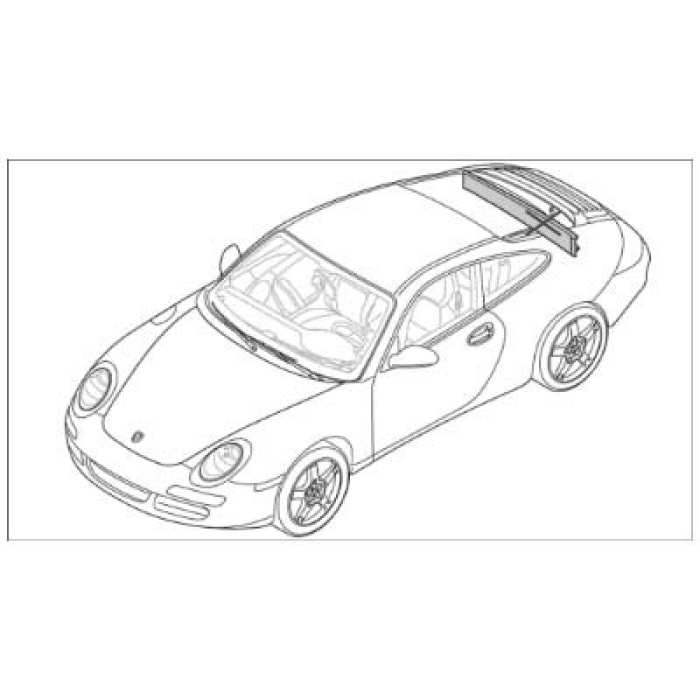

Installation location of rear roof trim panel:

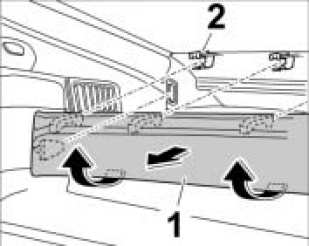

Removing rear roof trim panel:

1. Grasp underneath the roof trim panel -1- at the side and, pulling in -direction of arrow-, carefully remove it from the cable clamps -2-.

Installing rear roof lining

Installing rear roof trim panel

Installation location of rear roof trim panel:

Information
- Cable clamps -2- must always be replaced when the roof trim panel is removed.
- If cable clamps are not replaced, this can cause noises in the roof trim panel when driving.

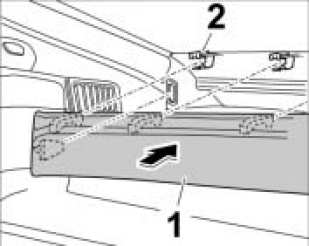

Installing rear roof trim panel:

1. Position roof trim panel -1- and press into place in -direction of arrow- ensuring that the pegs engage audibly in the cable clamps -2-.
